Steps

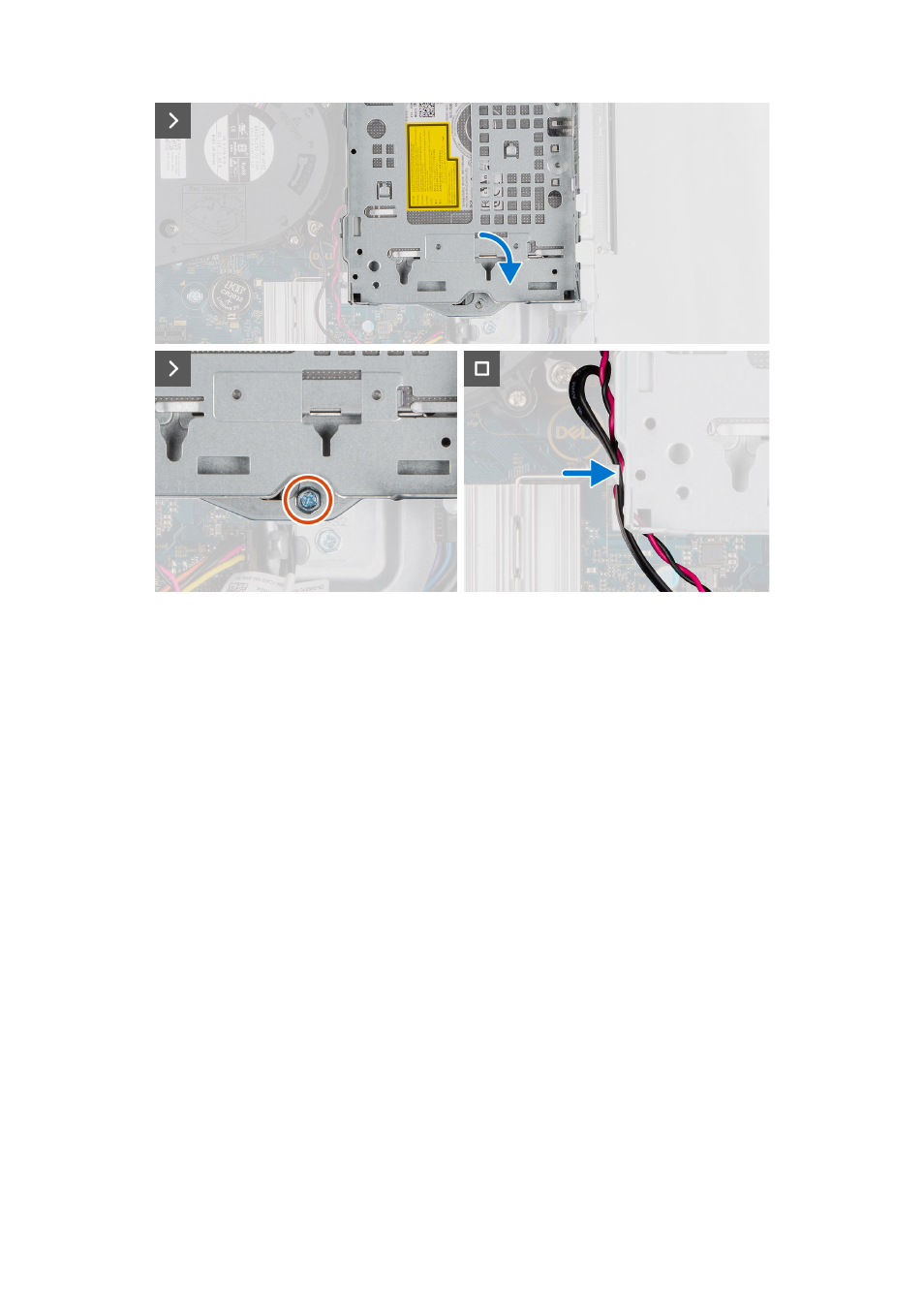

1. Place the disk-drive cage upside down on the chassis.
2. If the optical drive is installed, connect the data and power cable to the connectors on the optical drive.
3. Hold the disk-drive cage upright and align the mounting points on the disk-drive cage with the slots on the chassis.
4. Align the screw hole on the cage with the screw hole on the chassis.
5. Install the single (6-32) screw to secure the disk-drive cage in place.
6. If the optical drive is installed, route the power and data cables through the routing guide on the disk-drive cage.
Next steps
1. Install the 3.5-inch hard drive if applicable.
2. Install the 2.5-inch hard drive if applicable.
3. Install the front bezel .
4. Install the side cover .
5. Follow the procedure in After working inside your computer .
Optical drive
Removing the optical drive
Prerequisites
1. Follow the procedure in Before working inside your computer .
2. Remove the side cover .
3. Remove the front bezel .
4. Remove the 2.5-inch hard drive if applicable.
5. Remove the 3.5-inch hard drive if applicable.
6. Remove the disk-drive cage .
52 Removing and installing Customer Replaceable Units (CRUs)
