Mounting the inverter
Operating Instructions Powador XP200-HV TL, XP250-HV TL, XP350-HV TL_EN Page 15
Electrician
6 Mounting the inverter
6.1 Selecting the installation location
NOTE
The maximum flow rate of the cooling air is different for each inverter type:
• Powador XP200-HV TL: 4040 m 3 /h
• Powador XP250-HV TL: 4040 m 3 /h
• Powador XP350-HV TL: 5460 m 3 /h
› Keep this value in mind when you select the installation location.
Floor
• The floor must have adequate load-bearing capacity
(a separate, solid basement may be necessary).
• The building material must meet the requirements of buil-
ding material class B1 (“Flame-resistant Building Materials”,
in accordance with DIN EN 13501-1).
• The floor must consist of non-cracked concrete.
Room
• Permanent access to the installation location for installa-
tion and service purposes must be possible.
• The room must provide enough space to work at the inver-
ter in case of maintenance (e.g. exchange of filter mats).
• The room must provide operating conditions according to
the technical specification.
• The necessary amount of cooling air must be available at
the installation location.
• Adequate air circulation through the inverter must be gua-
ranteed. Air inlets and outlets must not be blocked.
• Thermal short circuits must be excluded.

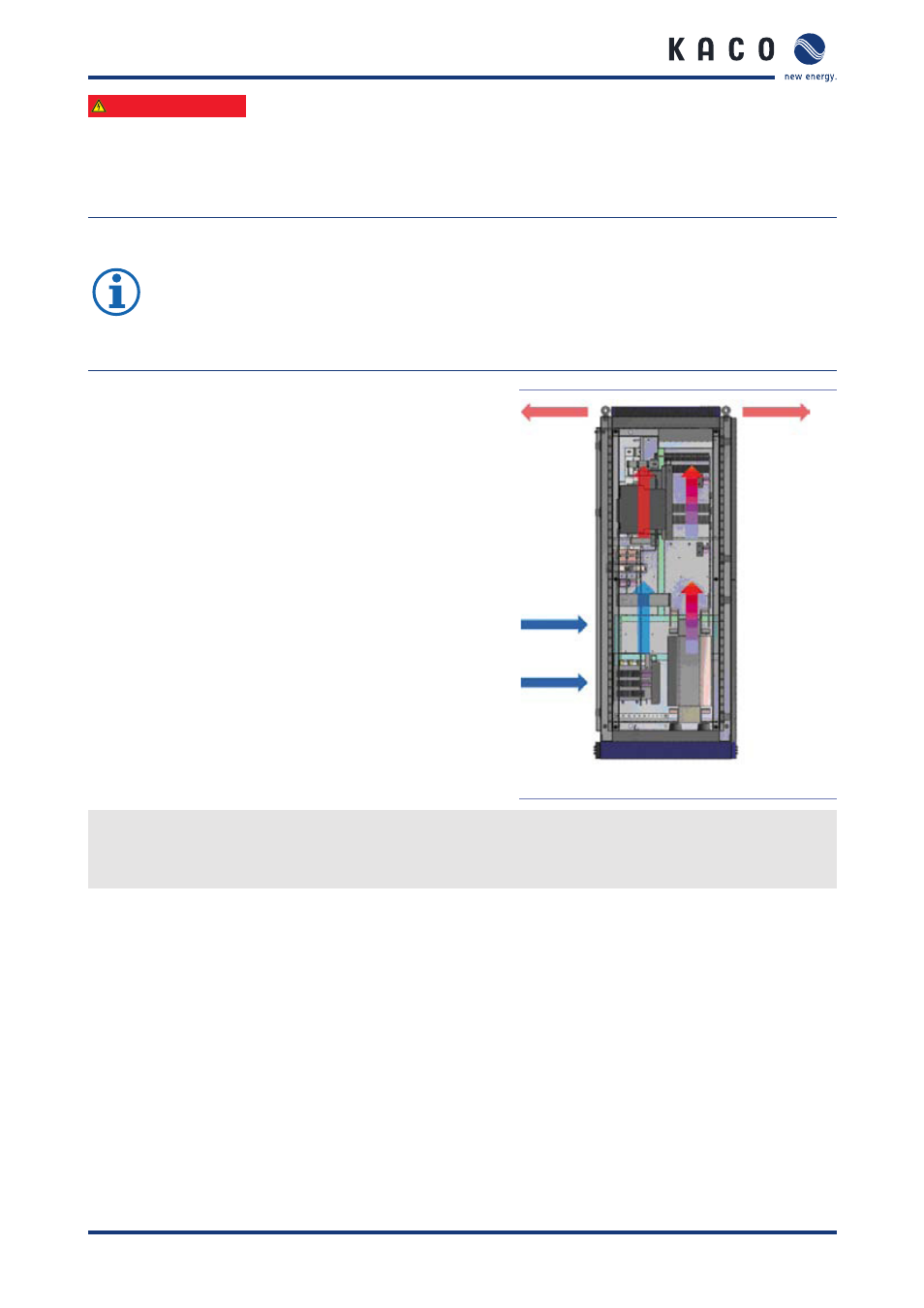

Figure 7: Ventilation for the inverter
" Ensure that all regulations for emergency situations are considered.
" Make sure that the escape routes (according to local requirements) are not blocked in any circumstance.
" Do not install the inverter in a room where there is a risk of explosion.
