Installation
Page 28
Operating Instructions Powador XP200-HV TL, XP250-HV TL, XP350-HV TL_EN
Electrician
7.6.1.2 S0 output
-UDIO
24 V
1b 2b 3b 4b 5b
1a 2a 3a 4a 5a
Signal transceiver
Current limiting
resistor, 4.7 kΩ
GND
Terminal
number
Terminal
designation
Specification
Wire cross- section,
max.
3a
S0
out
N
Max. 27 V,
27 mA
AWG 20
(0.75 mm
2
)
3b
S0
out
P

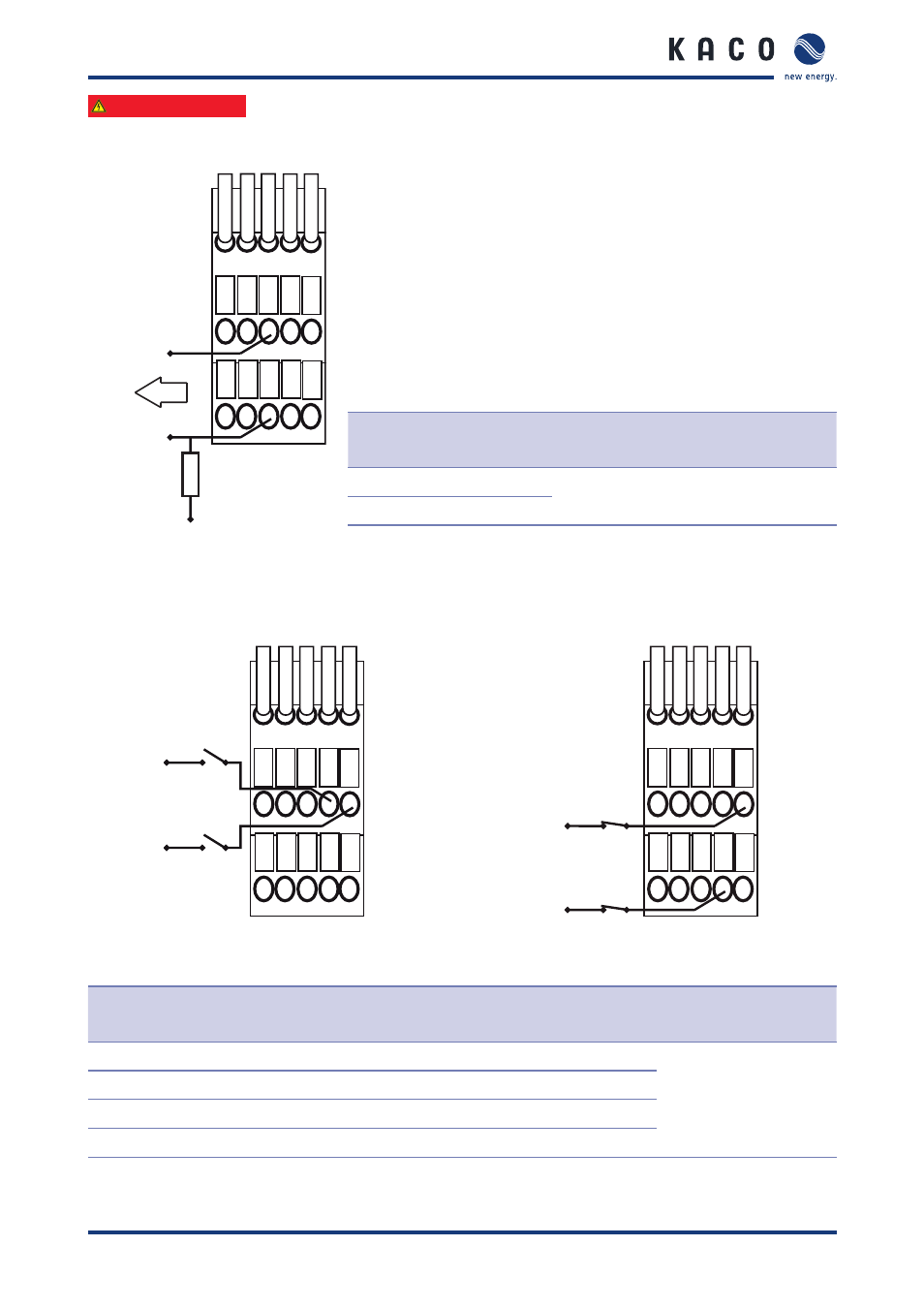

Figure 20: Connection for S0 output
Table 9:
Connections for S0 output
7.6.1.3 Digital output
-UDIO
1b 2b 3b 4b 5b
1a 2a 3a 4a 5a
-UDIO
1b 2b 3b 4b 5b
1a 2a 3a 4a 5a
Figure 21: Connection for digital output (N/O contact)
Figure 22: Connection for digital output N/C contact)
Terminal number
Terminal designation Specification
Wire cross-section,
max.
4a
UDO1 B
Dry contact output B
AWG 20
(0.75 mm
2
)
4b
UDI1 A
Dry contact output A
5a
Reserve
5b
UDI1 C
Dry contact output common
Table 10: Connections for digital user output
