Preassembly
Determining Headstay Length
April 2000 Unit 3.25 MKIII 8
Pin-to-pin headstay length is a measurement which is used in many steps of assembly and also for measuring
sails. After determining the length of your headstay, write the length on the outside back cover of this manual for
easy reference in the future.
“Pin to pin” is measured from the center of the pin
holding the headstay to the masthead toggle to the
center of the pin holding the headstay assembly to
the stemhead chainplate.
Be sure that the turnbuckle is set to the correct length
before measuring. The measurement should include
all turnbuckles and toggles at the lower end, but
should not include the masthead toggle.
All headstays must be secured to a toggle at the
masthead.
■ Additional Stemhead Toggles
Your furling system has an integral toggle at the lower turnbuckle fitting. An
additional toggle is not required at the lower end but may be fitted if the
headstay wire is too short, or if it is desirable to mount the drum higher off
the deck than normal, say to provide more clearance for an anchor.
Should an additional toggle be fitted to the headstay, be sure to subtract the
pin-to-pin length of the toggle from the overall length of the headstay.
Some boats with very narrow bows or with bowsprits may find that the furling
drum, in its normal position, will not fit inside the pulpit. It may be necessary
to use a toggle to raise the drum to avoid these problems.
The system is designed to keep the sail as close to the deck as possible. While it may be necessary to raise the drum
to provide clearance for an anchor or to fit inside a pulpit, do not mount the drum higher than required. Raising the
drum reduces sail luff length and increases heeling. If you need better visibility under your genoa, mount the drum
as low as possible and see the instructions on page 30 of the manual.
Furling units should not be mounted above turnbuckles or long link plates. If you are considering this discuss your
installation carefully with Harken before proceeding.

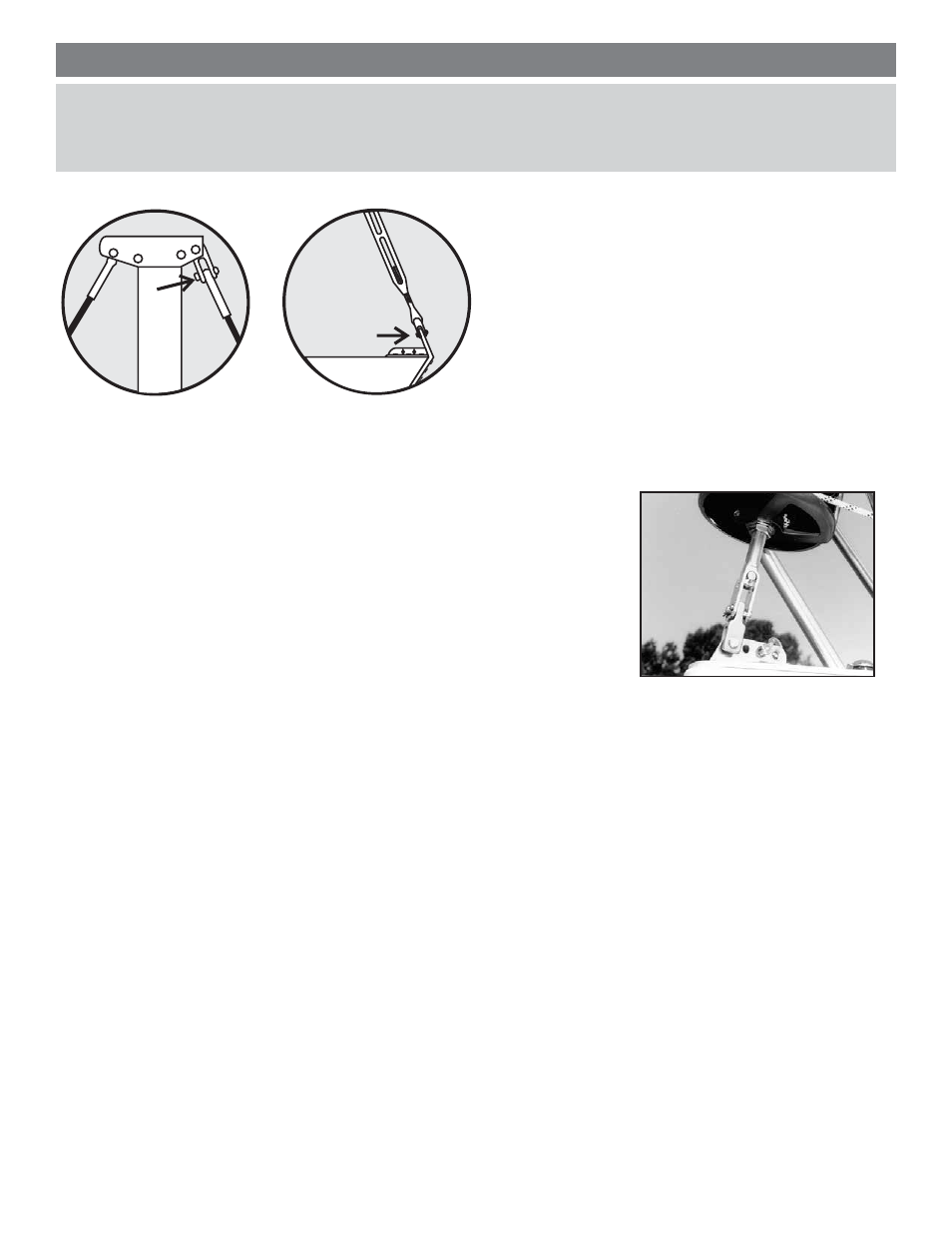

Upper and lower measurement points for headstay length.
Points de mesure supérieur et inférieur.
Oberer und unterer Messpunkt für Verstaglänge.
Punti di misurazione superiore e inferiore dello strallo.
