Assembly
April 2000
Unit 3.25 MKIII
26

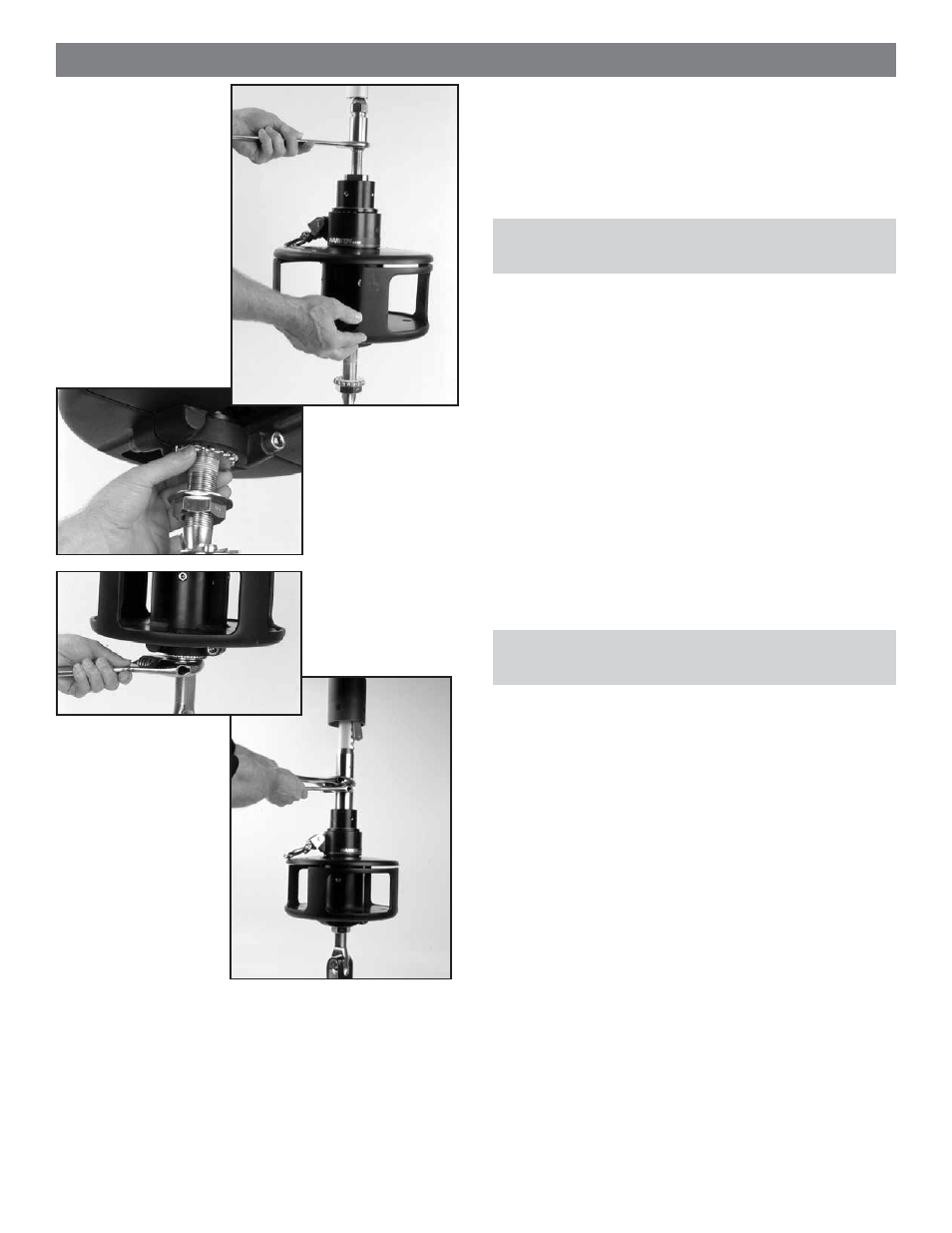

After the headstay is tensioned, align the opening
with the furling line lead by turning the line guard
assembly.
Tip: Adjustments can easily be made to the position
of the openings when installing the furling line.
Slide the notched locking washer up the lower stud until
the notches slip over the three pins on the bottom of
the furling unit. It may be necessary to turn the drum
slightly to align the pins with the notches.
Tip: The locking nut is special. Check to see that it is
on the stud with the “up” arrow facing up.
Slip the restraining washer up the stud until it rests
against the notched locking washer.
Thread the locking nut up the lower stud and tighten
it against the restraining washer with a 1
3
/
4
” (44 mm)
wrench.
Thread the collar up until it touches the terminal body.
Use a 1
1
/
2
" (38 mm) wrench to tighten it firmly against
the terminal while holding the terminal.
