Chapter 3: Installation/Basic Troubleshooting
Install Supplemental Ground Safety Cable (if required)
The Tenor AS provides a supplemental Earth Ground screw (a #6 screw). This screw provides earth
ground to the unit if additional grounding is required. To provide ground via the grounding screw,
you will need to connect the grounding screw to a Ground Safety Cable, which can then be con-
nected to an approved safety earth ground.
Connect the Ground Safety Cable as follows:
1. Unscrew the existing screw from the grounding hole.
2. Place the screw through the ring connector at one end of the ground safety cable.
3. Attach the screw securely to the threaded grounding hole.
4. Connect the other end of the ground safety cable to an approved electrically grounded object. Consult with
a licensed electrician if you are unclear about this operation.

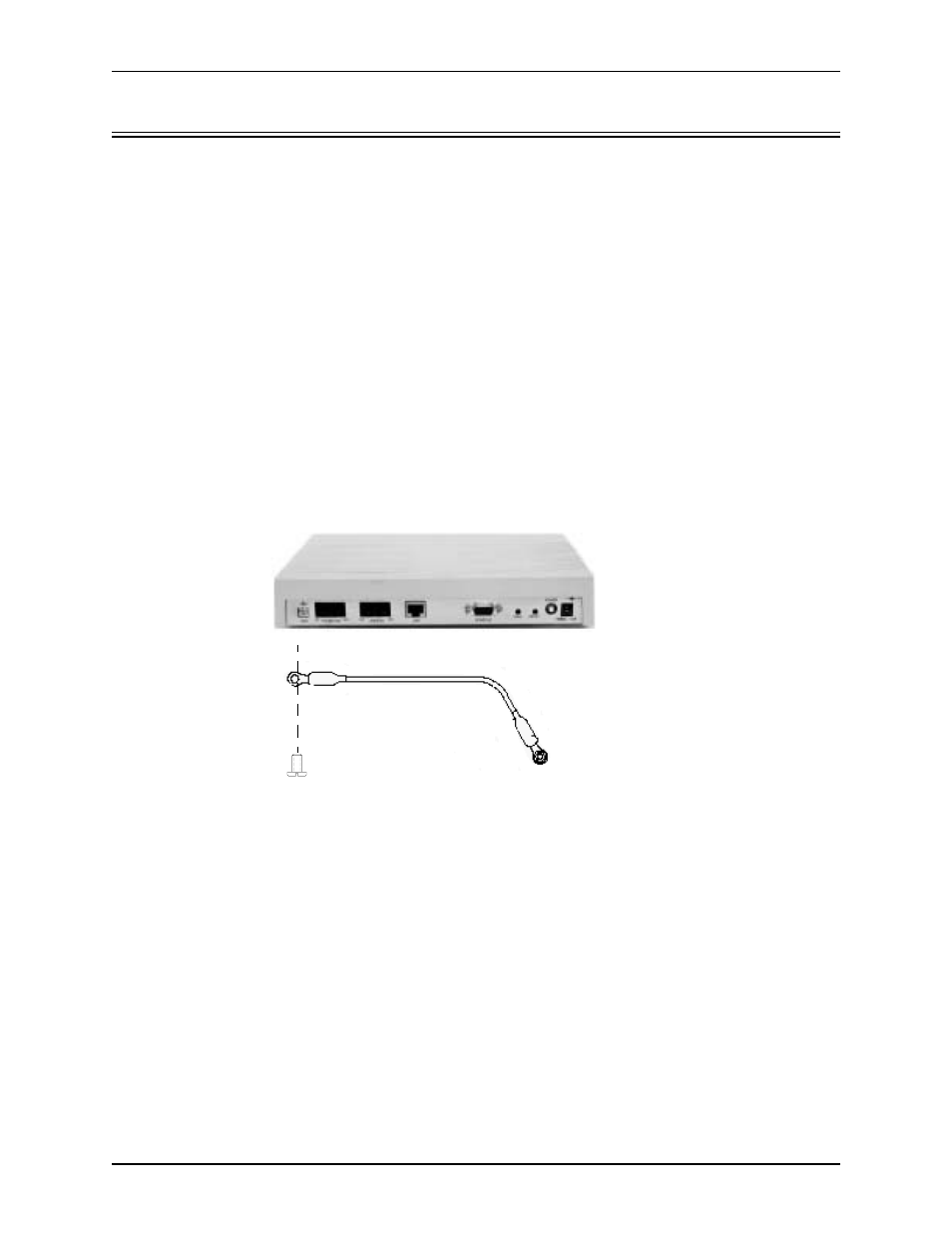

Figure 2-5 Install Ground Safety Cable
