V T 1 0 0 I n t e r f a c e 4-51
SNMP
The unit detects and reports T1 alarms and provides several options for
reporting them, one of which is SNMP traps. When a network alarm occurs,
the unit sends a trap message to as many as eight destinations on your
network. The unit will report each alarm by transmitting an SNMP “trap” to
each non-zero Trap IP address.
SNMP Details Screen

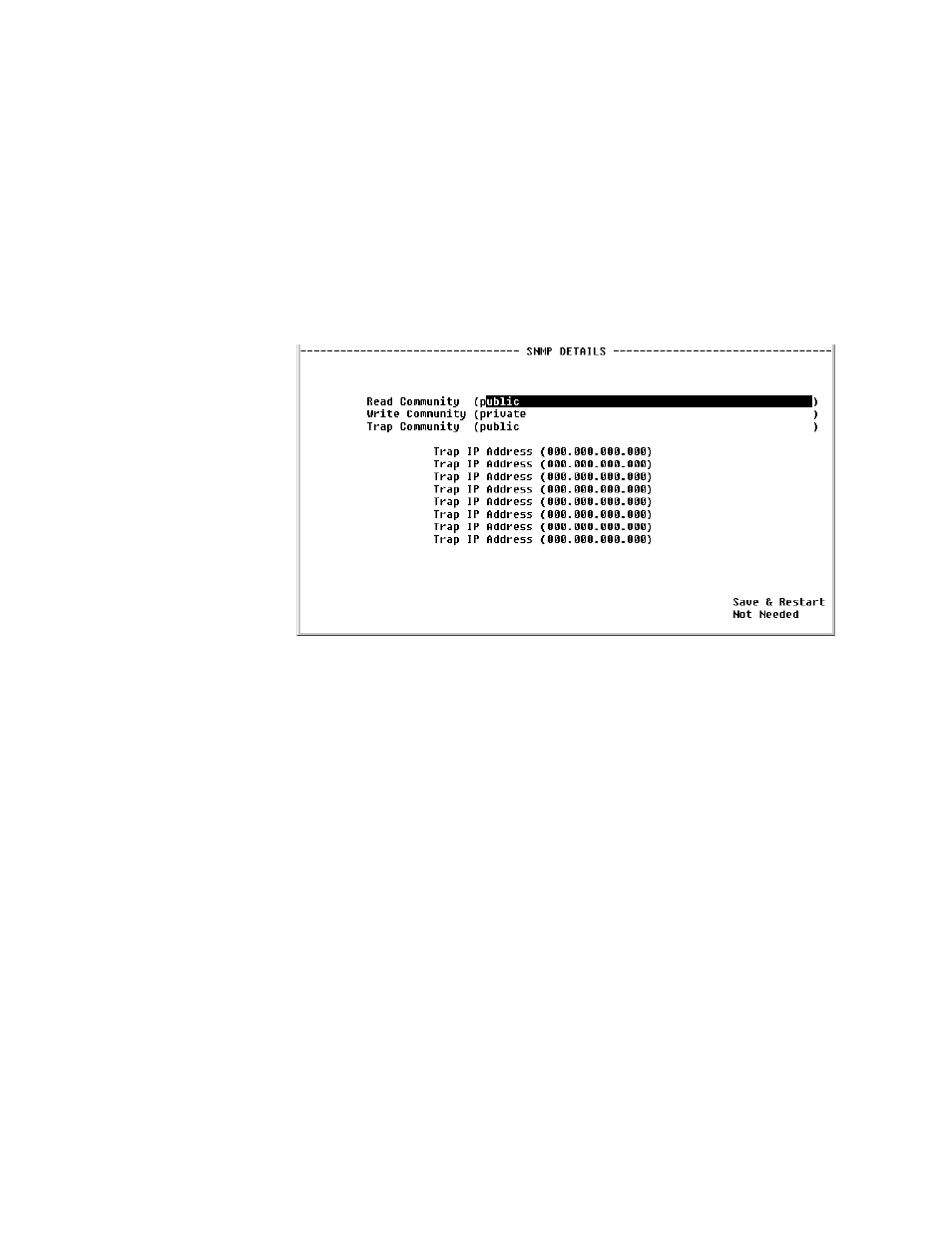

The SNMP Details screen (Figure 4.42) lets you configure the SNMP
parameters described in the paragraphs below.
Figure 4.42 SNMP Details Screen
Read Community Accepts a character string identifying the group authorized to perform read
operations. The default setting is “Public.”
Write Community Accepts a character string identifying the group authorized to perform write
operations. The default setting is “Private.”
Trap Community Accepts a character string, which is included in SNMP traps generated by the
unit. The default setting is “Public.”
Trap IP Address Accepts the IP address of a network device where alarm reporting traps are to
be sent.
Trap Log
A trap is a mechanism that permits a device to send an alarm for certain
network events to an SNMP management station. The Trap Log screen
(Figure 4.43) shows a collection of all the traps that have been generated.
