84
Router Control
Installing Control Cards
Installing Control Cards
The card slots that house control cards are associated with specific router control system
connections. If you are installing only a primary control card, you must install the card in the slot
associated with the primary router control system connection. If you are installing both a
primary and secondary control card, both card slots are used and there is no need to distinguish.
There are no backplanes associated with control cards. All communication is through the router
control system connections.
Installing Control Cards
1 Face the front of the router frame. The control card slots are located at the far right of the
frame, next to the input cards, and have yellow card guides.
For the NV8144, see Figure 4-1.
For the NV8140, see Figure 4-2, next page.
For the NV8280, see Figure 4-3, next page.
For the NV8576 or NV8576-Plus, see Figure 4-4 on page 86. The control cards are installed
only in the upper region of the frame. No control cards are installed in the lower region of
the frame.

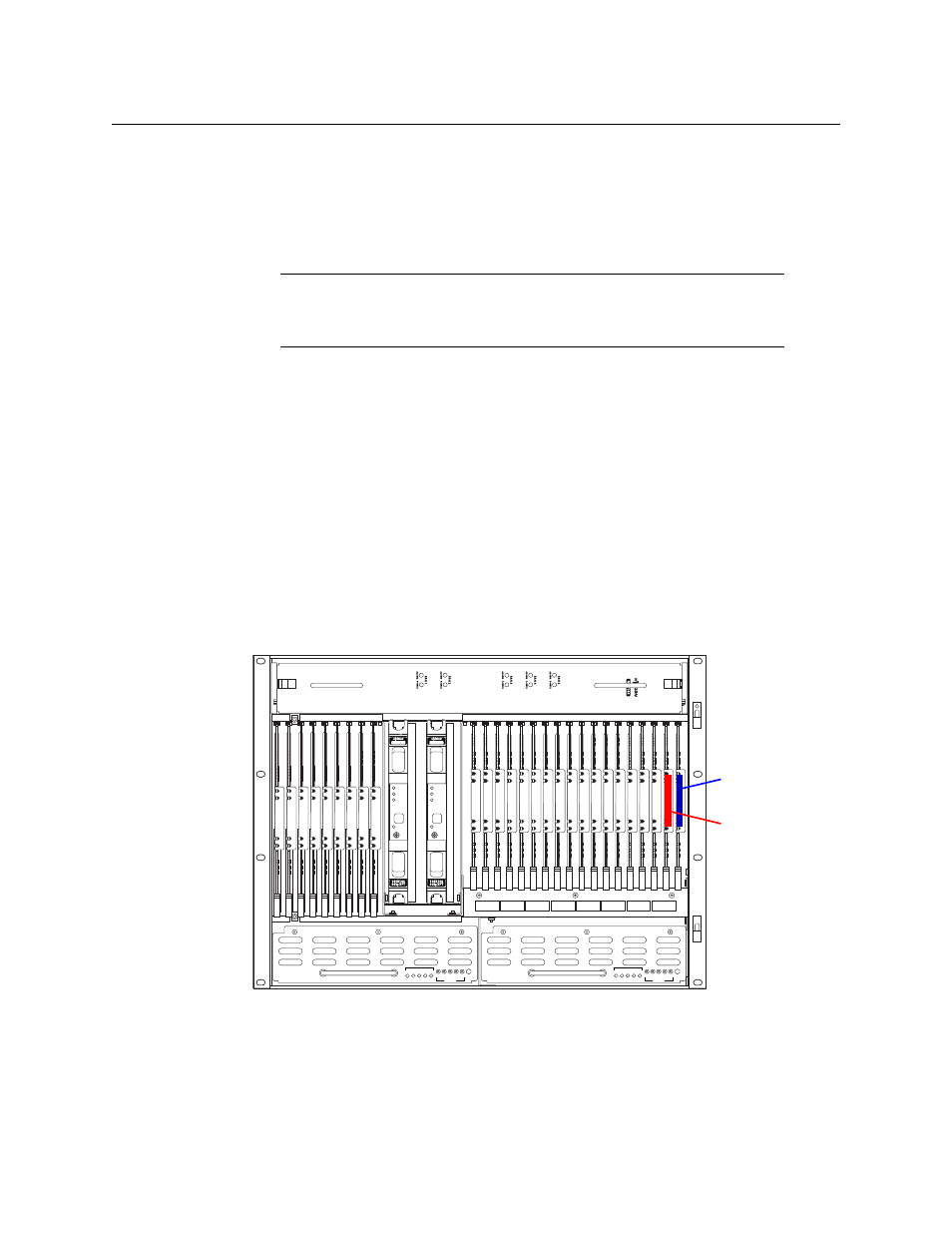

Fig. 4-1: NV8144 control card slots (Front View)
CAUTION
Do not drop, roughly handle, or stack circuit boards. If you cannot easily
insert or remove a board, stop and contact Grass Valley Technical Support.
NV8500 NV8500
PS8100 1 2 3 4 5
POWER
GND 1 2 3 4 5
48V +
PS8100 1 2 3 4 5
POWER
GND 1 2 3 4 5
48V +
Primary Control Card
Secondary Control Card
