IP Gateway Cards
Browser Application
‘Ctrl IP Address’

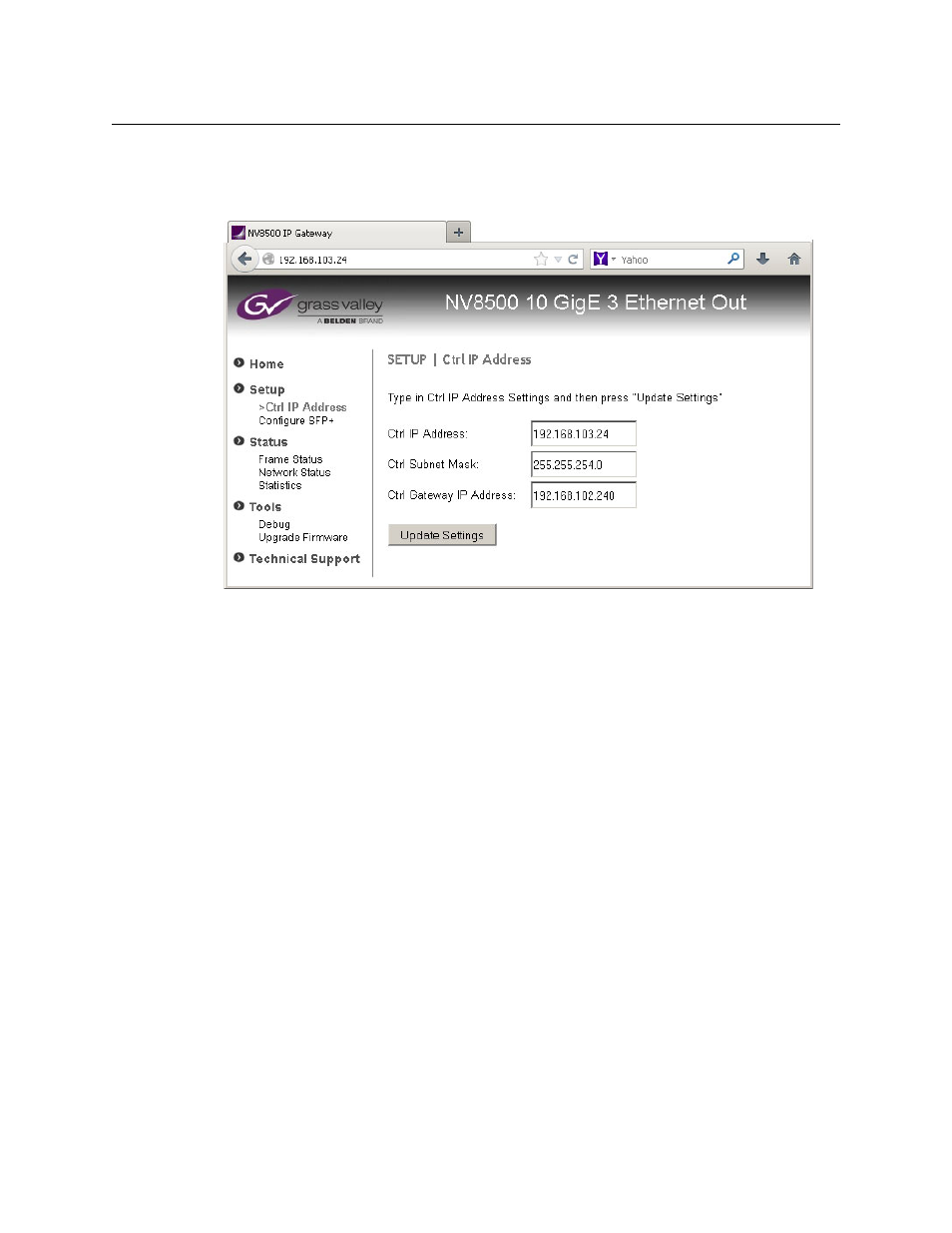

The ‘Ctrl IP Address’ page represents the Ethernet port through which you are communicating
with the IP gateway output card:
Here you can specify the IP address, subnet mask, and gateway IP address of the card.
Click the ‘Update Settings’ button to commit your change.
(The browser application reconnects with your browser using its new IP address.)
‘Configure SFP+’
The ‘Configure SFP+’ page specifies (1) the mapping of the 8 video ports of the output card to IP
addresses and (2) the destinations of the outputs.
If you are configuring a card in an NV8576 or an NV8576-Plus, cards and backplane modules in
the lower bays of the router frame are installed “upside down.” Consequently, the ‘Config SFP+’
page differs slightly depending on whether you are communicating with a card in the upper bay
or lower bay.
