Introduction
Overview of the Routers

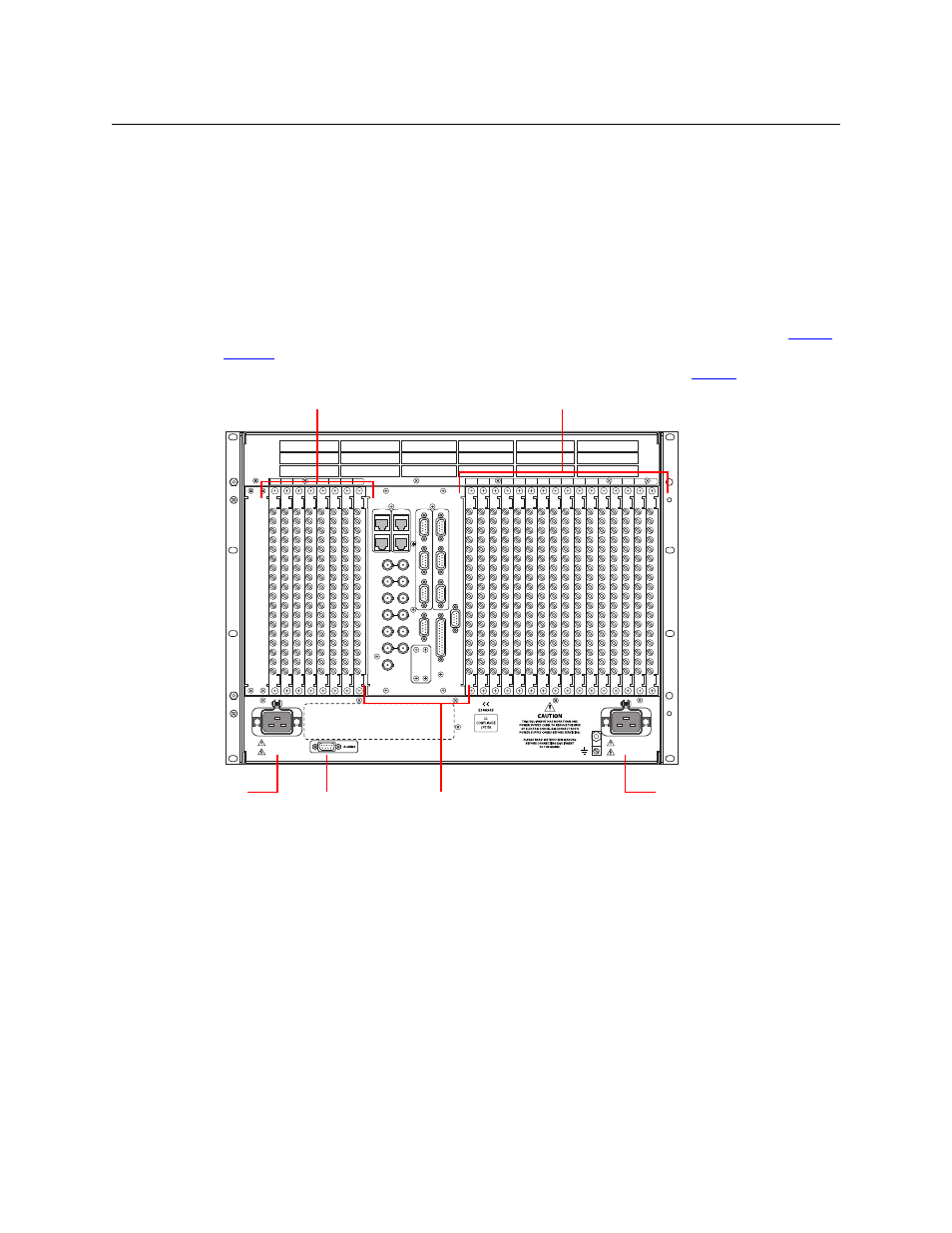

Figure 1-7 shows the rear of the NV8140. The farthest left-hand section is a blank plate that
corresponds in position to the control cards. Next to the control card plate are 8 input backplane
slots. A mixture of different input cards and their backplane modules can be placed in these
slots.
The middle section contains system connections for audio reference, video reference, control
system connections, and power supply alarms.
To the right of the monitor backplane are 16 output backplane slots. A mixture of different
output cards and their backplane modules can be placed in these slots.
At the very top of the frame is a grill for exhausting warm air dispersed by the fans. (See
on page 6.) Near the bottom of the frame are two AC power connectors. To the right of
the left-hand power connection is a power supply alarm connector. (See
Fig. 1-7: NV8140 (Rear View)
The NV8140 uses PS8300 power supplies, not PS8100s. It has two C19 power connectors and
require 20A plant lines. The cable supplied in North America has a NEMA L5-20P connector at
the other end. For customers outside North America, we ship these power cords with the NEMA
end cut off.
The input backplane modules of the NV8140 have 18 connectors, not 9 as for the other routers.
1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
10
11
12
13
14
15
16
9
1
POWER
SUPPLY
MONITORS
TIME CODE
NVISION AUX BUS
RTR EXP OUT
RTR EXP IN
AES REF 1
AES REF 2
VIDEO REF 2
VIDEO REF 1
10/100 BT
10/100 BT
RTR EXP
RTR EXP
CTRL 1
CTRL 2
DIA
G
(38.4 Kbaud)
CTRL 1
CTRL 2
DIA
G
(38.4 Kbaud)
AL
ARMS
CONTROL
PRI
PRI
SEC
SEC
100 - 240V~
15A / 7.5A
50 / 60Hz
100 - 240V~
15A / 7.5A
50 / 60Hz
Output Backplanes (16)
Input Backplanes (8)
Power Connector
Power
Connector
PS Alarm
Connector
System
Connectors
