153
NV8500 Series
User’s Guide
nearest 0.01 μs. The double arrows move the frame delay value in increments of 3 frames (which
is the full extent of the slider).
The single arrows move the horizontal offset in increments of 0.00666 μs, rounded off to the
nearest 0.01 μs. (Three clicks of a single arrow result in a change of 0.02 μs.)
The single arrows, for the other two scales, move the adjustment value in increments of 1 unit.
You can also slide the indicators manually for gross adjustment.
Audio Processing
The audio processing page has several sections. The working area has two sets of tabs. The first
set of tabs lets you choose an audio group: 1–4, 5–8, 9–12, or 13–16.

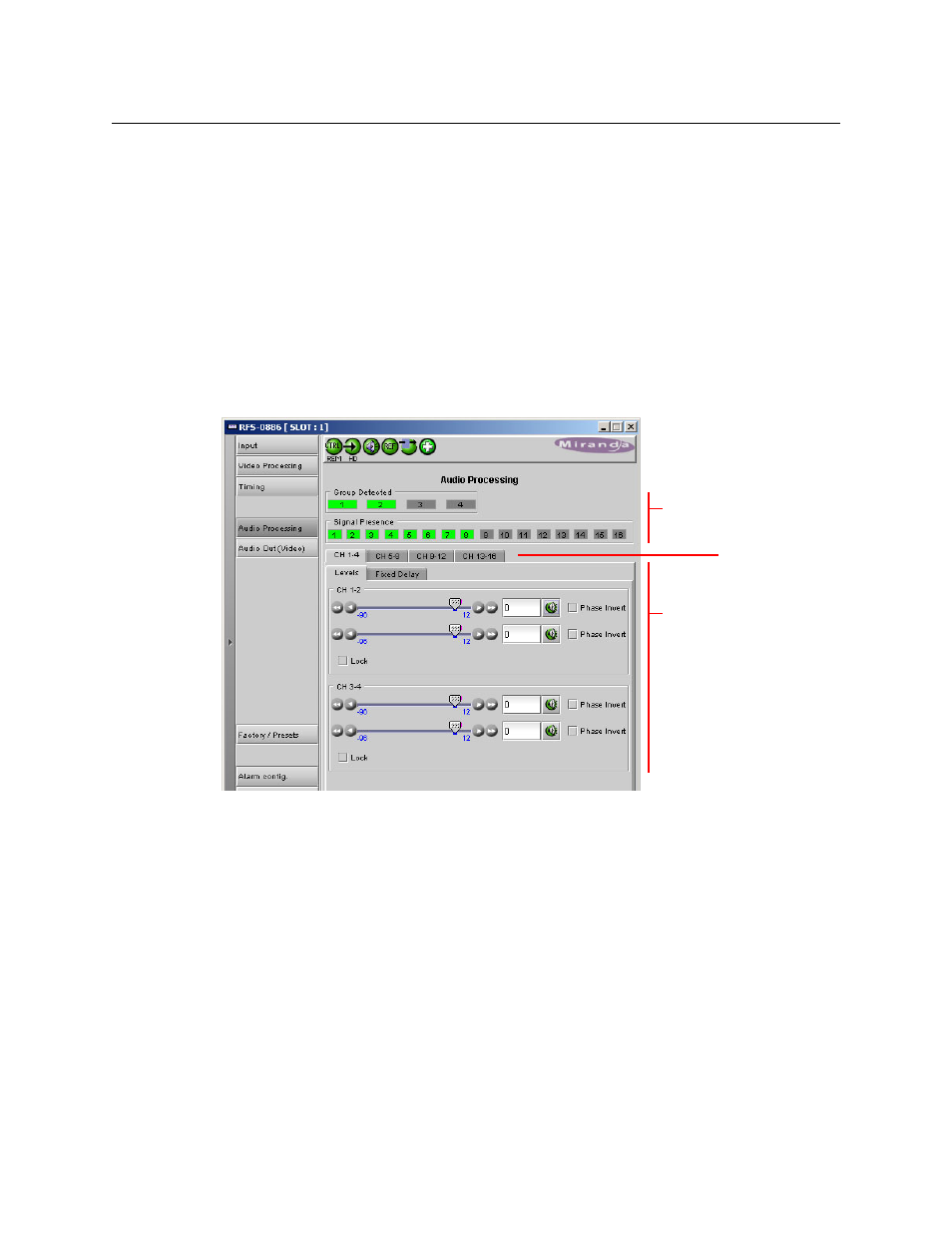

Within each group there are two sub-tabs: ‘Levels’ and ‘Fixed Delay’. This illustration shows the
‘Levels’ tab (for group 1):
Channel Status
A channel button in this section turns green if (embedded) audio is present on the channel and
remains grey if it is not.
A group button in this section turns green if (embedded) audio is present in the group and
remains grey if it is not.
Group Selection
Choose one of the tabs here to select an audio group. (The level controls and delay controls in
the working area apply to the group you select.)
Levels
The levels tab (as shown above) provides gain sliders (from –90 to +12 dB), inversion check
boxes, and muting icons for each channel in the selected group.
Channel Status
Group Selection
Working Area
(Levels Tab Selected)
