154
Frame Sync Cards
Configuration in iControl-Solo
The levels tab provides a ‘lock’ check box for each pair of channels. A lock causes the two scales
of the channel pair to move identically, simultaneously. If one scale moves +10 dB, the other
does also, subject to the limits of the scale. The “lock” has no effect on muting or inversion.
The double arrows move the gain values in increments of 5 dB. The single arrows, in all cases,
move the adjustment value in increments of 0.5 dB. You can also slide the indicators manually
for gross adjustment
Fixed Delay

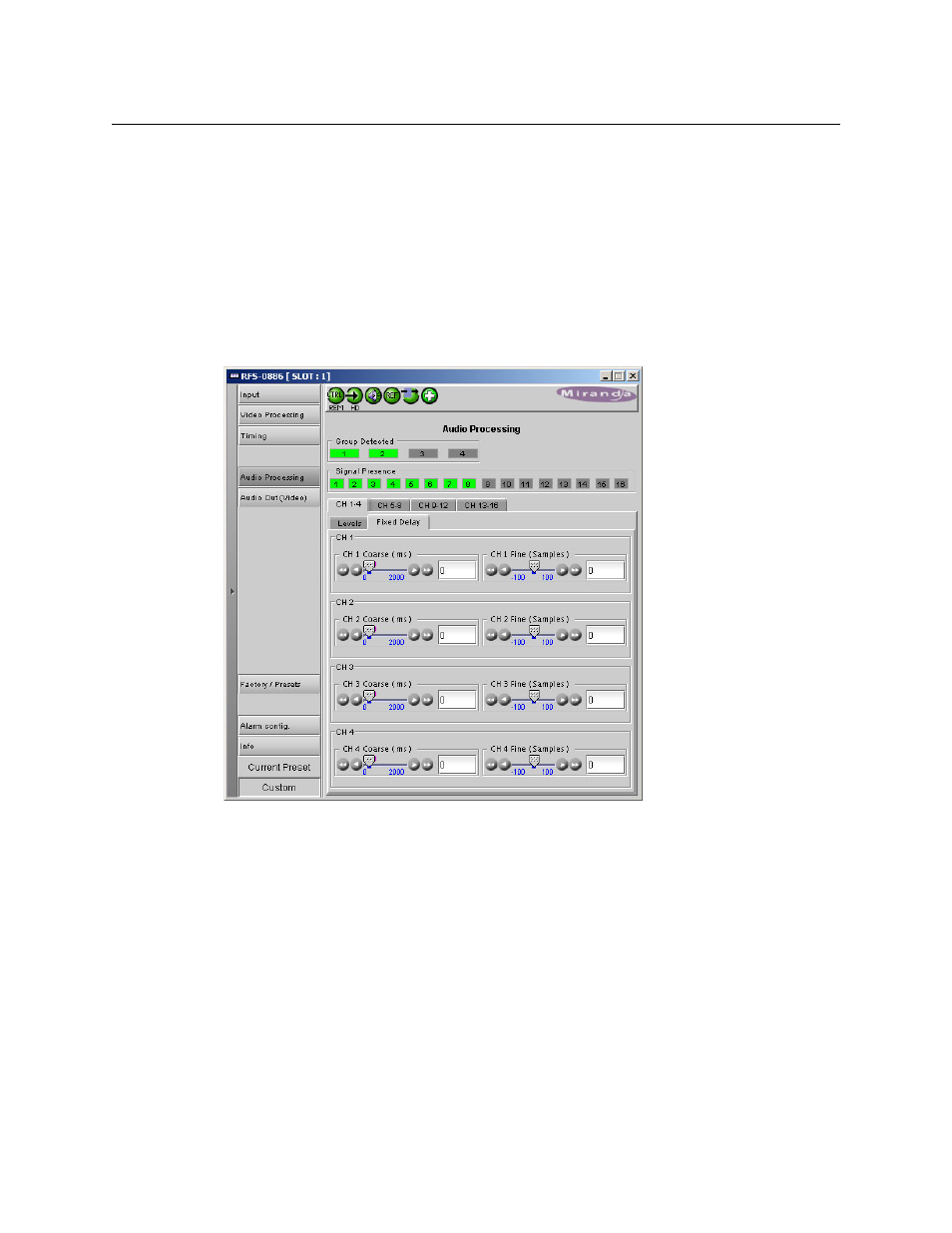

The ‘Fixed Delay’ tab of the audio processing page lets you specify the audio delay for each of
the channels in the selected group:
There is a coarse adjustment slider (in ms) and a fine adjustment slider (in samples).
For coarse adjustment, the double arrows move the adjustment value (and the indicator) in
increments of 200 ms. The single arrows move the adjustment value in increments of 1.
For fine adjustment, the double arrows move the adjustment value (and the indicator) in incre-
ments of 30 samples. The single arrows move the adjustment value in increments of 1.
You can also slide the indicators manually for gross adjustment.
