Frame Sync Cards
Configuration in iControl-Solo

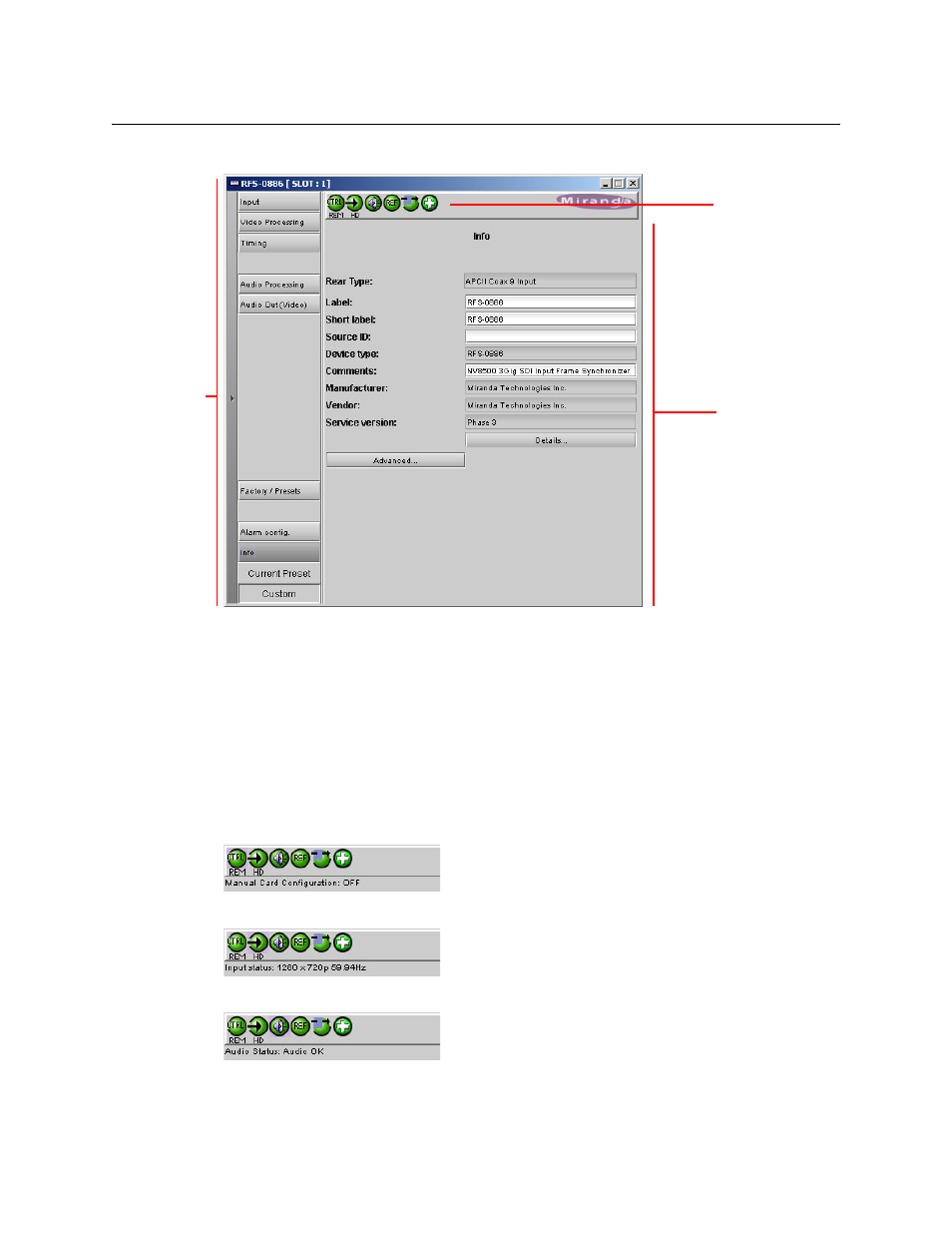

When you select an “RFS” port, a configuration window appears:
Choose a configuration option from the navigation pane at the left. There are buttons for 8
configuration pages:
Input Video Processing Timing Audio Processing
Audio Output Factory Presets Alarm Config Info
Status Icons
There are 6 status icons at the top of the RFS window. These are not named. Normally green,
they might appear red or in some other color if alarm conditions or problems exist. When you
hover your cursor over them, they provide status, as follows, in order from left to right:
(A)
(B)
(C)
Work Area
Status Icons
Navigation
Pane
