Page 143
127
NV8500 Series
User’s Guide
Wiring

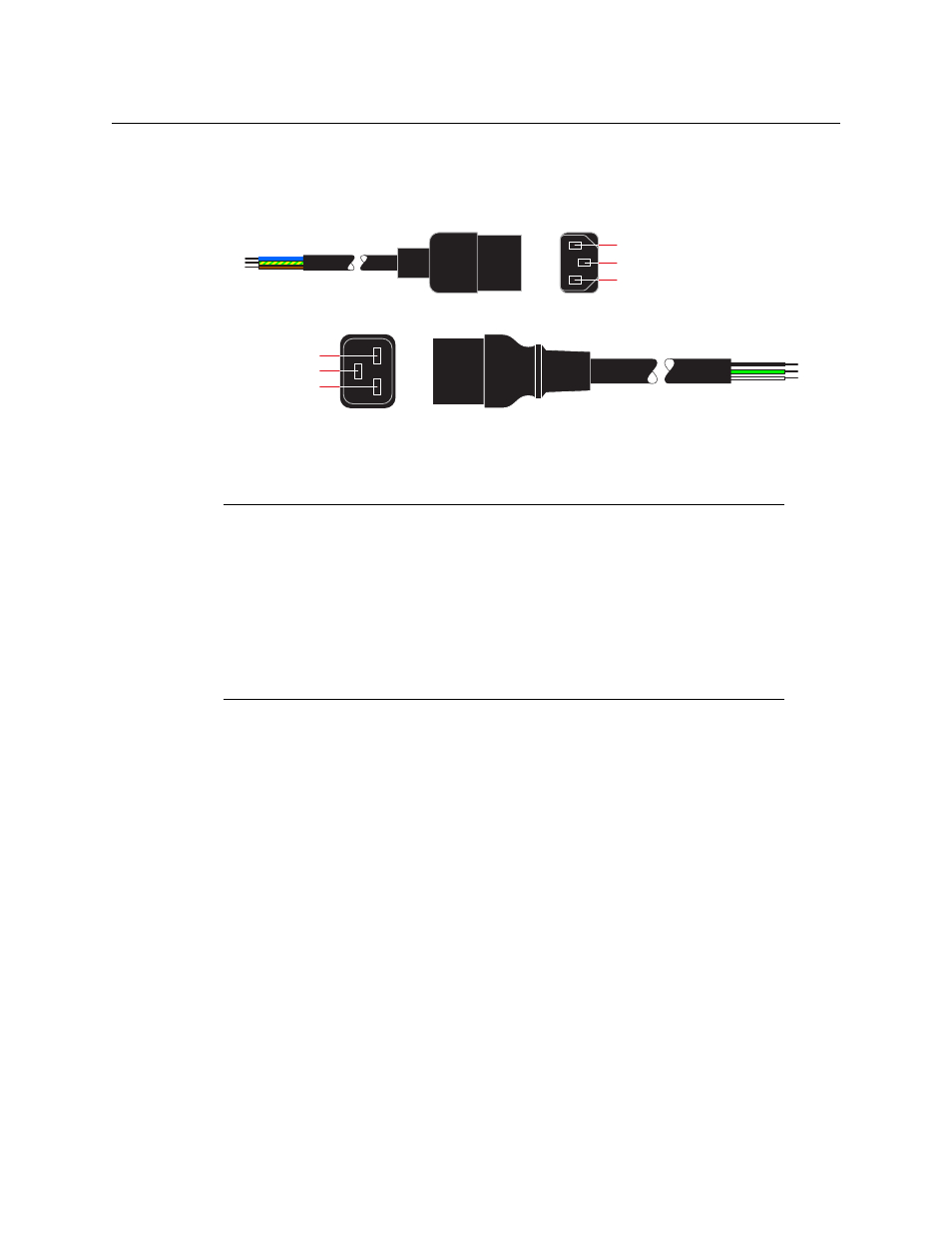

If you choose to make your own power cables, use the following wiring methods:
•
For the NV8144 (110 VAC, 15A)
•
For the NV8140, NV8280, NV8576, NV8576-Plus (110 VAC, 20A or 220 VAC, 10A)
For customers outside North America, we ship these power cords with the NEMA end cut off.
Power Connection Requirements
Blue (Neutral)
Green/Yellow (Ground)
Brown (Live)
(Ground) Green
(Live) Black
(Neutral) White
IMPORTANT
Remove PS8300 power supply modules from NV8300 frames before making power
connections.
Re-insert PS8300 power supply modules only after making all power connections of
the router to the NV8300(s) and of the NV8300(s) to AC power, and preferably after
making all I/O and control connections.
Inserting PS8300s in the power supply frames is the way you power-up a router
(other than the NV8140 or NV8144). Insert the PS8300s one-by-one, with an interval
of at least a few seconds between each one.
