25
NV8500 Series
User’s Guide

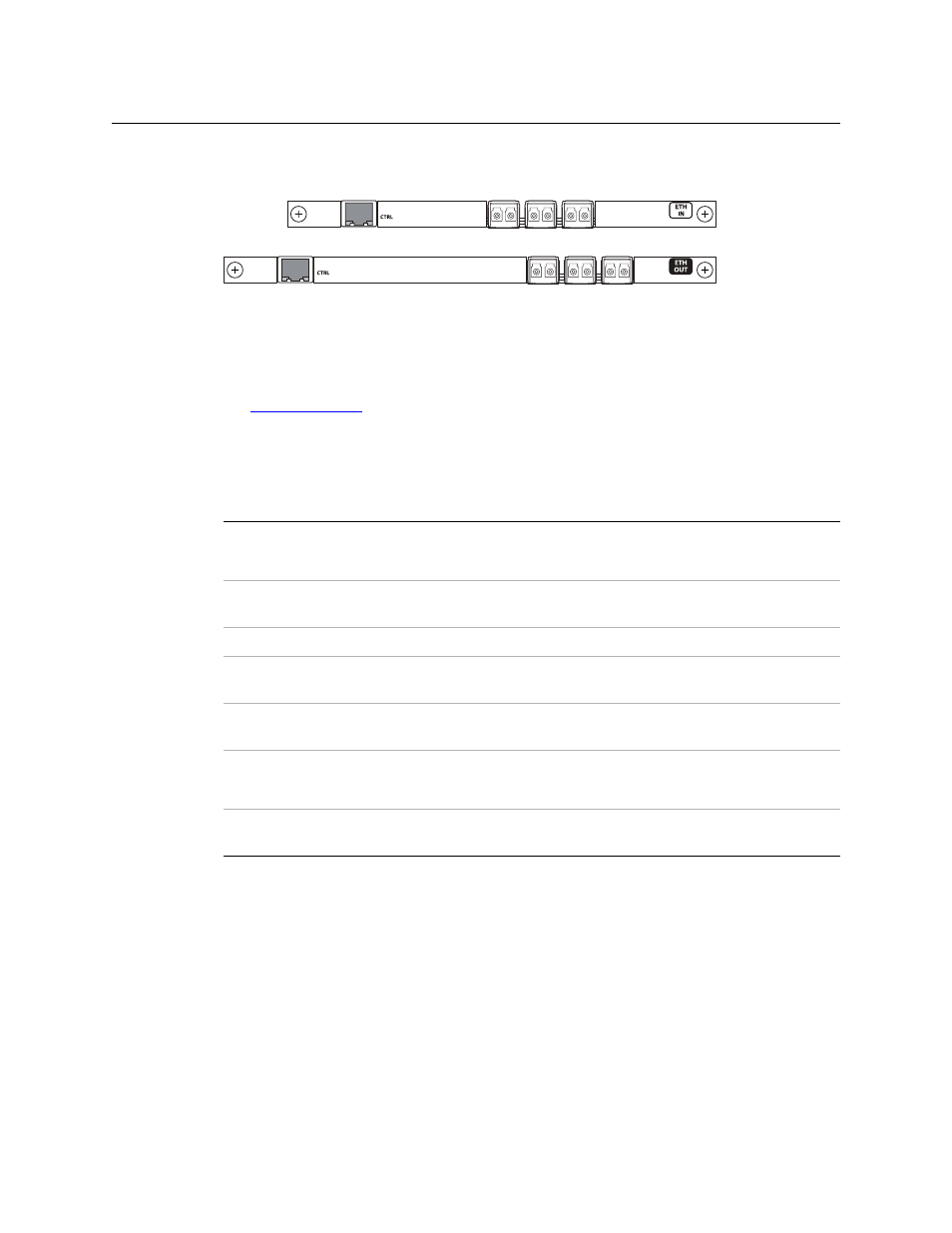

Backplanes for IP Gateway Cards
These backplane 3 SFP connectors:
The IP gateway backplanes have an additional Ethernet port for configuration.
Each of the 3 SFP connectors has two ports.
The 3 SFP connectors of the input card, combined, support 8 packetized video streams and the
3 SFP connectors of the output card, combined, support 8 packetized video streams.
See IP Gateway Cards on page 163.
Backplanes for Hybrid Cards
For hybrid cards, the backplane connectors are used differently.
IP Gateway Input
IP Gateway Output
Card Type Video MADI 10GE Unused Remarks
Disembedder 8
16
a
a. For the NV8140 only.
—
—
1
2
16 embedded audio channels for each video
Frame sync
(disembedder) 8 — 1 16 embedded audio channels for each video plus
an RJ-45 port for configuring frame sync functions.
Embedder 16 — 2 16 embedded audio channels for each video
IP gateway,
input — — 3
b
b. Not available for the NV8140.
— Eight packetized video streams received on the 3
SFP connectors.
IP gateway,
output — — 3
c
c. There are no IP gateway expansion output cards.
— Eight packetized video streams output on the 3
SFP connectors.
MADI input 8
16
a
1
2
—
—
Up to 64 MADI channels on 1 audio port
MADI output 16 2 — 56 or 64 MADI channels on each of the 2 audio
ports
