associated with each sector in the system is defined by the user in the
configuration file.

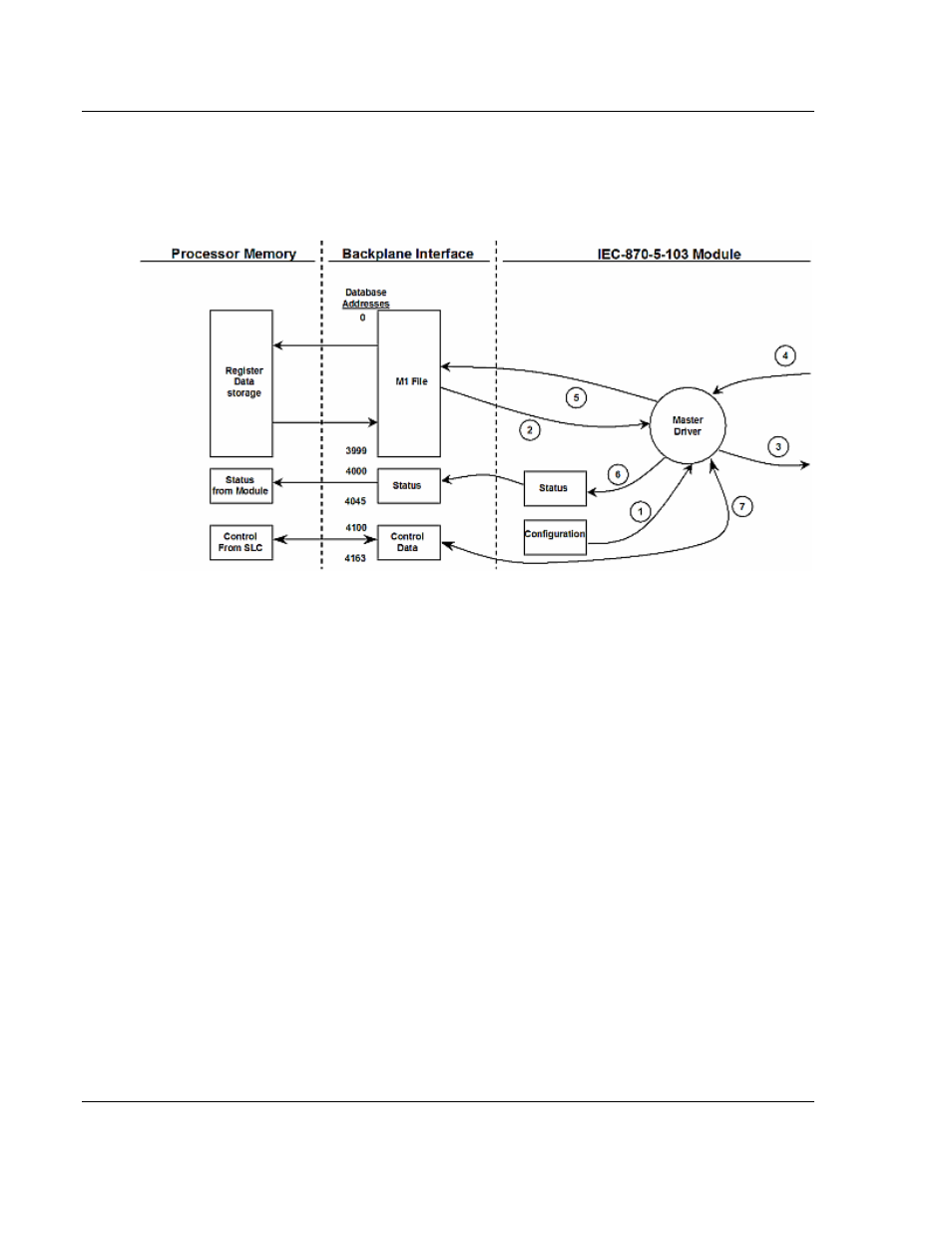

The following diagram illustrates the functionality of the master driver:
1
The master driver is configured as specified by the IEC103M.CFG file
2
The master will construct control commands using the data in the database
3
The master will send these commands and class polls out on the serial
network
4
Response messages or spontaneous messages generated by controlled
devices on the serial network are received by the master driver
5
Monitor data received by the master is passed to the module's database and
passed to the processor
6
Additionally, status data for the module is passed to the processor
