MVI46-103M ♦ SLC Platform
Module Configuration
IEC 60870-5-103 Master Communication Module
Page 38 of 187
ProSoft Technology, Inc.
September 12, 2006
1

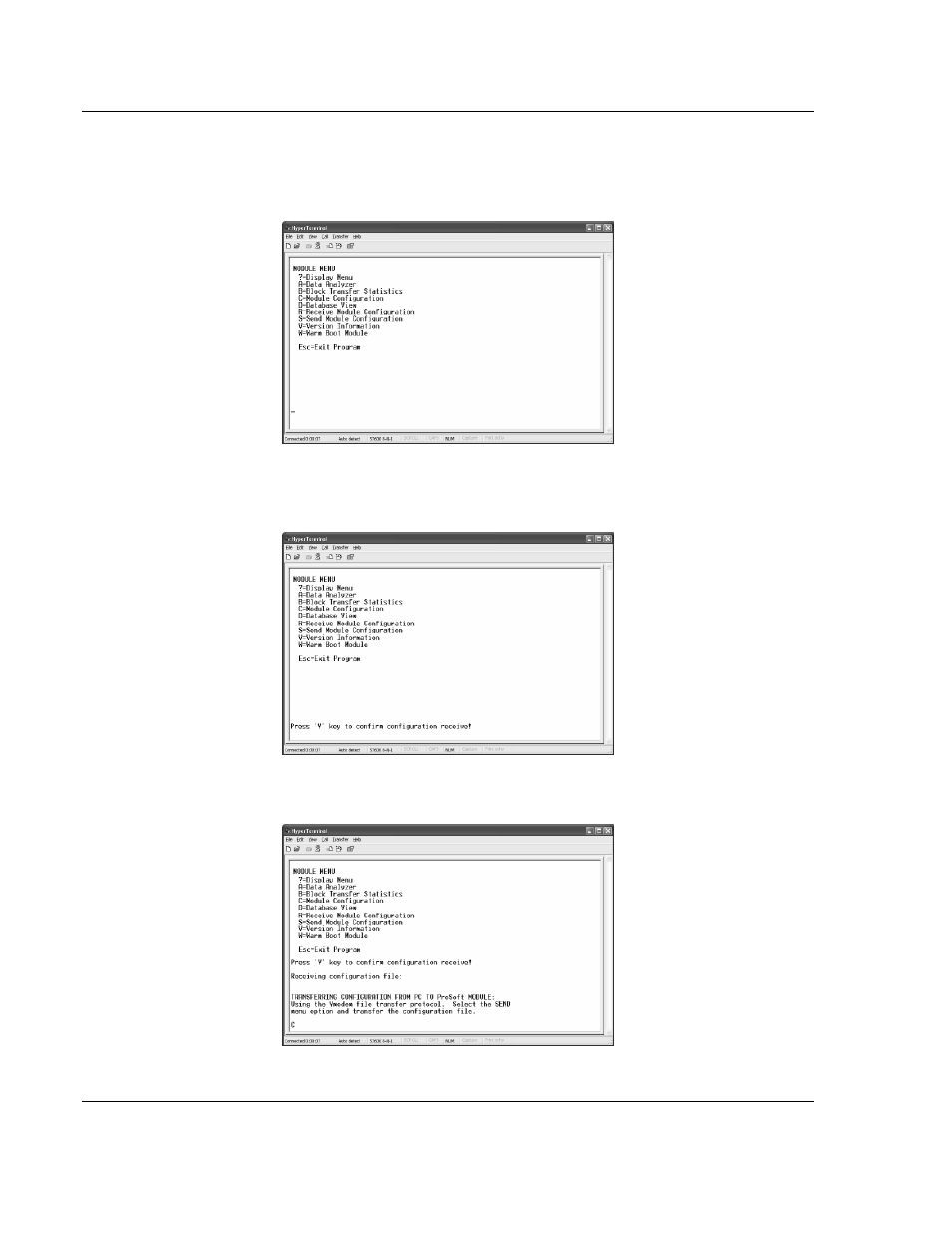

Connect your PC to the Configuration/Debug port of the module using a
terminal program such as HyperTerminal. Press [?] to display the main
menu.
2
Press [S] (Receive Module Configuration). The message "Press Y key to
confirm configuration receive!" is displayed at the bottom of the screen.
3
Press [Y]. The screen now indicates that the PC is ready to send.
