MVI46-103M ♦ SLC Platform Diagnostics and Troubleshooting
IEC 60870-5-103 Master Communication Module
Page 50 of 187 ProSoft Technology, Inc.
September 12, 2006
3 On computers with more than one serial port, verify that your communication
program is connected to the same port that is connected to the module.
If you are still not able to establish a connection, you can contact ProSoft
Technology, Inc. Technical Support for further assistance.
6.4.1 Main Menu

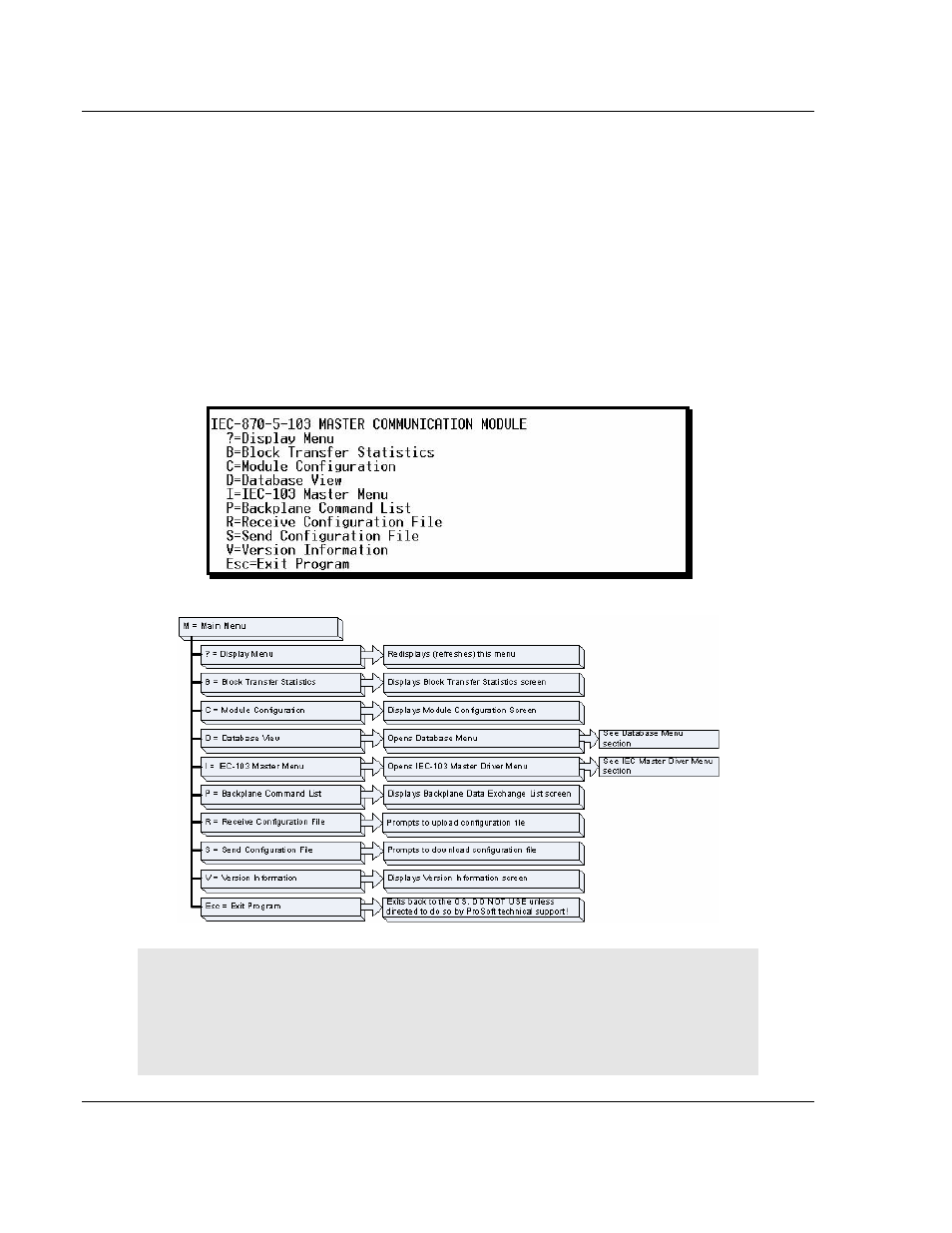

When you first connect to the module from your computer, your terminal screen
will be blank. To activate the main menu, press the [?] key on your computer's
keyboard. If the module is connected properly, the following menu will appear on
your terminal screen:
Caution:
Some of the commands available to you from this menu are
designed for advanced debugging and system testing only, and can cause the
module to stop communicating with the processor or with other devices,
resulting in potential data loss or other failures. Only use these commands if
you are specifically directed to do so by ProSoft Technology, Inc. Technical
Support staff. Some of these command keys are not listed on the menu, but
