18 9437200990 Rev C
Limiter/trip status is indicated by up to three columns of red (active) or black (inactive) indicators labeled
M (main channel), R (redundant channel), and S (supervisory channel). The meaning of a red indicator
depends upon the column it is located in. Indication categories (columns) are Timing, Timed Out, Limit,
Redundant, Manual, and Trip.

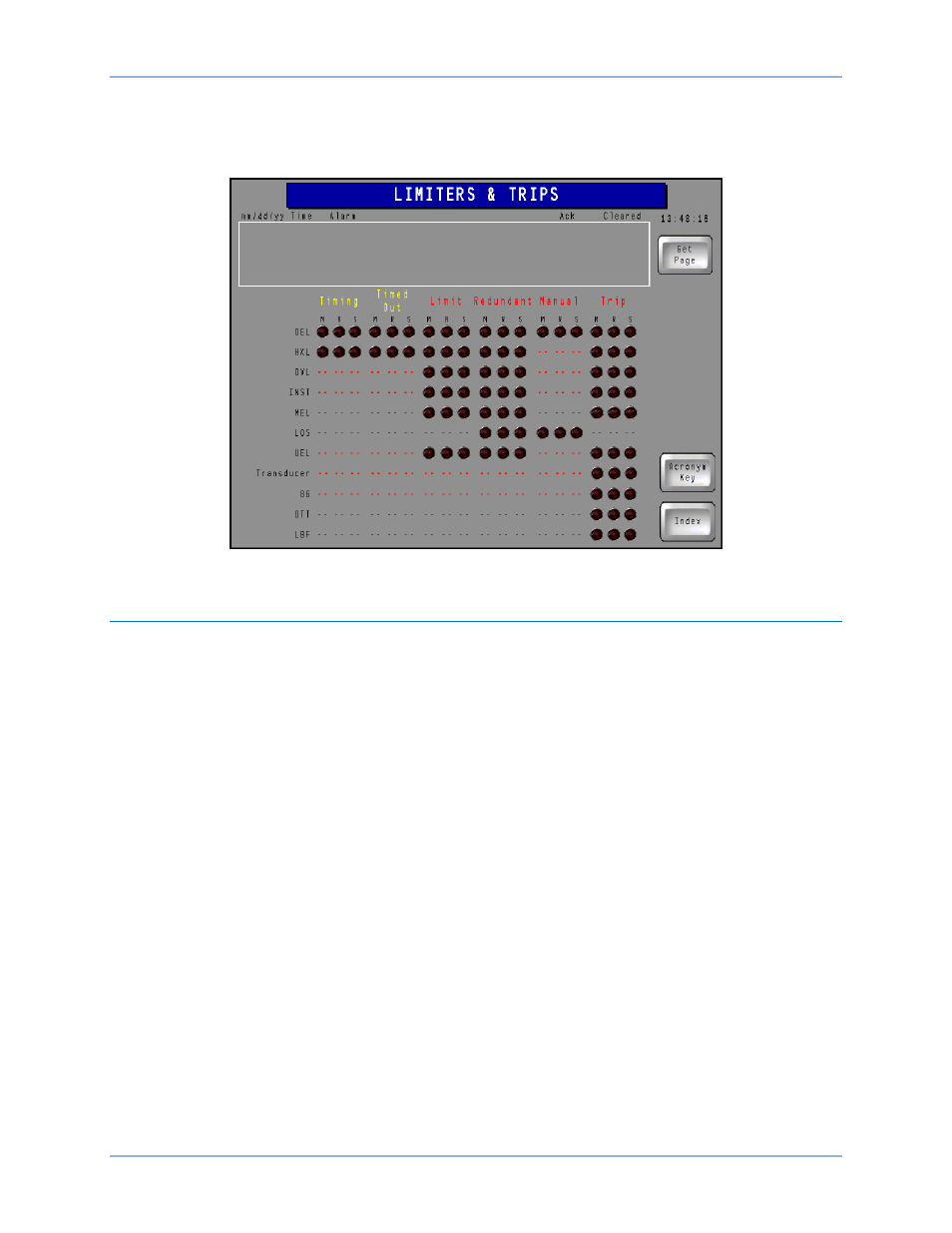

Figure 18. Limiters and Trips Screen
Alarm Status
The Alarm Status screen (Figure 19) lists control system parameters, conditions, and modules along with
their alarm status. Alarm status is displayed by three columns of indicators that are either black (no alarm)
or red (alarm). Depending upon the features of the control system, each parameter has up to three alarm
indicators labeled M (main channel), R (redundant channel), and S (supervisory channel). An active alarm
is annunciated by a red indicator and is listed in the alarms banner along the top of the page. More
information about how alarms are displayed is provided in the description for the Alarms/Faults screen.
Navigation to the Index, Bridge Status, and Transfer Control screen is available through buttons located in
the lower, right portion of the Alarm Status screen.
IDP-1200 Operation with ECS2100 and ECS/RW IDP-1200
