9437200990 Rev C
67

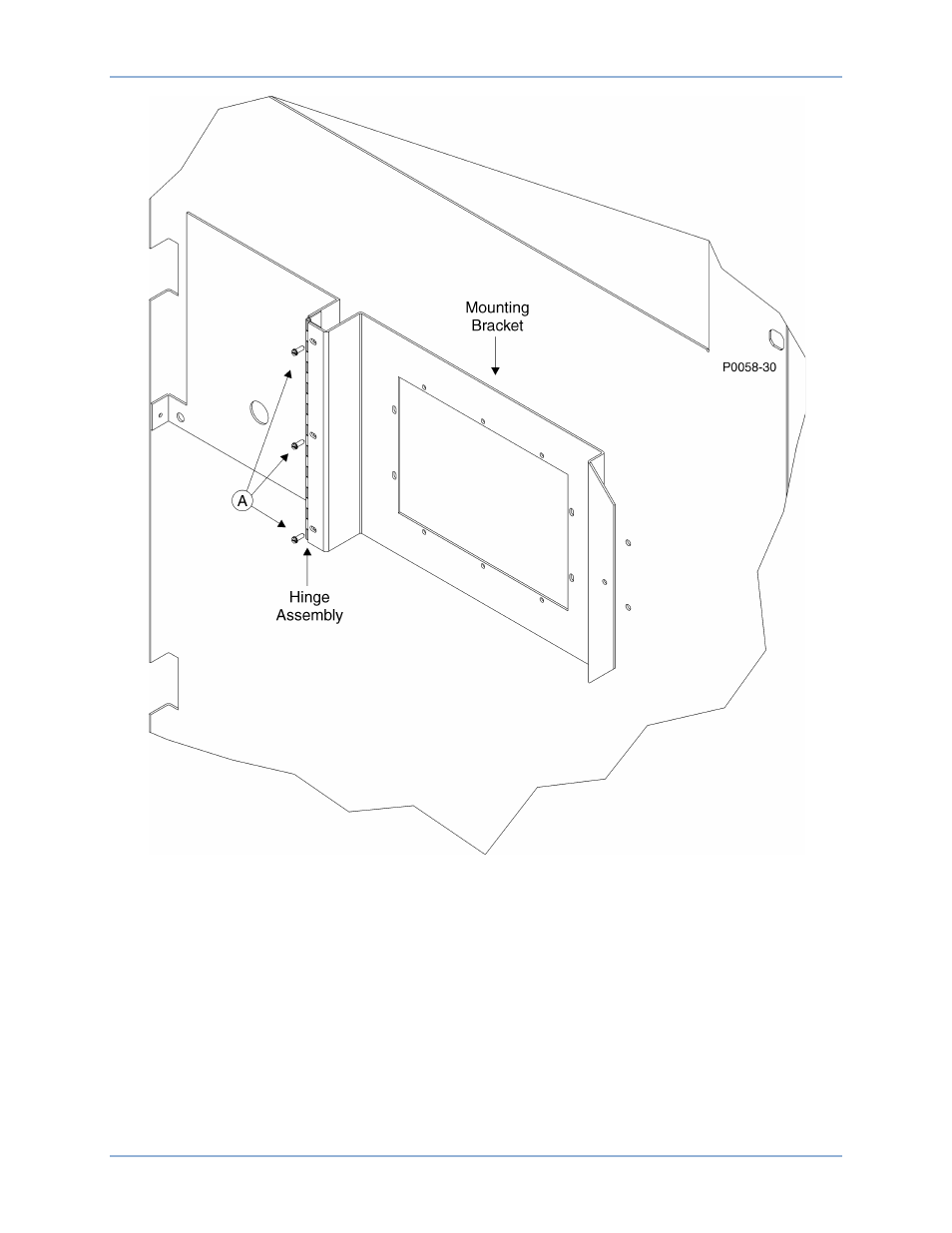

Figure 71. Removal of Display Panel Mounting Bracket and Hinge Assembly
5.
Using the cutting dimensions illustrated in Figure 72, enlarge the door cutout to accommodate the
larger IDP-1200 display panel. Using the drilling dimensions shown in Figure 72, drill new holes
for relocation of the doorstop assembly (shown in Figure 74).
IDP-1200
Mounting
