9437200990 Rev C
51

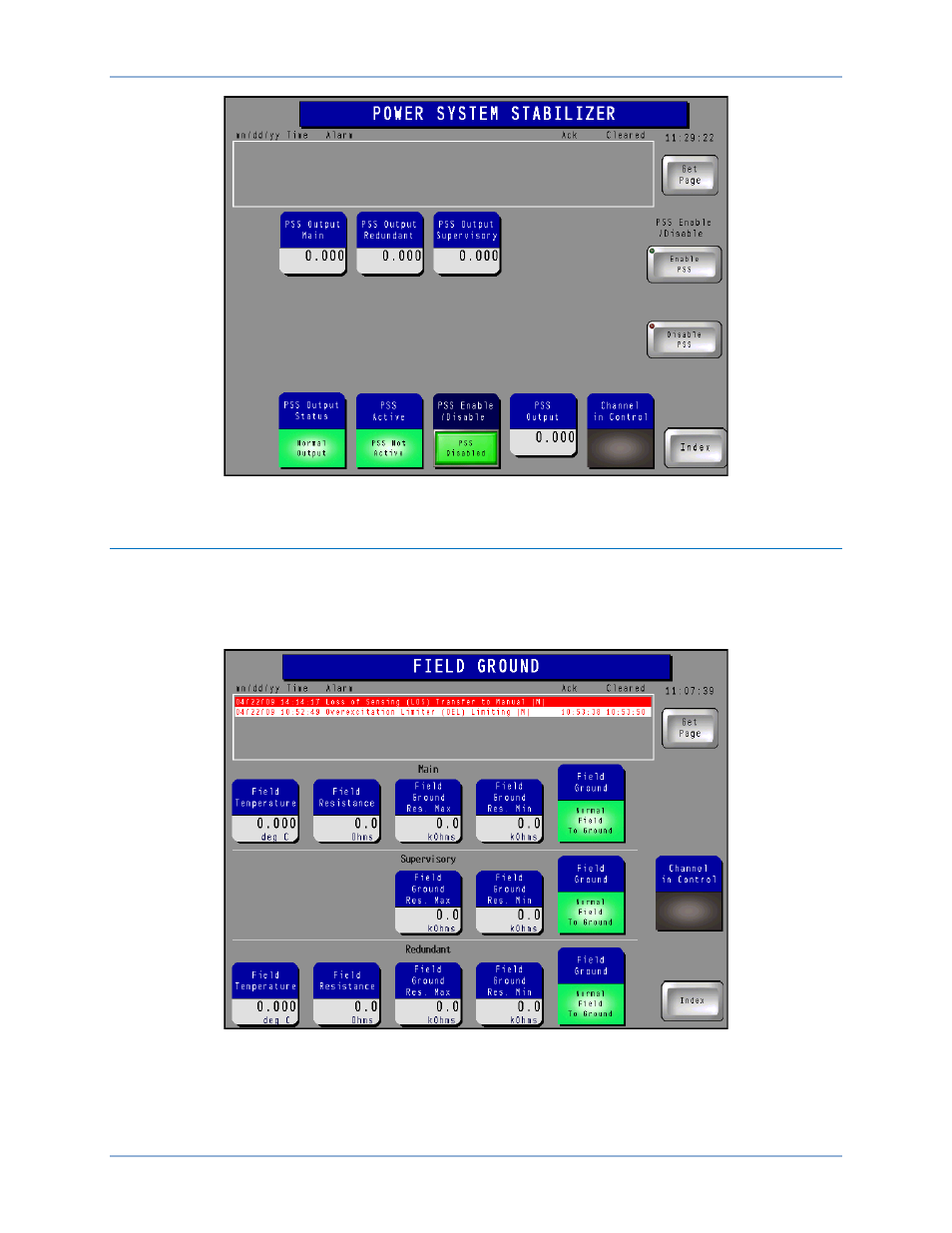

Figure 56. Power System Stabilizer Screen
Field Ground
This is an indications-only screen (Figure 57) that displays the field-to-ground resistance and calculated
field temperature as measured/calculated by each channel. If the level of the field-to-ground resistance is
detected as less than system variable FLDGND_RMIN, an alarm condition exists and is displayed in the
Field Ground indicator(s).
Figure 57. Field Ground Screen
IDP-1200
IDP-1200 Operation with DECS-2100 and DECS/RW
