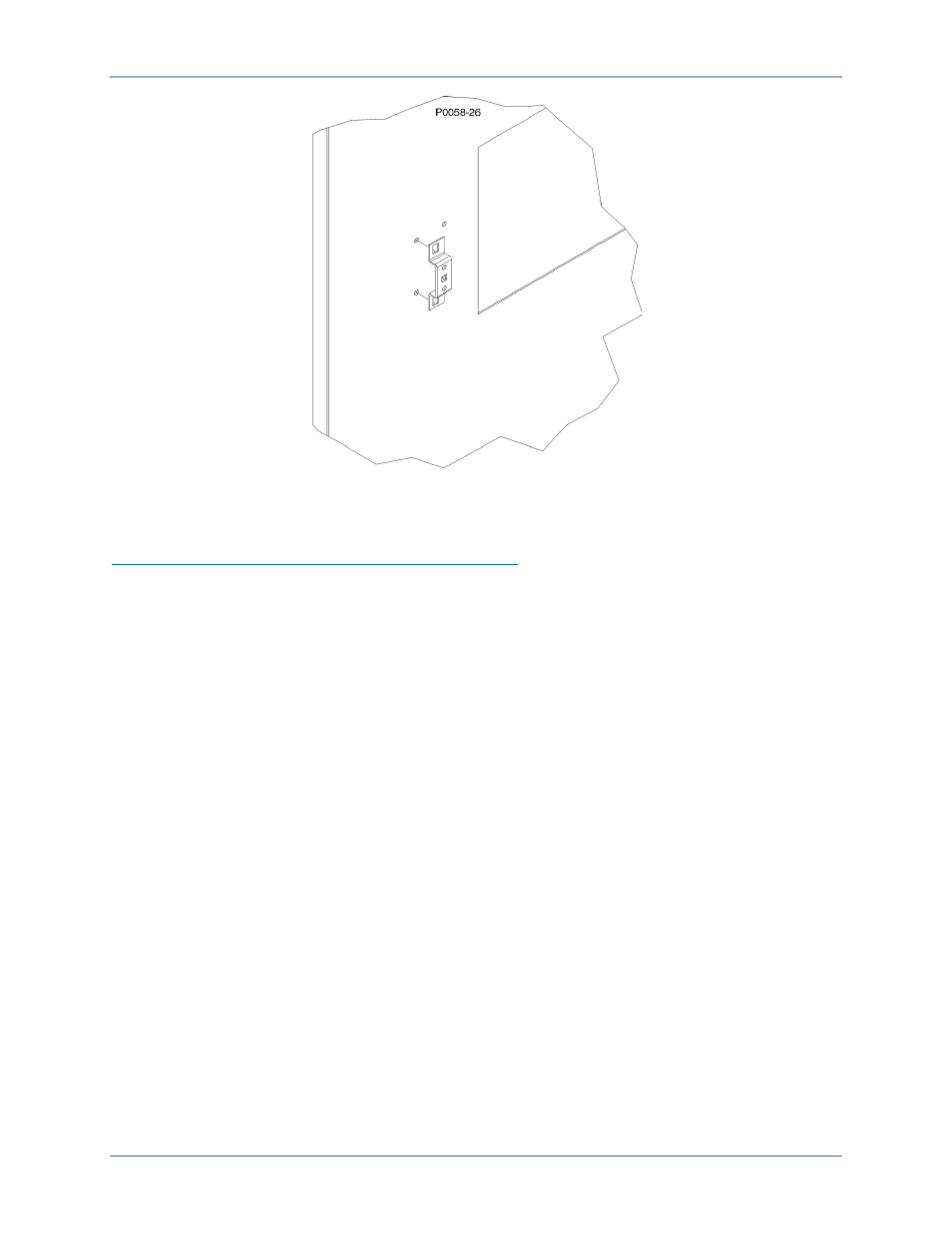

Figure 70. New Doorstop Mounting Location
10. Secure the IDP-1200 to the mounting bracket by performing the procedure of Securing the IDP-
1200.
Preparation for Mounting—Doors Hinged on the Right Side
The following procedure applies only to cubicle doors hinged on the right-hand side. To replace the
display panel on a door hinged on the right-hand side, see Preparation for Mounting—Doors Hinged on
the Left Side.
1. Remove the excitation control system from service and de-energize all operating/control power
voltage.
2. Open the cubicle door and loosen the thumbscrew holding the hinged display panel mounting
bracket against the door.
3. Remove the nuts and screws securing the display panel to the mounting bracket and remove the
display panel.
4. Separate the display mounting bracket from the hinge assembly by removing the three screws
shown in Figure 71 (locator A). Retain these screws for use later.
