1. Select the port that you want to modify in “Port#” first.
2. Fill the name of the port.
3. Select Enable/Disable state in “Admin”. If Disable is selected, this port will be
disabled for any network access.
4. Select the Enable/Disable state of Auto function of port. The auto mode could be
auto-negotiation or auto-detect operation when auto is set to disable.
5. If Auto is disabled, select the operation speed and duplex mode of the port in
“Speed/Duplex”.
6. Select the Enable/Disable state of Flow Control function of port.
7. Select the Enable/Disable state of Power Saving function of port. If it is enabled,
port will go to low power state when link down.
8. Select MDI/MDI-X operation mode. It could be “Auto”, “MDI”, or “MDI-X”. “Auto”
can auto-detect and get the correct connection mode. “MDI” will set the port to
MDI mode for switch-to-switch connection. “MDI-X” will set the port to MDI-X
mode for user PC connection.
9. Click [Apply] after any modification.

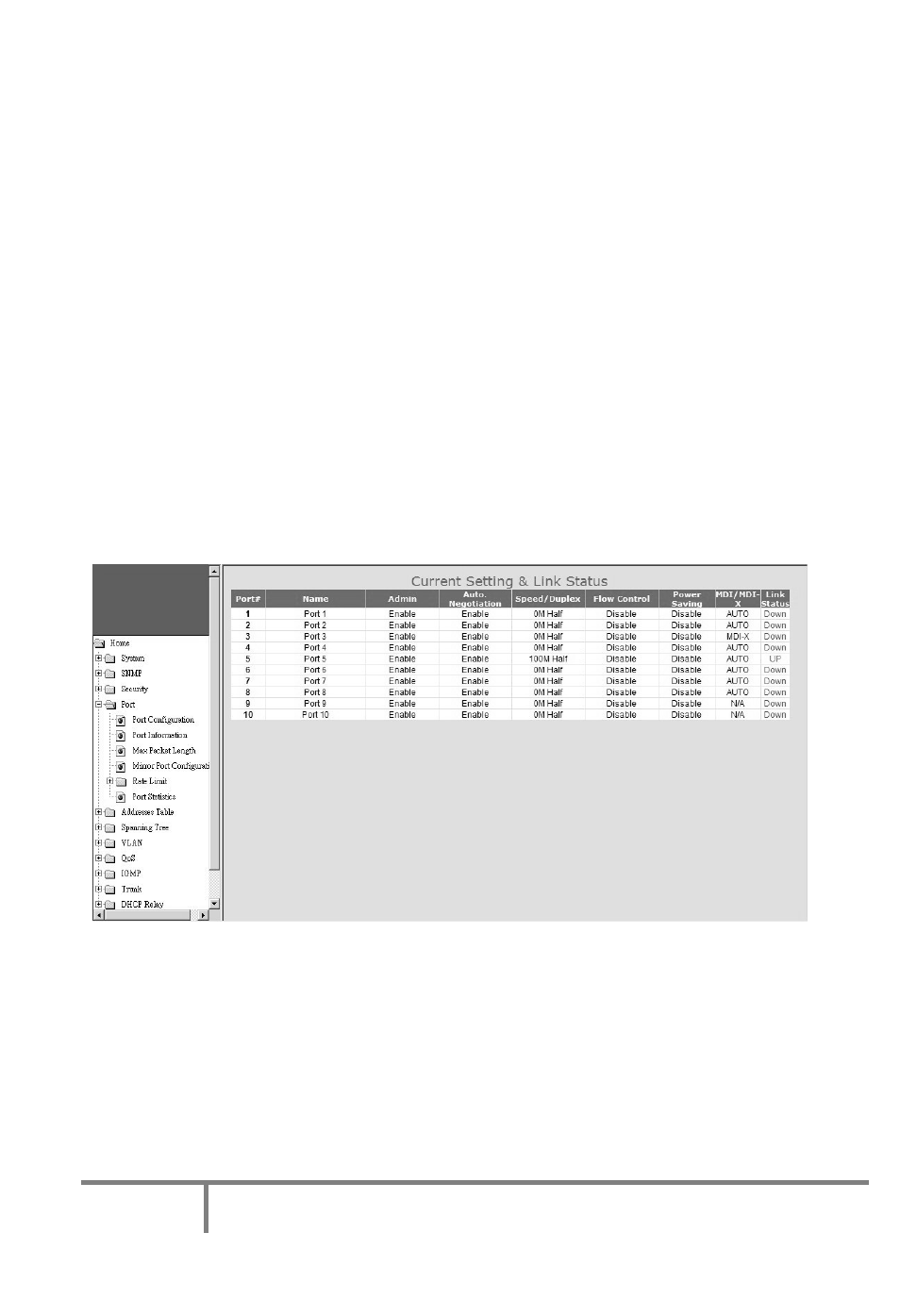

2). Port Information
Current Setting & Link Status : It is current status of ports.
Name: The name of the port.
Admin: It shows current port enable/disable status.
Auto: It shows current Auto enable/disable status of ports.
Speed/Duplex: It shows current working speed and duplex mode if ports are link up. Or
the setting of speed/duplex when auto is disable.
Flow Control: It shows current Flow Control function status of ports.
Power Saving: It shows current Power Saving enable/disable status of ports.
