1 Introduction
Keyboard

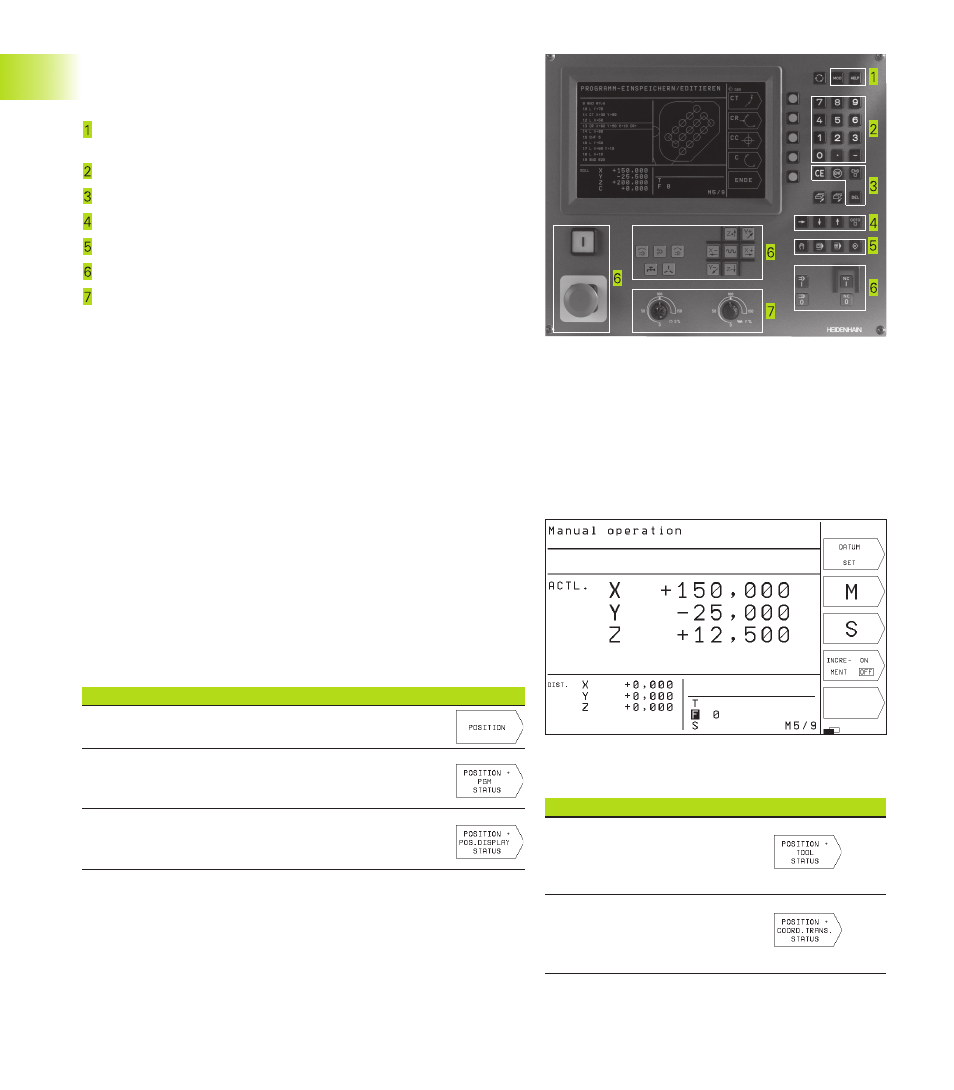

The figure at right shows the keys of the keyboard grouped
according to their functions:
MOD function,
HELP function
Numerical input
Dialog buttons
Arrow keys and GOTO jump command
Modes of Operation
Machine control buttons
Override control knobs for feed rate/spindle speed
The functions of the individual keys are described in the foldout of
the front cover. The exact functioning of the machine control
buttons, e.g. NC START, is described in more detail in your Machine
Manual.
1.3 Modes of Operation
The TNC offers the following modes of operation for the various
functions and working steps that you need to machine a workpiece:
Manual Operation and Electronic Handwheel
The Manual Operation mode is required for setting up the machine
tool. In this operating mode, you can position the machine axes
manually or by increments. Datums can be set by the usual
scratching method or by using the TS 220 triggering touch probe.
The TNC also supports the manual traverse of the machine axes
using a HR electronic handwheel.
Soft keys for selecting the screen layout
Screen windows
Soft key
Positions
Left: positions, right: general
program information
Left: positions, right: positions and
Coordinates
Screen windows
Soft key
Left: positions, right:
information on
tools
Left: positions, right:
coordinate
transformations
