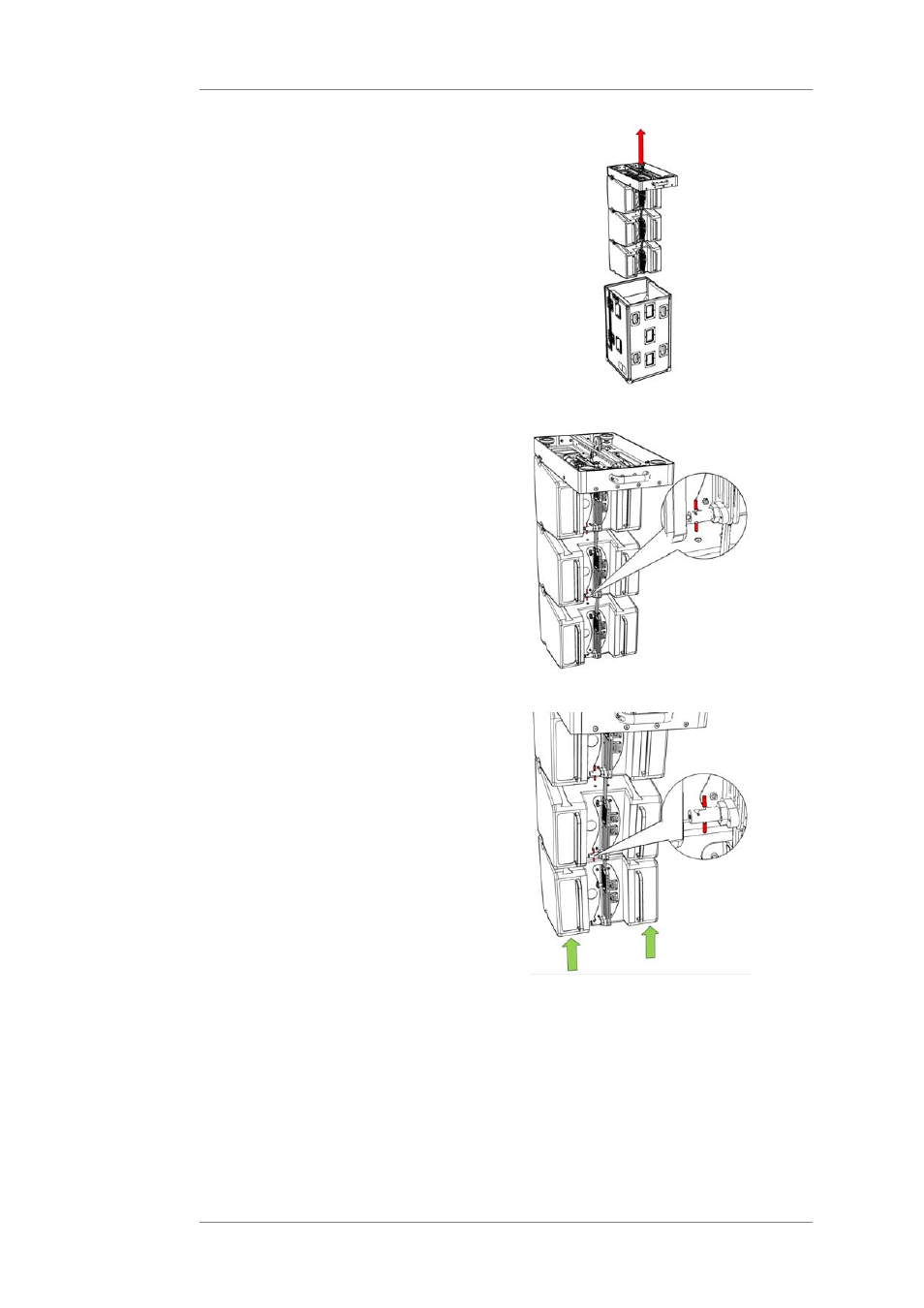

4. Release the flying frame
connector from the magnet
and fold it downwards
between the connecting
plates of the SEQUENZA 5 W
speaker.
Align the drill hole of the
connector with the drill hole
that has been determined
for the calculated tilt angle.
Secure the connection with
the ball joint pin.
5. Connect the flying frame
with the hoist.
Completely lift the triple out
of the transport case.
6. To allow the speakers
to securely and reliably
connect, pull the lower
speaker upwards until all
spring bolts click into place.
Check the SEQUENZA 5 W
connector and push it into
the previously drawn back
spring bolt, if necessary.
