Consult the print-out from the simulation software CON:SEQUENZA+ to find
out which position on the VariMount scale the stand adapter must have.

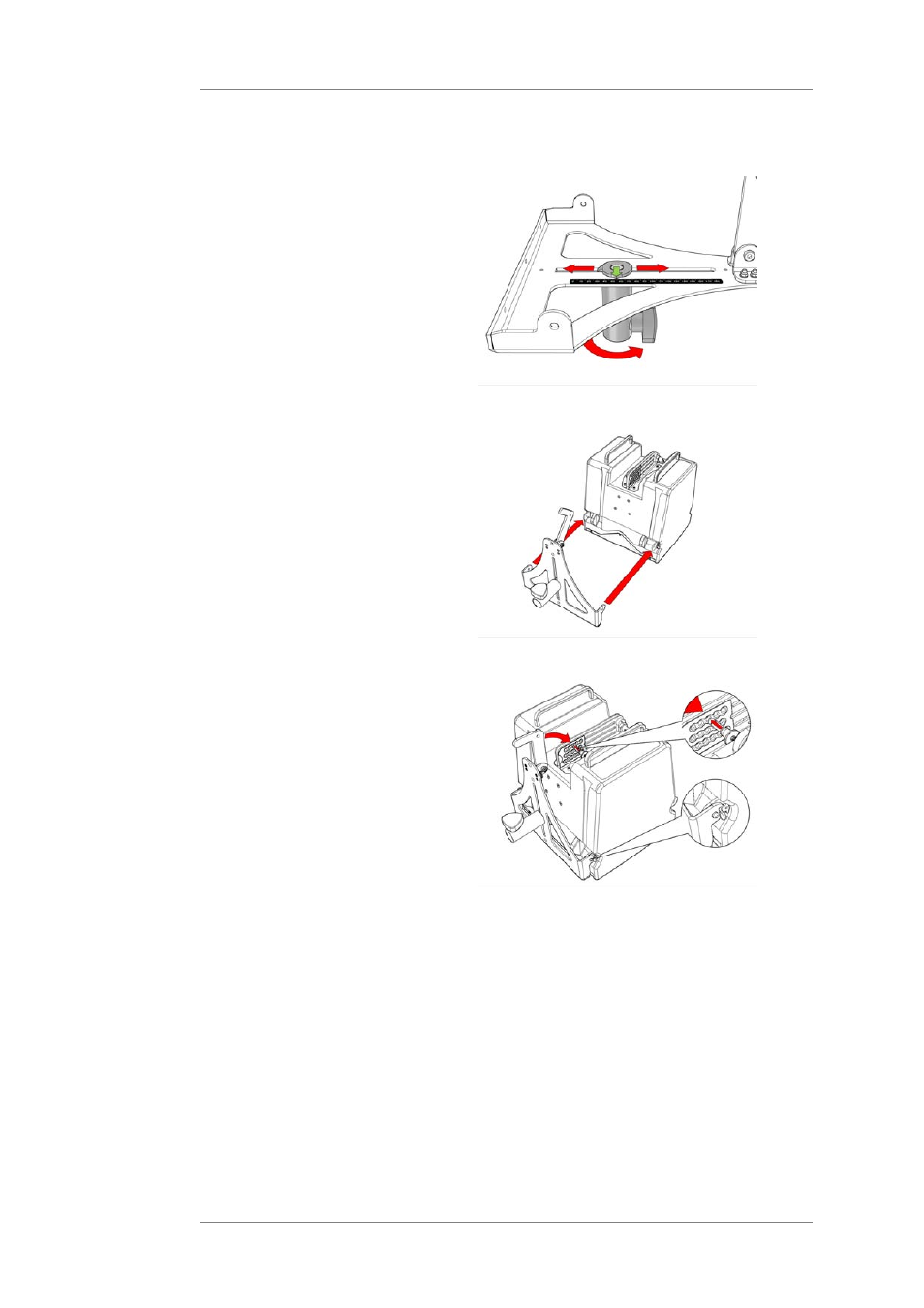

3. Slide the stand adapter to
the determined value on the
scale.
Tighten the stand adapter or
the TV spigot.
4. Connect the SEQUENZA 5
VariMount adapter with
a SEQUENZA 5 W speaker,
as described in chapter
'Safe Connecting and
Disconnecting of the
Products' on page 21.
Make sure that the joint bar
of the VariMount adapter
pushes the speaker's safety
latch into the enclosure.
5. Make sure you can see the
red dot on the safety latch.
Fold the VariMount-
Connector between the joint
bars of the speaker.
Secure the VariMount
connector with a ball lock
pin.
• If you have mounted the SEQUENZA 5 VariMount adapter with the stand adapter
because you want to place the array on a stand, please read sections 6a to 8a.
• If you have mounted the SEQUENZA 5 VariMount adapter with the TV spigot because
you want to hang the array with a pipe clamp, please read sections 6b bis 8b.
Stand alternative:
