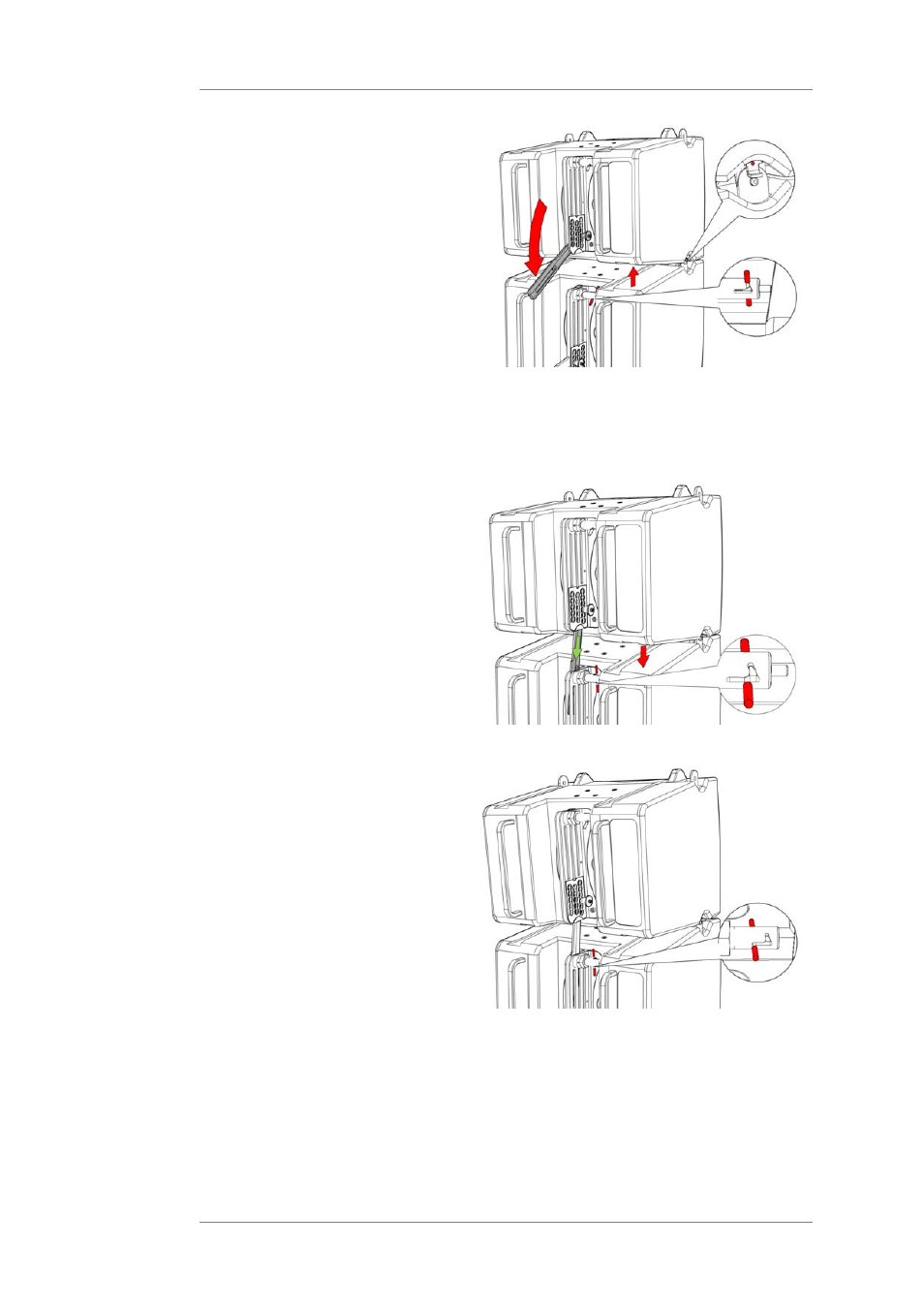

2. Make sure you can see the
red dot on the safety latch.
Position the lower speaker's
spring bolt into its original
starting position. (See
chapter 'Using the Spring
Bolt' on page 20)
Using a further ball lock pin,
secure the connector to the
speaker using the tilt angle
drill hole calculated by the
software CON:SEQUENZA+.
Push the connector between
the lower speaker's
connecting plates until it
clicks into place and the
spring bolt catches in its
waiting position.
3. When the connector is
guided by the spring
bolt, lower the upper
speaker until the spring
bolt completely catches
and snaps into is locking
position.
4. Check that the spring bolts
protrude at least 0.5 mm
out of the drill holes at the
entire circumference.
The speaker is now
completely mounted and
secured.
If your configuration
provides for it, you
can connect a further
SEQUENZA 5 W speaker
onto the present speaker,
as described in chapter
'Safe Connecting and
Disconnecting of the
Products' on page 21.
