User's manual K&F SEQUENZA 5 incl. accessories
KLING & FREITAG GMBH © 2015 Version 4.1 Page 55 of 88

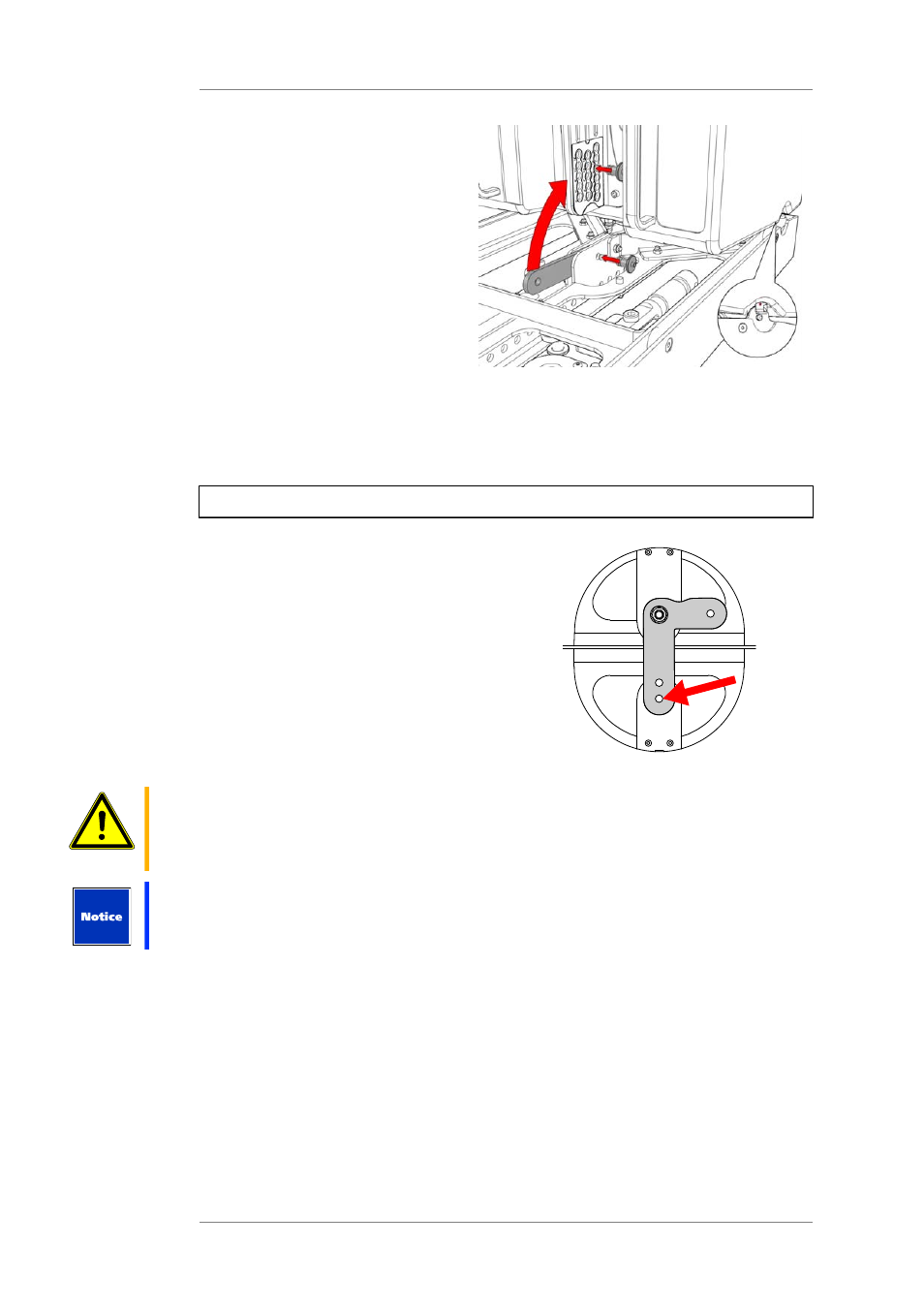

2. Insert the flying frame
connector into the
SEQUENZA 5 flying frame
and secure it with a ball lock
pin.
Fold the flying frame
connector upwards between
the SEQUENZA 5 W
speaker's connecting plates
and position it in the desired
tilt angle drill hole.
Secure the connection with
the ball lock pin.
If you don't want to mount any more speakers, then you can now wire the speakers.
Further information in chapter 'Wiring' on page 65. Detailed information for connecting
the speakers and configuring the K&F system amplifier TOPAS or the K&F SystemRack is in the
hardware manuals.
9.5.4 Mounting SEQUENZA 5 B to SEQUENZA 5 B, Stacked
To setup a SEQUENZA 5 B speaker with
a further SEQUENZA 5 B speaker, you
must use the L-bracket provided with the
speaker.
Please note that the outer drill hole of
the L-bracket's long side is connected to
the next speaker.
Caution
In general, make sure to just set up as many speakers as the simulation software
CON:SEQUENZA+ calculates to be acceptable.
It is forbidden to mount additional speakers onto the array!
A cardioid configuration is not intended.
A tilt between two bass speakers (downtilt) is not intended.
