User's manual K&F SEQUENZA 5 incl. accessories
KLING & FREITAG GMBH © 2015 Version 4.1 Page 54 of 88

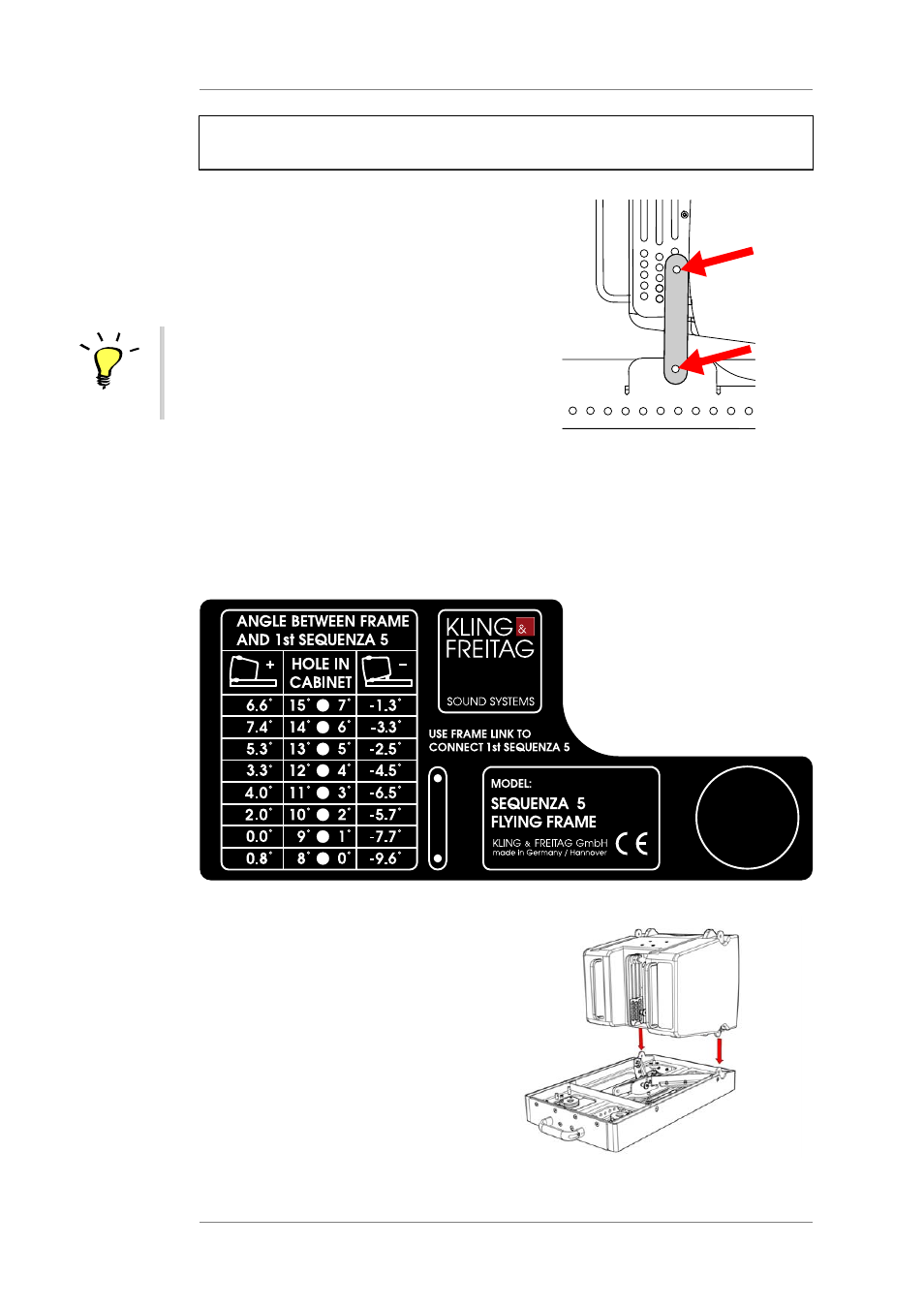

9.5.3 Mounting SEQUENZA 5 W to SEQUENZA 5 Flying Frame,
Stacked
When mounting a SEQUENZA 5 W
speaker with a SEQUENZA 5 flying frame,
you must use the flying frame connector
that is provided with the flying frame.
Upon delivery of the flying frame, the
flying frame connector is secured in its
park position with a ball lock pin.
Tip
To ensure that the flying frame
connector is available at all times
and cannot get lost, we recommend
fastening it back into its park position
on the flying frame when not in use.
You will get the specifications for the setting angle of the bottom speaker on the frame from
the simulation software CON:SEQUENZA. CON:SEQUENZA+
To determine the correct drill hole for the desired tilt angle of the first speaker, look at
the table on the flying frame for the angle indication and number of the corresponding
drill hole. See following illustration. In the left column, positive angles are denoted and
in the right are negative angles. In the middle column, you will find the numbers of the
corresponding drill hole in the speaker enclosure.
1. Connect the SEQUENZA 5 W
speaker with the rigging
frame, as described in
chapter 'Safe Connecting
and Disconnecting of the
Products' on page 21.
Make sure you can see the
red dot on the safety latch.
