Replacing back units battery, Figure 9-5 - opening the back clamp, Figure 9-6 - replacing batteries – Gasboy Fuel Point PLUS Station User Manual
Page 104
104
Fuel Point PLUS Station Equipment Manual
6.
Replace the gasket on the µWNR assembly lid:
a.
Remove the two washers
b.
Replace the old gasket with the new one provided with the batteries
c.
Replace the two washers
7.
Replace the lid and secure it with the two Phillips screws
8.
Verify that the indication LED blinks when the unit is tilted
9.
Insert the µWNR assembly back in place
10.
Attach the front cover to the back cover, verifying that there are no gaps
11.
Secure the three Allen Screws.
9.3.2.2. Replacing Back Units Battery
1.
Remove the two Allen screws that secure the back clamp (see
) and open it

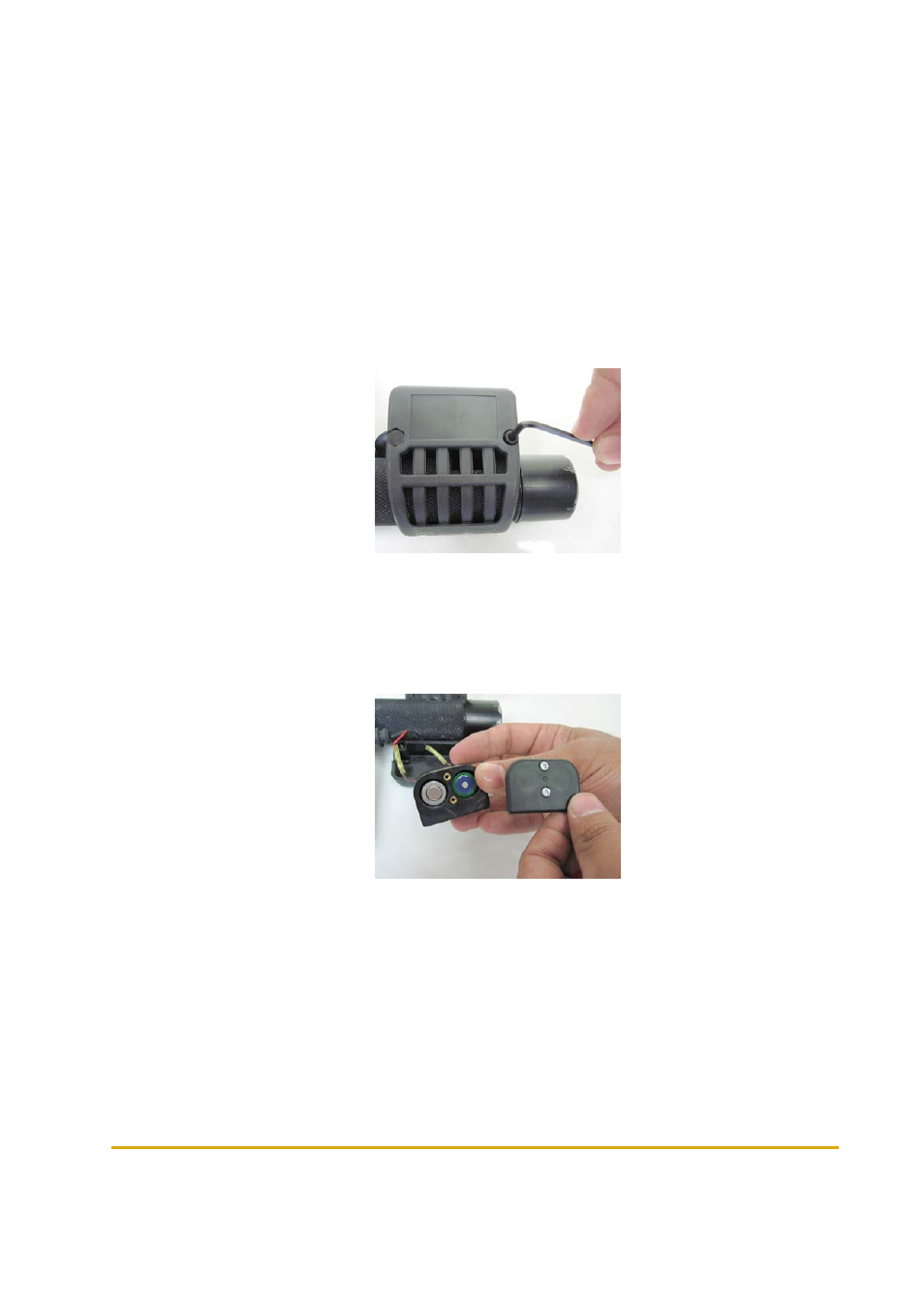

Figure 9-5 - Opening the Back Clamp
2.
Pull out the µWNR assembly carefully, to avoid damaging the wires
3.
Release the two Phillips screws and take off the lid
4.
Slide the batteries out
5.
Slide a new set in, following the polarity signs on the battery compartment (see
Figure 9-6 - Replacing Batteries
