5.5. Connectors & Indicators
shows the Wireless Gateway main components.

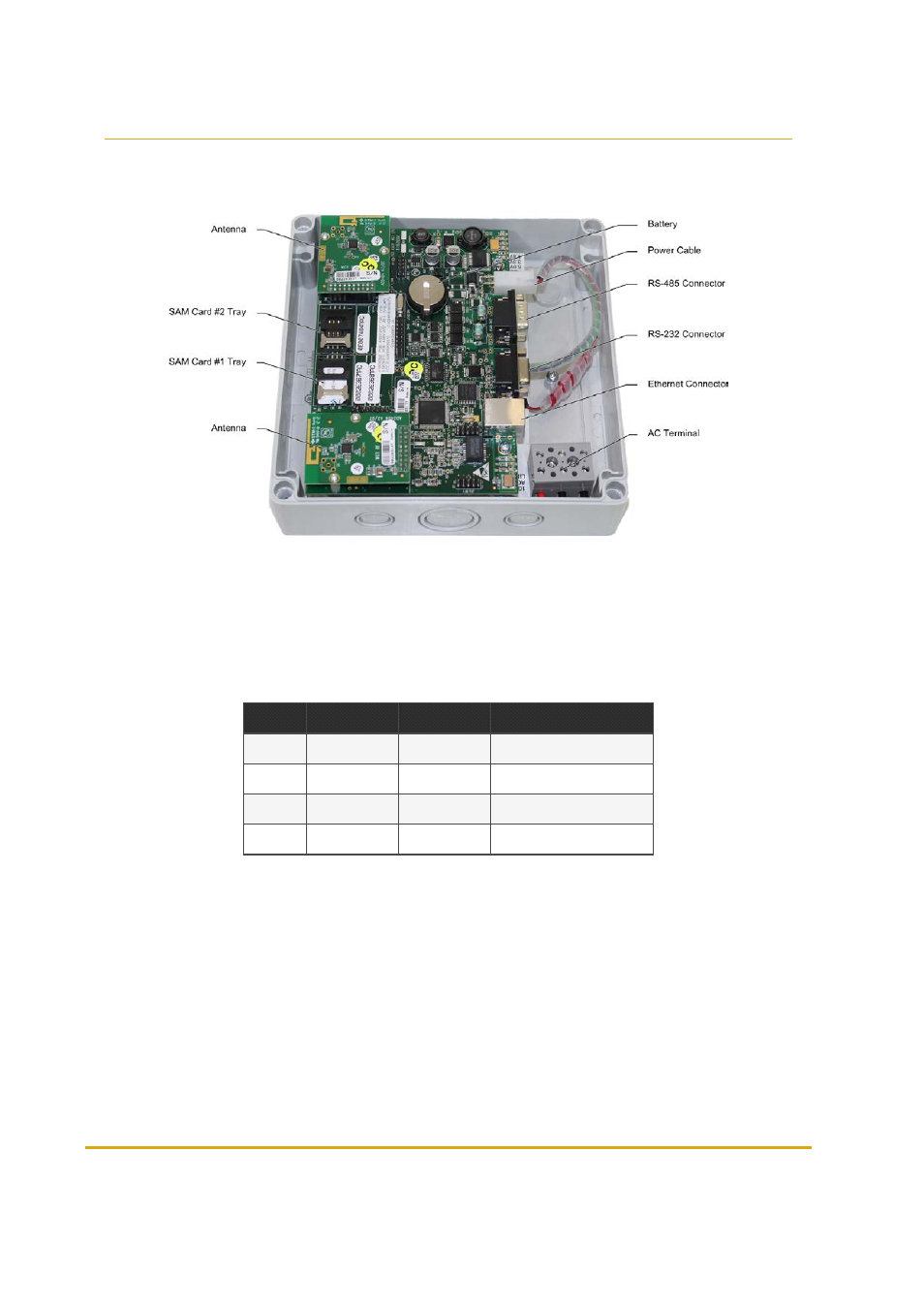

Figure 5-4 - Wireless Gateway Components
5.5.1. DC Power Input CN8 Molex Connector
(See
Pin. #
Description
Wire Color
Notes
4
DC INPUT +V
Red
2
DC INPUT -V
Black
1
GND
Yellow/Green
Connect to nearest ground
3
PF
Not in use
Table 5-1 - DC Power Input Connector Pinout
5.5.2. RS-485 Communication CN12 D9P Connector
(See
