Gasboy Fuel Point PLUS Station - Manual (Page 119)

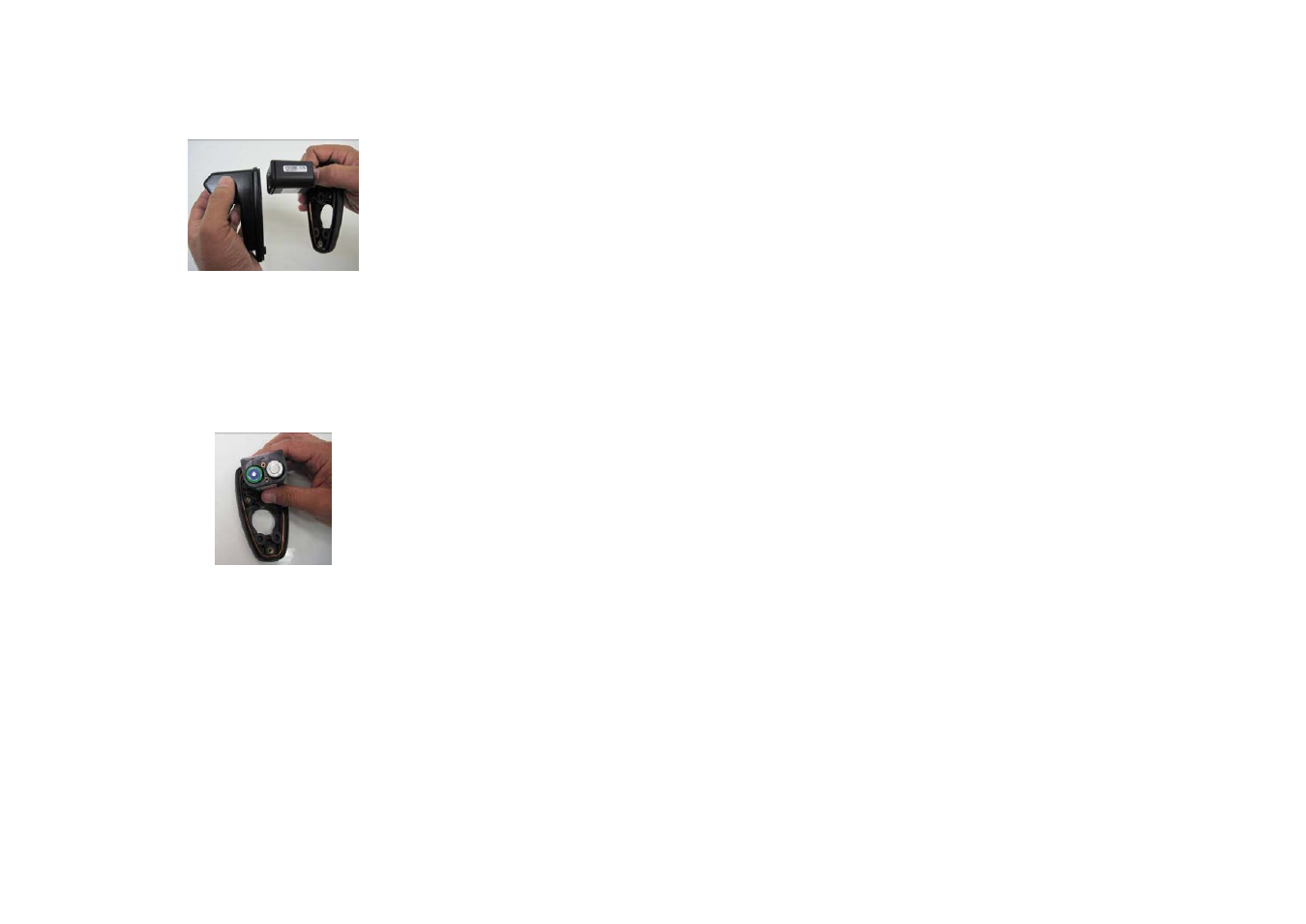

Figure 10. Removing the µNR Assembly
3. Release the two Phillips screws and take off the
lid
4. Slide the batteries out
5. Slide a new set in, following the polarity signs on
the battery compartment (see Figure 11)
Figure 11. Replacing Batteries
Warning: Do not mix old and new batteries or
battery types. Use only P/N 812539200
(Manufacturer P/N XENO XLP-055F)
6. Replace the lid and secure it with the two Phillips
screws.
7. Verify that the indication LED blinks when the
unit is tilted
8. Insert the µNozzle Reader assembly back in
place
9. Attach the front cover to the back cover,
verifying that there are no gaps
10. Secure the three Allen Screws.
Note: Discharged Lithium and Lithium Ion
batteries are currently designated to be disposed of
in normal trash. However, users should contact
their municipal waste disposal facility prior to
discarding any used battery in normal trash.
