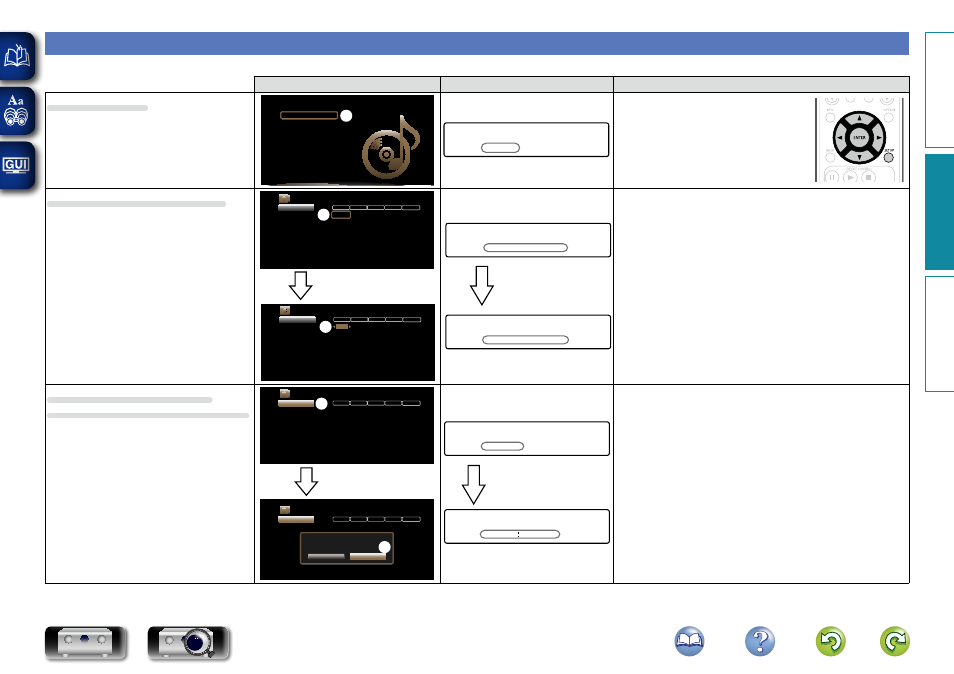

Examples of menu and front display
Below we describe typical examples of displays on the TV screen and on the set’s display window.
Menu display
Front display
Description
Top menu display
Setup Menu
Audio
Video
Inputs
Speakers
Network
General
Setup Assistant
w
*SETUP MENU
Audio
w
q
Press
SETUP
to display the menu screen.
w
TV screen: Displays the selected line.
Display: Displays the selected item.
• Use
ui
to move to the item you want to
set.
Display when changing settings
DIGITAL ANALOG
HDMI
COMP
VIDEO
Inputs/Input Assign
Set Defaults
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
TV AUDIO
AUX1
AUX2
CD
1
2
3
4
5
-
Front
6
-
1
2
3
4
6
-
Front
-
5
1
2
3
-
-
-
-
-
-
1
2
-
-
3
-
Front
-
-
COAX1
COAX2
-
-
-
OPT1
-
-
OPT2
Changes HDMI input assignments
q
DIGITAL ANALOG
HDMI
COMP
VIDEO
Inputs/Input Assign
Set Defaults
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
TV AUDIO
AUX1
AUX2
CD
1
2
3
4
5
-
Front
6
-
1
2
3
4
6
-
Front
-
5
1
2
3
-
-
-
-
-
-
1
2
-
-
3
-
Front
-
-
COAX1
COAX2
-
-
-
OPT1
-
-
OPT2
Changes HDMI input assignments
e
Press
ENTER
.
*INPUT ASSIGN
CBL/SAT [HDMI1 ]
q
*INPUT ASSIGN
CBL/SAT •HDMI1 –
e
Press
ENTER
.
q
TV screen: Displays the selected line.
Display: Displays the selected item.
• Use
ui
to move to the item you want to set.
w
Press
ENTER
to set to the mode in which the setting can be made.
e
0 1
is displayed at the sides of items whose setting can be
changed. Use
o
p
to change to the desired setting.
Display when returning to the
settings in effect at time of purchase
DIGITAL ANALOG
HDMI
COMP
VIDEO
Inputs/Input Assign
Set Defaults
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
TV AUDIO
AUX1
AUX2
CD
1
2
3
4
5
---
Front
6
-
1
2
3
4
6
---
Front
-
5
1
2
3
-
-
-
-
-
-
1
2
-
-
3
-
Front
-
-
COAX1
COAX2
-
---
---
OPT1
-
-
OPT2
Return settings to the default
Reset to the default values?
Reset
Cancel
w
Press
ENTER
.
DIGITAL ANALOG
HDMI
COMP
VIDEO
Inputs/Input Assign
Set Defaults
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
TV AUDIO
AUX1
AUX2
CD
1
2
3
4
5
-
Front
6
-
1
2
3
4
6
-
Front
-
5
1
2
3
-
-
-
-
-
-
1
2
-
-
3
-
Front
-
-
COAX1
COAX2
-
-
-
OPT1
-
-
OPT2
Return settings to the default
q
*INPUT ASSIGN
Reset? •Cancel
w
*INPUT ASSIGN
Default
q
Press
ENTER
.
q
Press
u
to select “Set Defaults” or “Default”, then press
ENTER
.
w
Press
o
to select “Reset”, then press
ENTER
.
