165

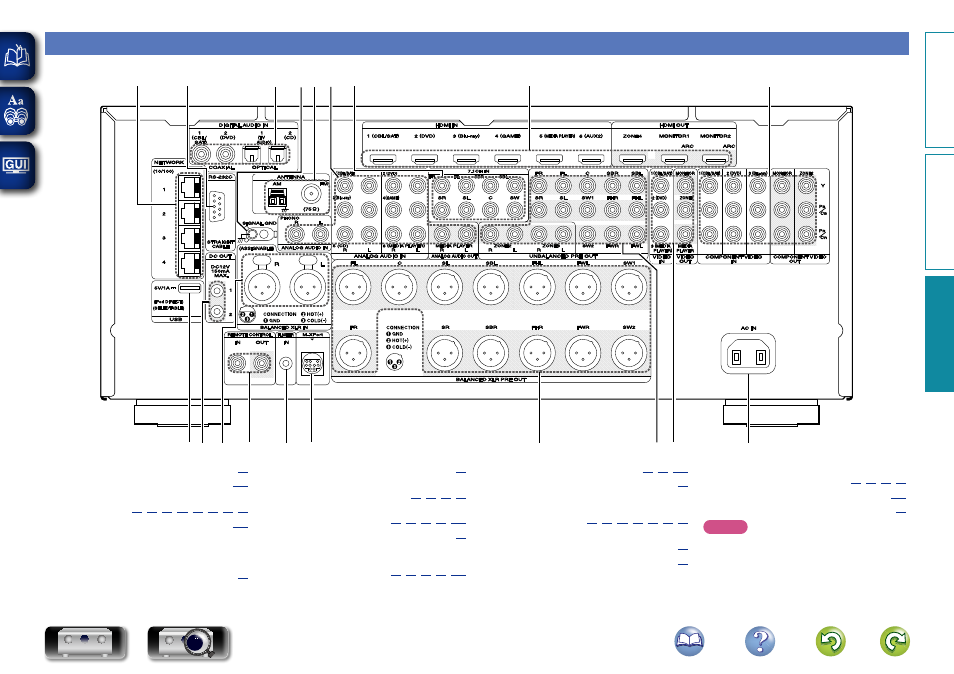

Rear panel
See the page indicated in parentheses ( ).
q w e r t y u i o Q0
Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 Q9
q USB port ······················································ ( 24 )
w DC OUT jacks ············································ ( 101 )
e BALANCED XLR IN terminals
··························· ( 17 , 18 , 19 , 20 , 21 , 22 , 23 , 26 )
r REMOTE CONTROL jacks ························ ( 100 )
t FLASHER IN jack
Used when using a control BOX or other such
control devices to control this unit.
y M-XPort connector ····································· ( 29 )
u BALANCED XLR PRE OUT terminals ········ ( 32 )
i UNBALANCED RCA PRE OUT terminals
··················································· ( 31 , 95 , 96 , 97 )
o Video connectors
(VIDEO) ······························ ( 17 , 18 , 19 , 23 , 112 )
Q0 AC inlet (AC IN) ··········································· ( 34 )
Q1 Component video connectors
(COMPONENT VIDEO)
··········································· (
17 , 18 , 19 , 20 , 112 )
Q2 HDMI connectors ·························· ( 11 , 12 , 112 )
Q3 7.1ch input connectors (7.1CH IN) ············ ( 30 )
Q4 Analog audio connectors
(ANALOG AUDIO)
································· (
18 , 19 , 20 , 21 , 23 , 26 , 27 )
Q5 FM/AM antenna terminals
(ANTENNA) ················································· ( 28 )
Q6 SIGNAL GND terminal ······························· ( 27 )
Q7 Digital audio connectors
(DIGITAL AUDIO IN) ················· ( 17 , 18 , 19 , 26 )
Q8 RS-232C connector ··································· ( 101 )
Q9 Network connectors (NETWORK) ············· ( 33 )
NOTE
Do not touch the inner pins of the connectors on
the rear panel. Electrostatic discharge may cause
permanent damage to the unit.
