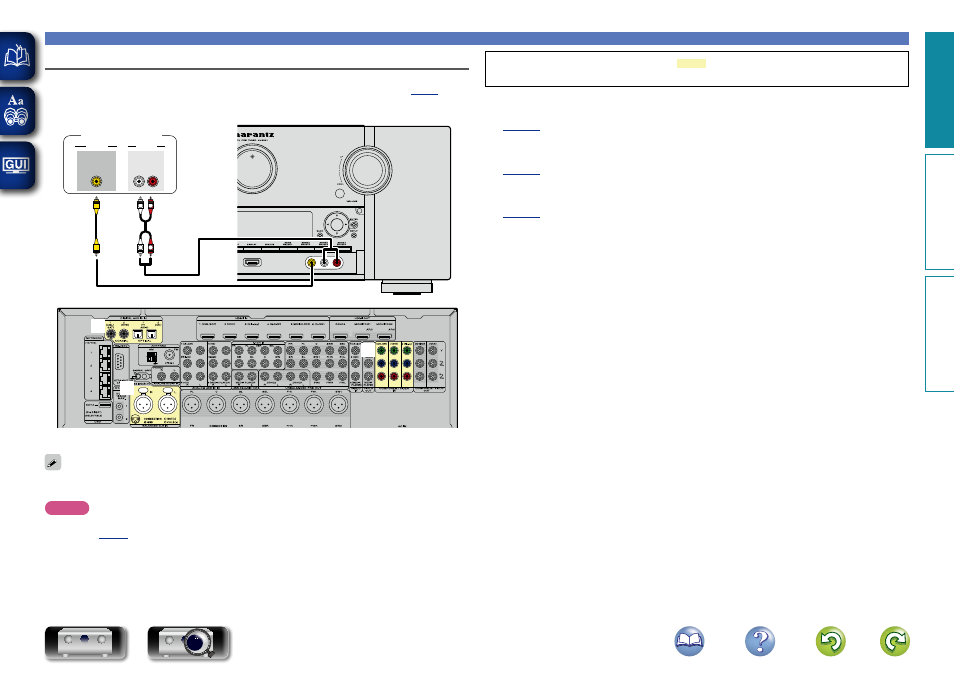

Connecting an HDMI-incompatible device
Connecting a digital camcorder
This section describes how to connect when your digital camcorder does not support HDMI connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (
vpage 9 ).
R L
R L
OUT
AUDIO VIDEO
VIDEO AUDIO
R L
OUT
Digital camcorder
GFront panelH
a
s
d
GRear panelH
You can enjoy games by connecting a game machine via the AUX1 input connector. In this case, select
the input source to “AUX1”.
NOTE
When a non-standard video signal from a game machine or some other source is input, the video conversion
function (
vpage 7 ) might not operate. In this case, use the monitor output of the same connector
as the input.
You can also make connections for the part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “AUX1” in “Input Assign” – “DIGITAL”
(
vpage 134 ).
To make connections for connectors indicated by s
Assign a connector to which an audio cable is inserted to “AUX1” in “Input Assign” – “ANALOG”
(
vpage 134 ).
To make connections for connectors indicated by d
Assign a connector to which a video cable is inserted to “AUX1” in “Input Assign” – “COMP”
(
vpage 134 ).
