Connecting an HD Radio receiver
• By connecting a HD Radio antenna to this unit, you can receive HD Radio programs.
• HD Radio broadcasting currently is available in the United States and select other countries.
• After connecting the antenna and receiving a broadcast signal (
stations”), fix the antenna with tape in a position where the noise level becomes minimal.
n AM loop antenna assembly
1
Put the stand section through the bottom of the
loop antenna from the rear and bend it forward.
Stand
Square
hole
Projecting
part
Loop
antenna
2
Insert the projecting part into the square hole in
the stand.
n Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Standing alone
Use the procedure shown above to assemble.
Nail, tack, etc.
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.
• If the signal has noise interference, connect the ground terminal (GND) to reduce noise.
• If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For
details, inquire at the retail store where you purchased the unit.
Connecting an HDMI-incompatible device
w
e
q

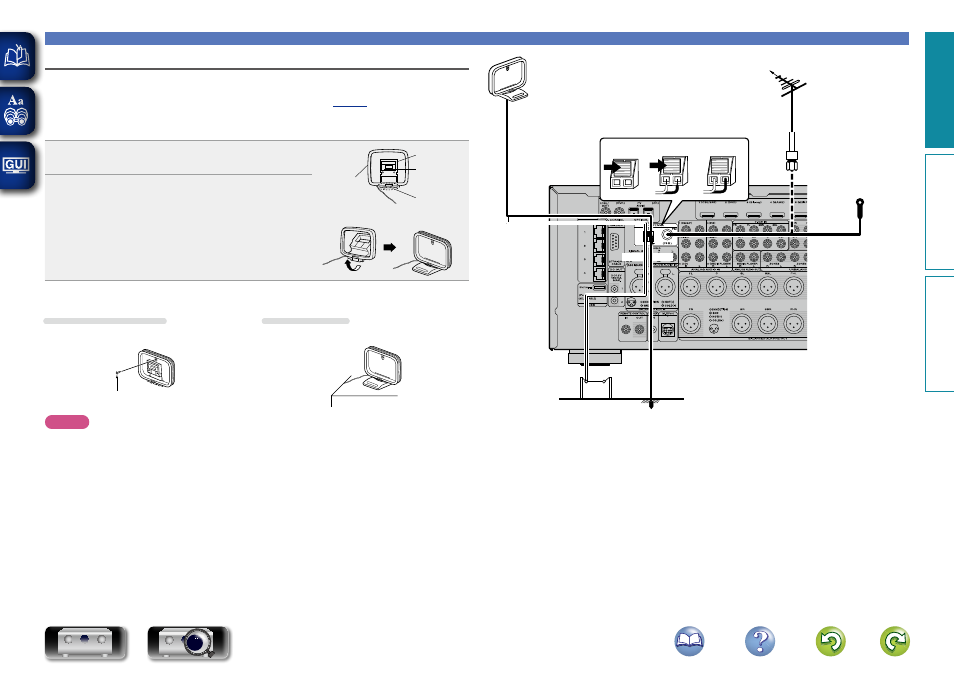

FM outdoor
antenna
Direction of broadcasting station
75 Ω coaxial
cable
FM indoor antenna
(for HD Radio
broadcasting, supplied)
Ground
AM outdoor
antenna
AM loop antenna (for HD Radio
broadcasting, supplied)
• To prevent interference, install at least 3.3
ft/1 m away from the antenna connected
to the this unit’s other AM tuner terminal.
