You can also make connections for the
part on the connection diagram. To make
connections for these connectors, you need to make the input connector settings.
To make connections for connectors indicated by a
Assign a connector to which an audio cable is inserted to “CBL/SAT” in “Input Assign” – “DIGITAL”
(
To make connections for connectors indicated by s
Assign a connector to which an audio cable is inserted to “CBL/SAT” in “Input Assign” – “ANALOG”
(

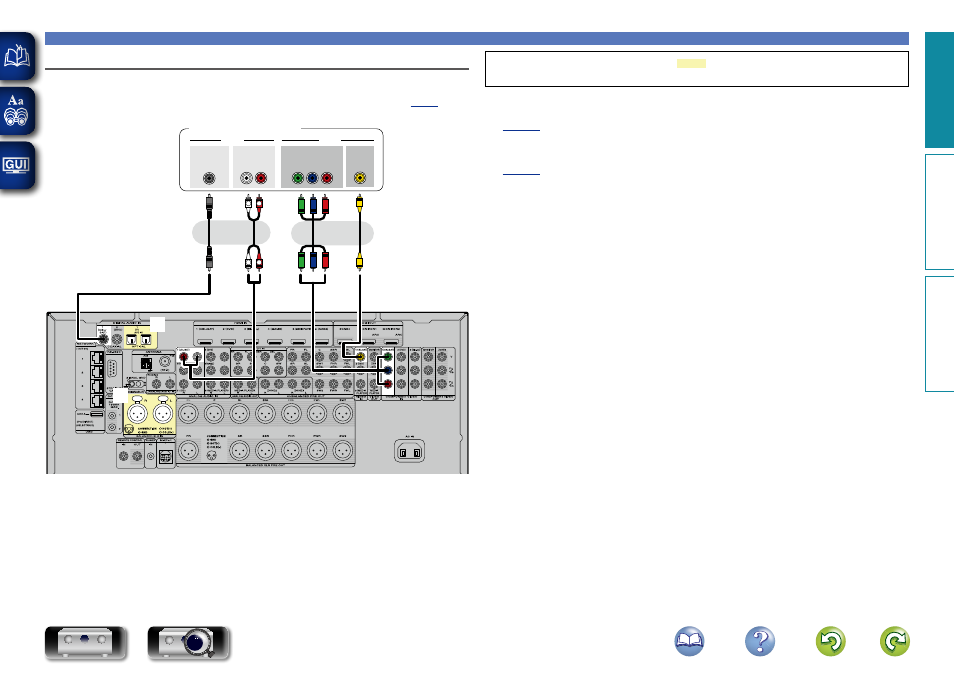

Connecting a set-top box (Satellite tuner/cable TV)
This section describes how to connect when your satellite tuner or cable TV does not support HDMI
connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (
