Page 214 LSI Corporation Confidential | July 2011
MegaRAID SAS Software User Guide Chapter 4: WebBIOS Configuration Utility | WebBIOS Dimmer Switch

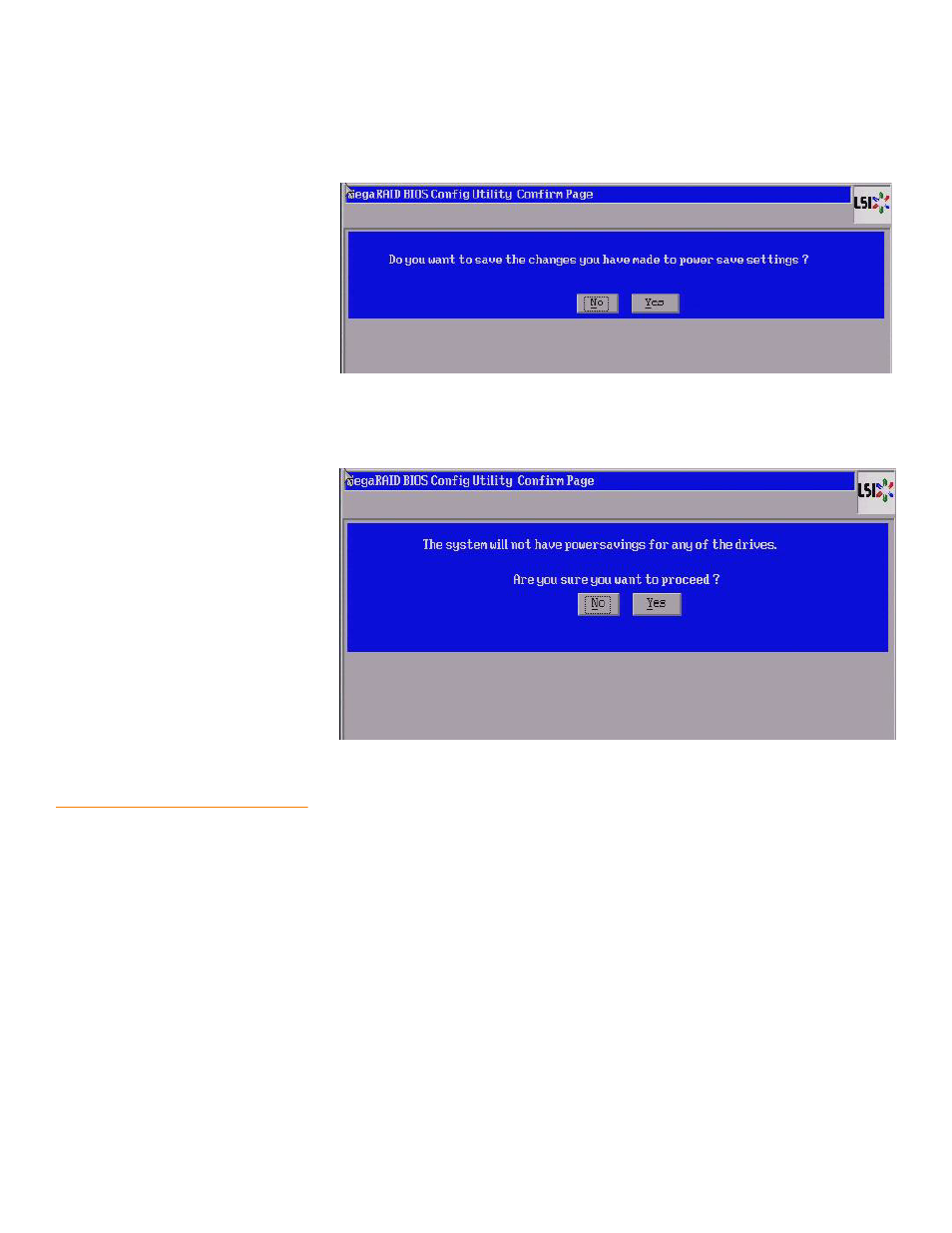

Figure 160: Confirm Page Dialog - Confirmation Message
If you do not select any option in the Power Save settings -- - Specify Power Save
Setting dialog ( Figure 157 ) and click Next, the following message appears.
Figure 161: Power-Save Settings Not Saved Message
4.15.1 Power-Save Mode You can select the drive standby time and the Power-Save mode by selecting the Auto,
Max, and Max without cache options in
Figure 158 .
1. Select the drive standby time using the drop-down list.
2. Select the power save mode by selecting one of the radio buttons.
3. Click Finish.
