LSI Corporation Confidential | July 2011 Page 425
MegaRAID SAS Software User Guide Chapter 11: Using MegaRAID Advanced Software | Recovery Advanced Software
2. In the Select Capacity field, use the drop-down selector to select the appropriate
capacity to use for changes to the base virtual drive.
3. Click Next.
The Enable MegaRAID Recovery – Create Snapshot Schedule wizard appears, as
shown in
Figure 289 . This wizard lets you to schedule the snapshots.
11.2.15 Scheduling Snapshots You can select an existing snapshot schedule or create a new snapshot schedule for the
virtual drive.
Follow these steps to schedule snapshots.
1. Select any one of the options shown in the Enable MegaRAID Recovery - Create
Snapshot Schedule wizard, as shown in the following figure, to schedule snapshots.

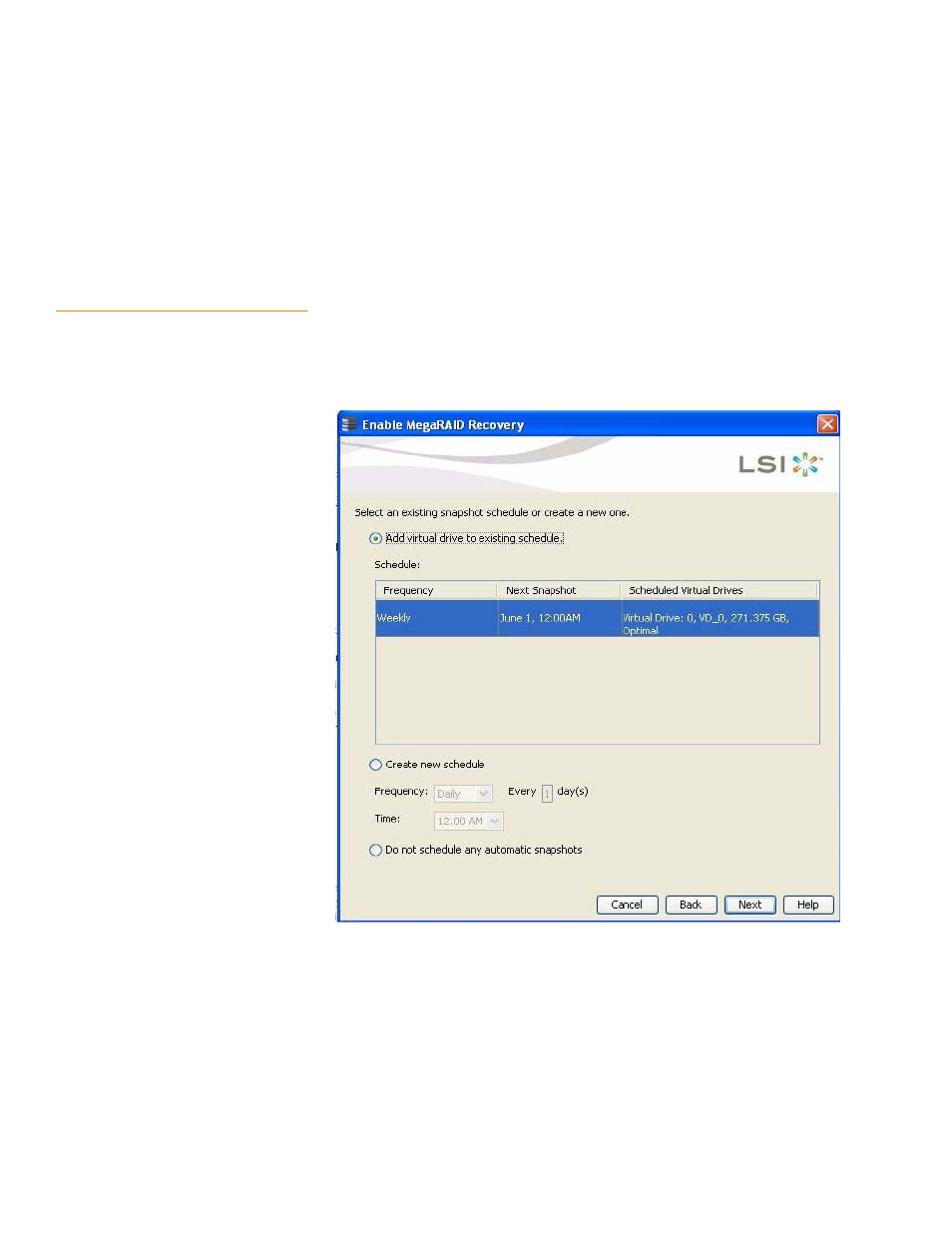

Figure 289: Enable MegaRAID Recovery - Create Snapshot Schedule Dialog
