92
 Delete: Please select one device in the Added device list and then click
to
remove.
 Status: means connection is OK and means connection failed.
 Delete；Select a device on the Added device list, click Delete button, system
disconnect device first and then remove its name from the list.
 Manual add: Click it to add the IPC manually. The port number is 37777. The default
user name is admin and password is admin.

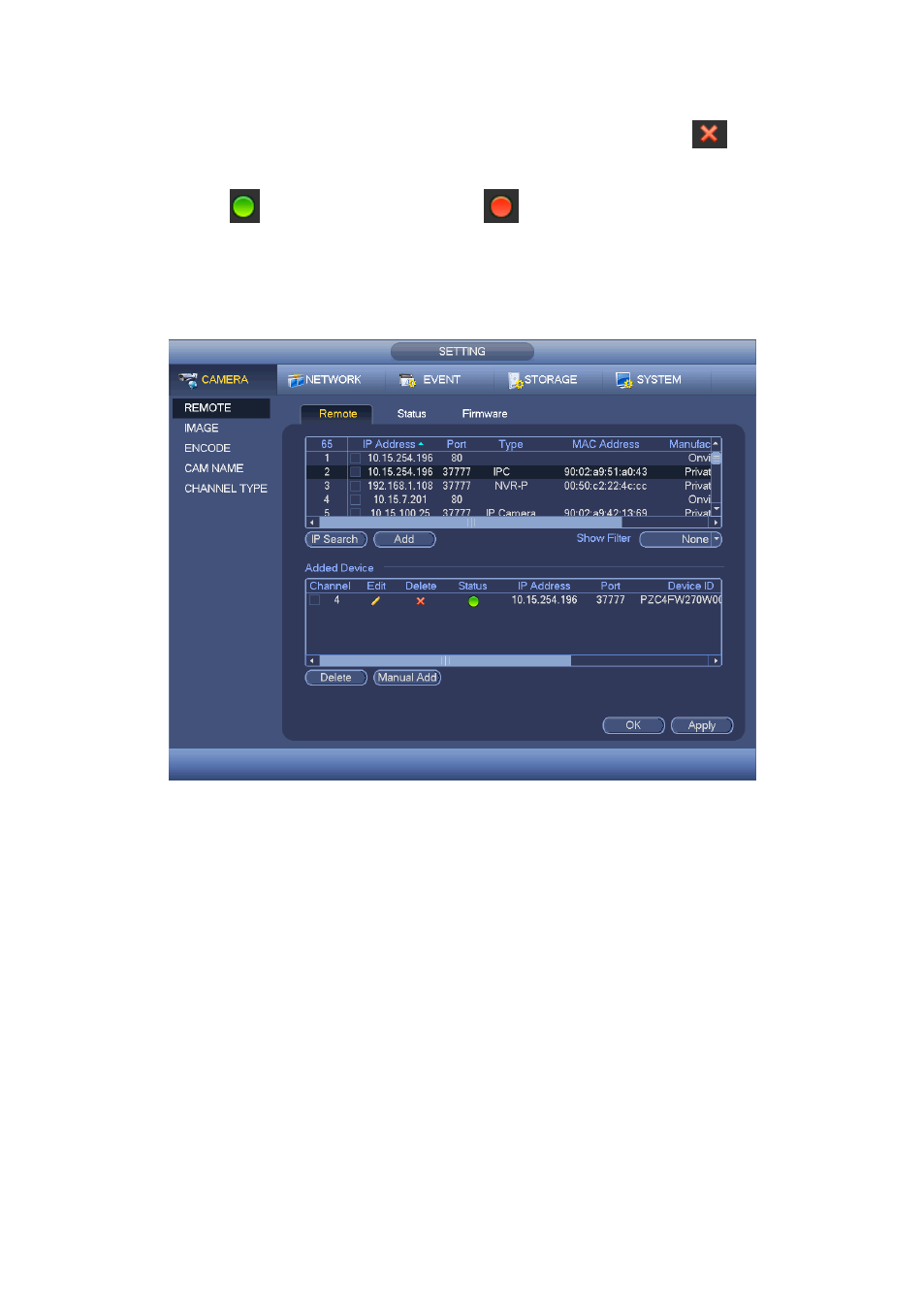

Figure 4-49
Click the Manual Add button; you can go to the following interface. See Figure 4-50.
Channel number：The dropdown list here displays unconnected channel number. You can
go to Figure 4-49 to set remote channel connection.
Please note:
 This series product supports the IPC from many popular manufactures such as Sony,
Hitachi, Axis, Samsung, Dynacolor, Arecont, Onvif and Dahua.
 System default IP address is 192.168.0.0 if you do not input IP address. System will
not add current IP address.
 You can not add two or more devices in the Manual Add interface (Figure 4-50). Click
OＫbutton, system connects to the corresponding front-end device of current channel
on the interface.
