150
 Transparency: Here is for you to adjust transparency. The value ranges from 128 to
255.
 Channel name: Here is for you to modify channel name. System max support 25-digit
(The value may vary due to different series). Please note all your modification here
only applies to DVR local end. You need to open web or client end to refresh channel
name.
 Time display: You can select to display time or not when system is playback.
 Channel display: You can select to channel name or not when system is playback.
 Resolution: There are four options: 1920×1080, 1280×1024(default),1280×
720,1024×768. Please note the system needs to reboot to activate current setup.
 Image enhance: Check the box; you can optimize the margin of the preview video.
Please highlight icon to select the corresponding function.
After completing all the setups please click save button, system goes back to the previous
menu.

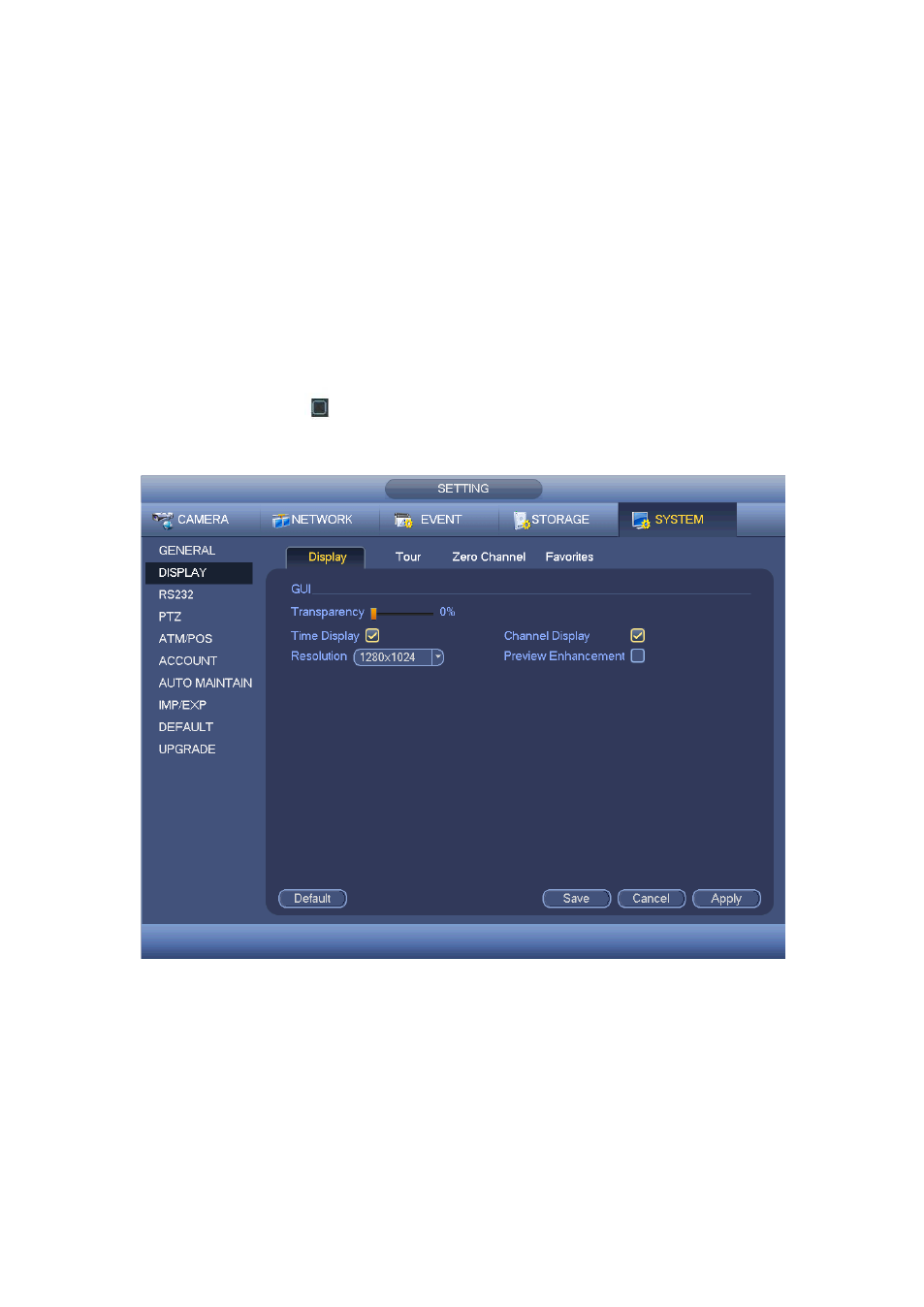

Figure 4-123
4.10.5.2.2 TV Adjust
Note
This function is for some series only.
Here is for you to adjust TV output setup. See Figure 4-124.
Please drag slide bar to adjust each item.
After all the setups please click OK button, system goes back to the previous menu.
