105

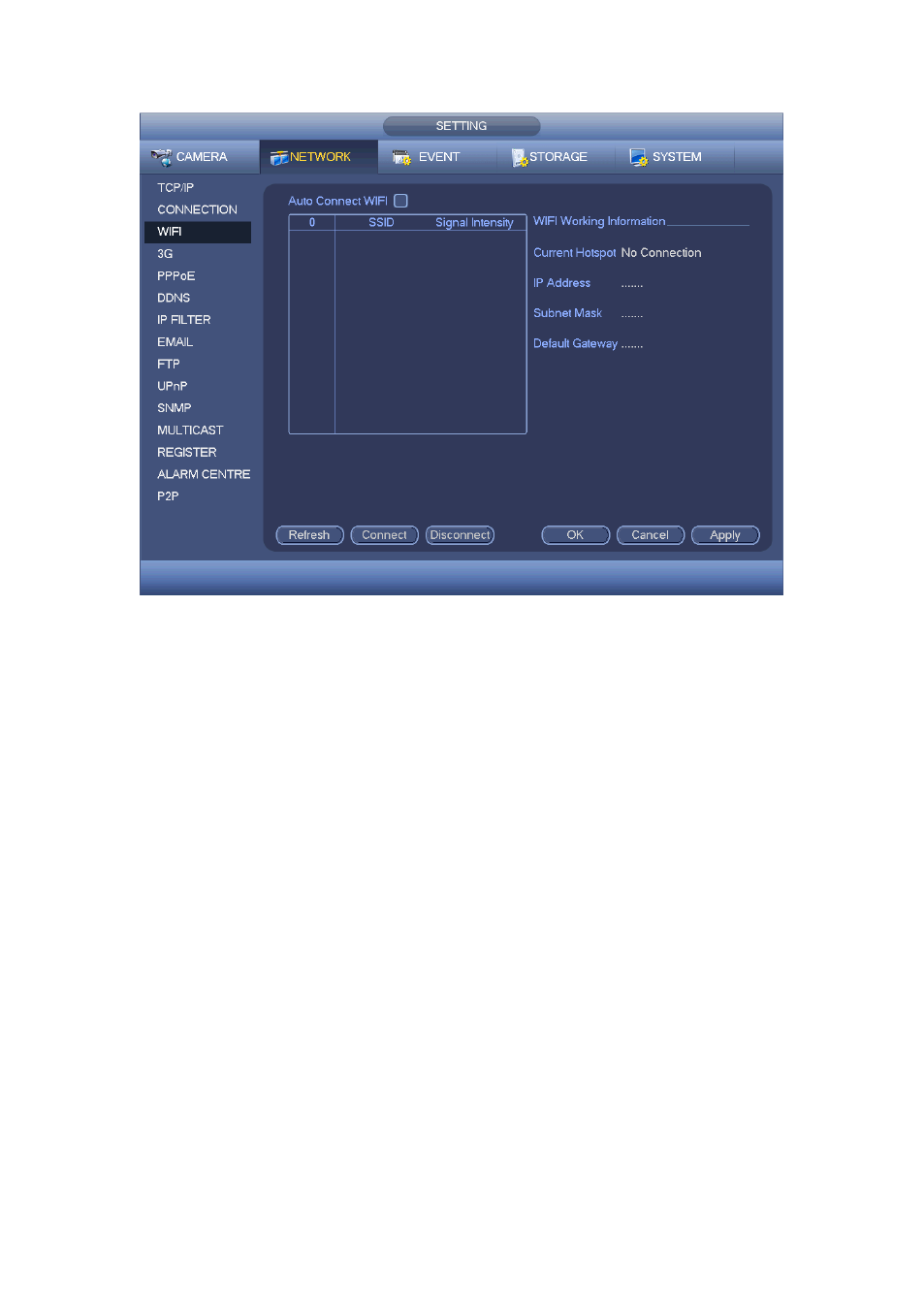

Figure 4-64
 WIFI working status: Here you can view current connection status.
Please note:
 After successful connection, you can see WIFI connection icon at the top right corner
of the preview interface.
 When the hotspot verification type is WEP, system displays as AUTO since the device
can not detect its encryption type.
 System does not support verification type WPA and WPA2. The display may become
abnormal for the verification type and encryption type.
After device successfully connected to the WIFI, you can view the hotspot name, IP
address, subnet mask, default gateway and etc.
4.10.2.4 3G
3G setup interface is shown as below. See Figure 4-65.
Please refer to the following contents for the parameter information.
 Pane 1: Display 3G signal intensity after you enabled 3G function.
 Pane 2: Display 3G module configuration information after you enabled 3G function .
 Pane 3: Display 3G module status information after you enabled 3G function.
It is to display current wireless network signal intensity such as EVDO, CDMA1x, WCDMA,
WCDMA, EDGE and etc.
 3G module: It is to display current wireless network adapter name.
 3G Enable/Disable: Check the box here to enable 3G module.
