AGI Security SYS-HC0851S2 - Manual (Page 124)

115
4.10.2.11 SNMP
SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic
network management frame of the network management system. The SNMP widely used
in many environments. It is used in many network device, software and system.
You can set in the following interface. See Figure 4-76.

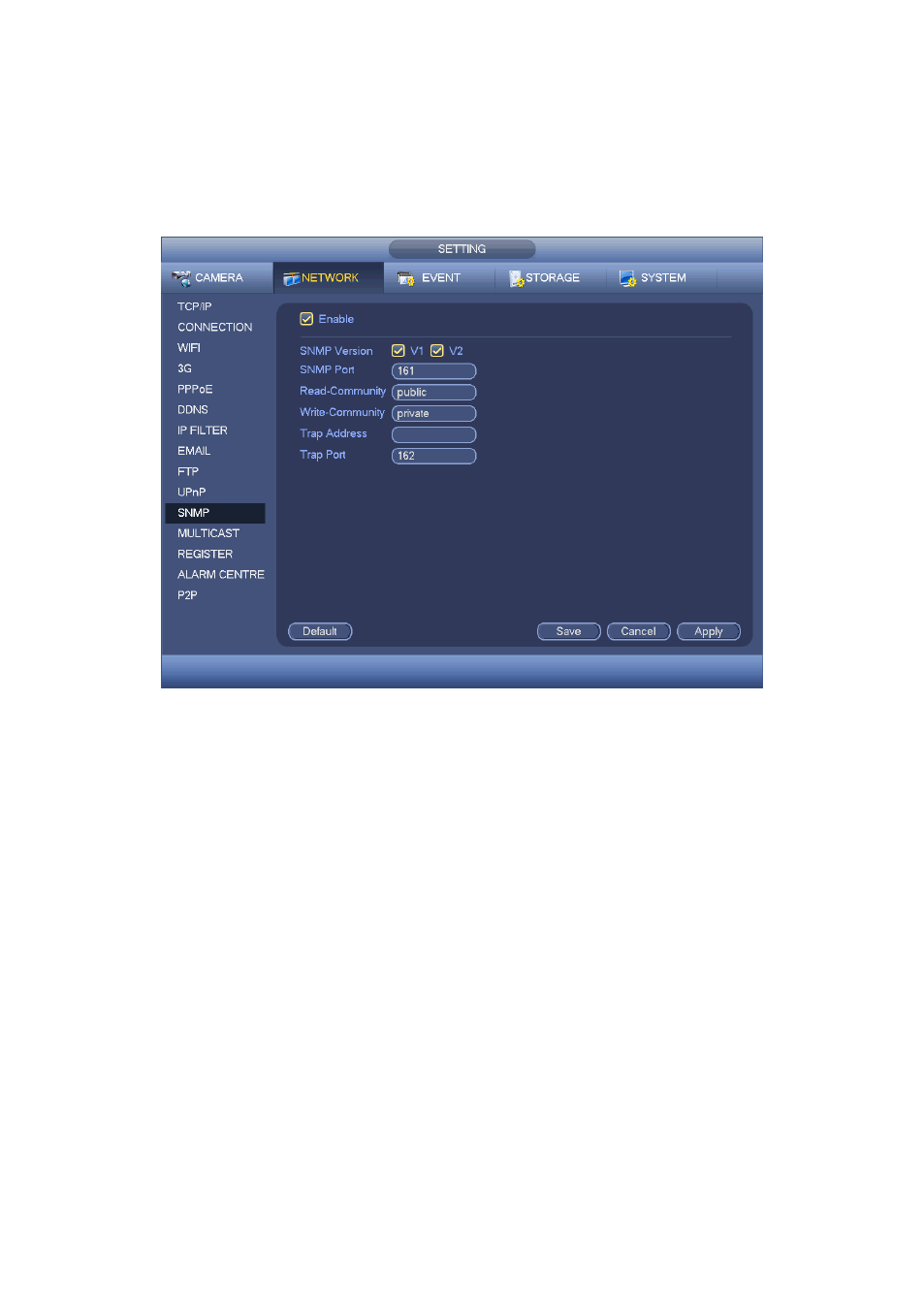

Figure 4-76
Please enable the SNMP function. Use the corresponding software tool (MIB Builder and
MG-SOFT MIB Browser. You still need two MIB file: BASE-SNMP- MIB, DVR-SNMP-MIB)
to connect to the device. You can get the device corresponding configuration information
after successfully connection.
Please follow the steps listed below to configure.
 In Figure 4-76, check the box to enable the SNMP function. Input the IP address of
the PC than is running the software in the Trap address. You can use default setup for
the rest items.
 Compile the above mentioned two MIB file via the software MIB Builder.
 Run MG-SOFT MIB Browser to load the file from the previous step to the software.
 Input the device IP you want to manage in the MG-SOFT MIB Browser. Please set
the corresponding version for your future reference.
 Open the tree list on the MG-SOFT MIB Browser; you can get the device
configuration. Here you can see the device has how many video channels, audio
channels, application version and etc.
Note
Port conflict occurs when SNM P port and Trap port are the same.
