Parameter Function
Data Bit Default setup is 8. Please set according to the speed dome dial switch
setup.
Stop bit Default setup is 1. Please set according to the speed dome dial switch
setup.
Parity Default setup is none. Please set according to the speed dome dial
switch setup.
5.8.5.5 ATM/POS
The ATM/POS function is for financial areas. It includes Sniffer, information analysis and
title overlay function. The Sniffer mode includes COM and network.
5.8.5.5.1 COM Type

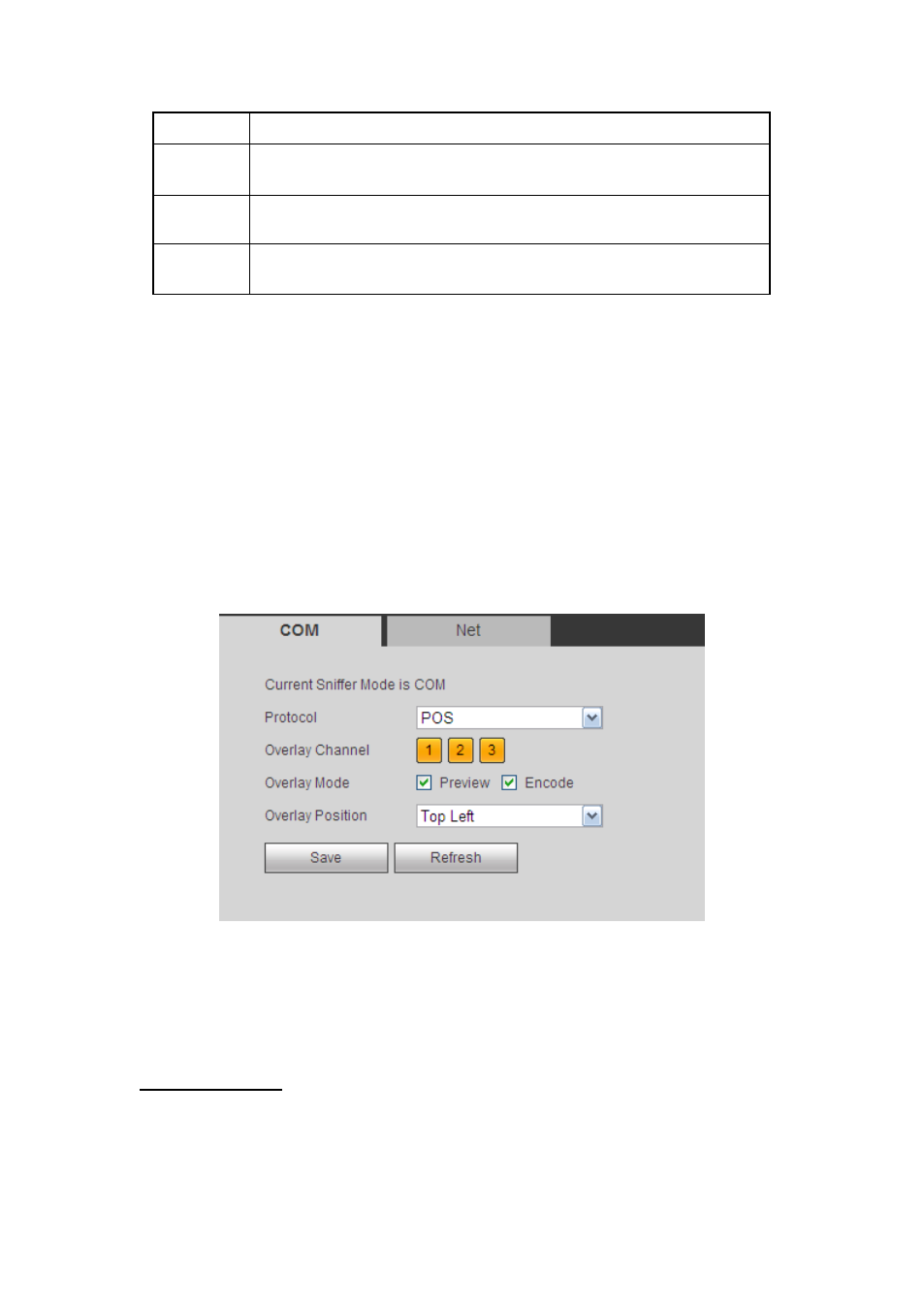

The COM interface is shown as below. See Figure 5-81.
 Protocol: Please select from the dropdown list according to your actual situation.
 Overlay channel: Please select the channel you want to overlay the card number.
 Overlay mode: There are two options: preview and encode. Preview means overlay
the card number in the local monitor video. Encode means overlay the card number
in the record file.
 Overlay Position: Here you can select the proper overlay position from the dropdown
list.
Figure 5-81
5.8.5.5.2 Network Type
The network type interface is shown as below. See Figure 5-82.
Here we take the ATM/POS protocol to continue.
There are two types: with or without the protocol according to client ’s requirements.
With the protocol
For ATM/POS with the protocol, you just need to set the source IP, destination IP
(sometimes you need to input corresponding port number).
