100
ENGLISH

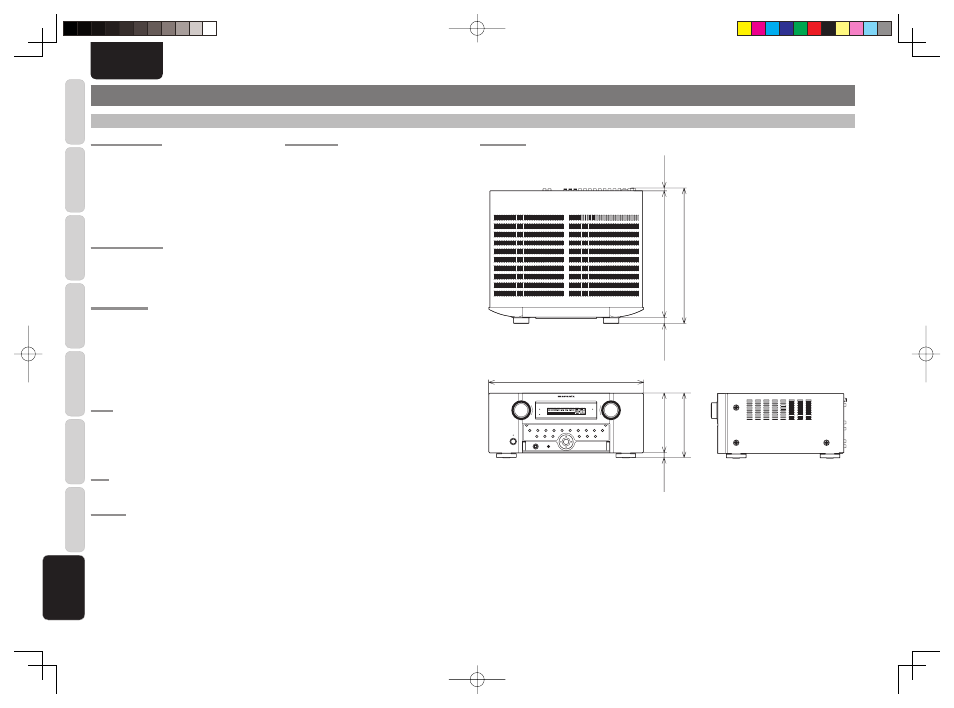

DIMENSIONS
TOP TOP
ZONE ZONE SPEAKER SPEAKER
DISPLAY DISPLAY INPUT INPUT 7.1CH 7.1CH DIRECT DIRECT PURE PURE
PHONES PHONES
THX THX M-DAX M-DAX
MODE MODE SURROUND SURROUND CLEAR CLEAR MEMORY MEMORY T-MODE T-MODE BAND BAND EXIT EXIT MENU MENU ZONE ZONE
ENTER ENTER
DOWN DOWN VOLUME VOLUME
UP UP
INPUT INPUT SELECTOR SELECTOR
AUTO AUTO
SETUP MIC SETUP MIC
HDMI HDMI
M-DAX M-DAX
PURE DIRECT PURE DIRECT
POWER ON/STANDBY POWER ON/STANDBY STANDBY STANDBY
AV PRE TUNER AV8003 AV PRE TUNER AV8003
7-5/16 ins
.
(184.5 mm)
9/16 ins
.
(14 mm)
6-3/4 ins
.
(170.5 mm)
17-5/16 ins. (440 mm)
11/16 ins
.
(17 mm)
15-3/16 ins
. (385 mm)
3/8 ins
.
(8 mm)
14-3/16 ins
. (360 mm)
FM TUNER SECTION
Frequency Range ................................ 87.5 – 107.9 MHz
Usable Sensitivity ............................IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio ................... Mono/Stereo 75/70 dB
Distortion ......................................Mono/Stereo 0.2/0.3 %
HD Radio .............................................................. 0.02 %
Stereo Separation .........................................1 kHz 45 dB
HD Radio ......................................................1 kHz 85 dB
Alternate Channel Selectivity .................± 400 kHz 60 dB
Image Rejection ......................................98.1 MHz 70 dB
Tuner Output Level ........... 1 kHz, ± 75 kHz Dev 800 mV
AM TUNER SECTION
Frequency Range ................................... 530 – 1710 kHz
Signal to Noise Ratio .............................................. 50 dB
Usable Sensitivity ......................................... Loop 500µV
Distortion ...................................400Hz, 30 % Mod. 0.5 %
Selectivity .................................................± 20 kHz 70 dB
AUDIO SECTION
Input Sensitivity/Impedance
(Unbalanced) .............................200 mV/ 47 k ohms
(Balanced) ..................................400 mV/ 30 k ohms
Output Level/Impedance
(Unbalanced) .................................... 1 V/ 470 ohms
(Balanced) ......................................... 2 V/ 470 ohms
Signal to Noise Ratio(Analog Input / Pure Direct) .... 105 dB
Frequency Response
(Analog Input / Pure Direct) .... 8 Hz – 100 kHz (± 3 dB)
(Digital Input / 96 kHz PCM) .... 8 Hz – 45 kHz (± 3 dB)
VIDEO
Television Format ....................................................NTSC
Input Level/Impedance ........................... 1 Vp-p/75 ohms
Output Level/Impedance ......................... 1 Vp-p/75 ohms
Video Frequency Response .......5 Hz to 8 MHz (– 1 dB)
Video Frequency (Component) ..5 Hz to 100 MHz (– 3 dB)
S/N .......................................................................... 60 dB
HDMI
Version .........................................................1.3a [INPUT]
.........................................................1.3a [OUTPUT]
GENERAL
Power Requirement ................................AC 120 V 60 Hz
Power Consumption ................................................ 85 W
Standby Power Consumption .................. (Normal) 1.0 W
......................................................(Economy) 0.7 W
Weight ...................................................................11.6 kg
Specifi cations subject to change without prior notice.
OTHERS
TECHNICAL SPECIFICATIONS
ACCESSORIES
Remote Controller RC2001 ........................................... 1
Remote Controller RC101 ............................................. 1
Microphone .................................................................... 1
AAA-size alkaline batteries ............................................ 4
AAA-size dry batteries ................................................... 2
FM Feeder Antenna ....................................................... 1
FM Antenna Converter ................................................... 1
AM Loop Antenna .......................................................... 1
AC cable ........................................................................ 1
USB cable ...................................................................... 1
