@1 ZONE REMOTE IN/OUT terminals
IN: Connect to a zone remote control device,
available from your Marantz dealer.
OUT: Connect to the Marantz component equipped
with remote control (RC-5) terminals in Multi
zone.
@2 REMOTE CONT. IN/OUT terminals
Connect to a Marantz component equipped with
remote control (RC-5) terminals.
@3 AUDIO IN/OUT (TV, DVD, VCR1,
DSS/VCR2, TAPE, CD/CDR)
These are the analog audio inputs and outputs.
There are 6 audio inputs and 4 audio outputs. The
audio jacks are nominally labeled for cassette tape
decks, compact disc players, DVD players and etc....
The audio inputs and outputs require RCA-type
connectors.
@4 DIGITAL INPUT (Dig.1 - 6) /
OUTPUT (coaxial, optical)
These are the digital audio inputs and outputs. There
are 3 digital inputs with coaxial jacks, 3 with optical
jacks.
The inputs accept digital audio signals from a CD,
DVD, or other digital source component.
For digital output, there is 1 coaxial output and 1
optical output.
The digital outputs can be connected to MD recorders,
CD recorders, or other similar components.
@5 VIDEO IN/OUT
(TV, DVD, VCR1, DSS/VCR2)
These are the video inputs and outputs. There
are 4 video inputs and 2 video outputs and each
one includes both composite video and S-video
confi gurations. Connect VCRs, DVD players, and
other video components to the video inputs.
The 2 video output channels can be used to be
connected to video tape recorders for making
recordings.
@6 HDMI INPUT / OUTPUT
This unit has 4 HDMI inputs and 2 HDMI output. The
input function can be selected from the OSD menu
system. (See page 24)
RC2001 LCD INDICATORS
A
B
C
D
A Mode display area
Home:
This is displayed during Home mode.
Device Name:
This displays the device mode name that is currently
active.
This area is always highlighted.
B Command display area
This displays the information that has been set for the
display items in the device modes.
C Battery indicator
This displays the remaining battery power.
D Sub info. Area
Normal operation:
The page number that has been set for the respective
mode is displayed.
When sending IR command:
The command name that has been set for the
respective button is highlighted.
Operation when not sending an IR command
(such as jump operation):
The operation name that has been set for the button
is displayed normally (not highlighted).

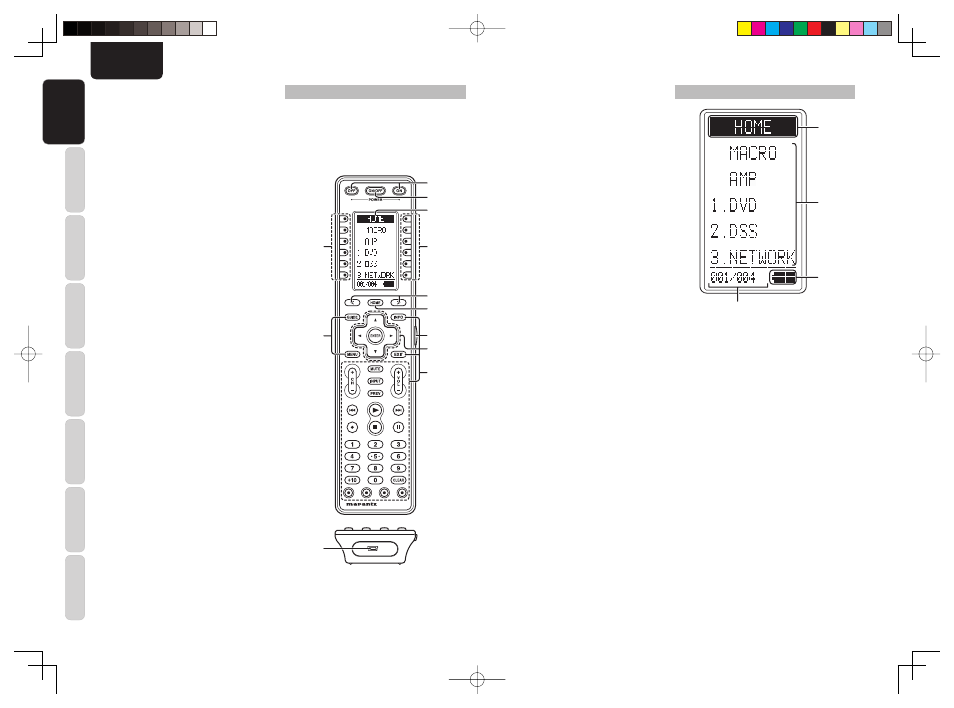

REMOTE CONTROLLER RC2001
The provided remote controller is a universal remote
controller. The POWER button, numeric buttons and
control buttons are used in common across different
input source components.
You can use the Wizz.it3 editing software to select
your favorite settings for the buttons and pages of the
remote controller.
z
x
c
v v
b
n
.
. m
,
⁄0
z POWER ON and OFF buttons
These buttons are used when controlling devices
that have been set with separately powered on and
off remote commands.
x SOURCE ON/OFF button
This button is used when controlling devices that
have been set with a single power on/off remote
command.
c LCD Display
Remote controller display
v Programmable soft buttons
These buttons are used by the Wizz.it 3 editor
software to make LCD display and button operation
settings.
These buttons are also used to adjust the number of
pages for each device.
b Page Scroll buttons
These buttons are used when scrolling pages in
Home mode and the device modes.
n Home button
This button is used to select Home mode.
To select a device that will be controlled, fi rst select
Home mode, then select the device.
m Light button
This button is used to turn on the backlight for the
buttons and LCD.
, Cursor, ENTER buttons
. Programmable Hard buttons
These buttons are used by the Wizz.it 3 editor
software to make the remote controller command
settings for learning and macro operations.
⁄0 USB port
This port is used to connect the remote controller and
a PC with the supplied USB cable to enable editing
with the Wizz.it 3 editor software.
