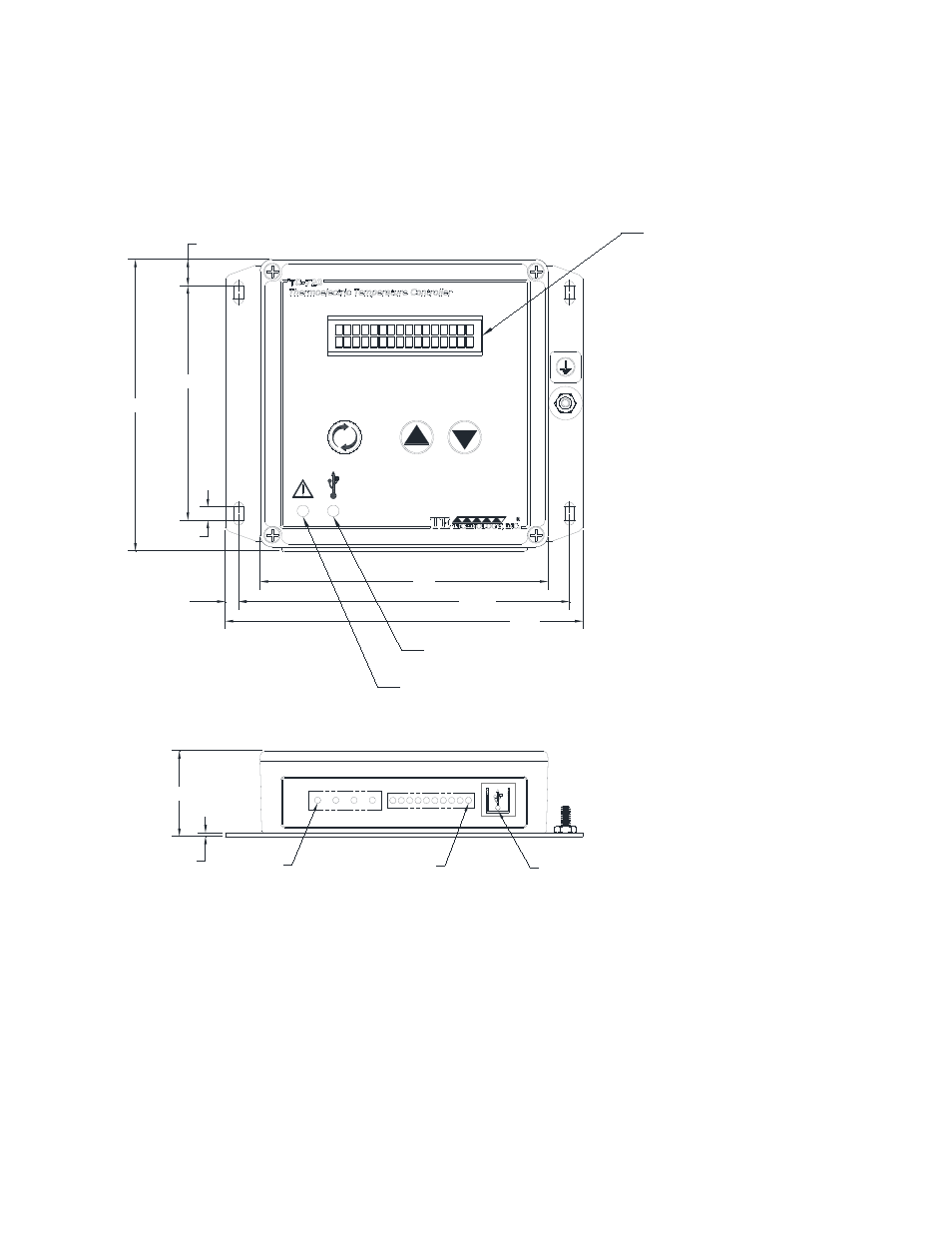

TC-720 Mechanical Package Drawing
149.1
137.85 5.64
97.92
121.67
11
5.61, TYP
120
35.8
1.5
LIQUID CRYSTAL DISPLAY
2X16 CHARACTERS
USB LED, WHITE
ALARM LED, ORANGE/GREEN
JP7
PIN 1
2 2 3 4 3 4 5 6 7 8 9 10
JP2
PIN 1
USB COMMUNICATION PORT
(JP3)
NOTE: All dimensions are in millimeters
