133
f.
Click Apply.
A configuration progress dialog box appears.
g.
After the configuration process is complete, click Close.

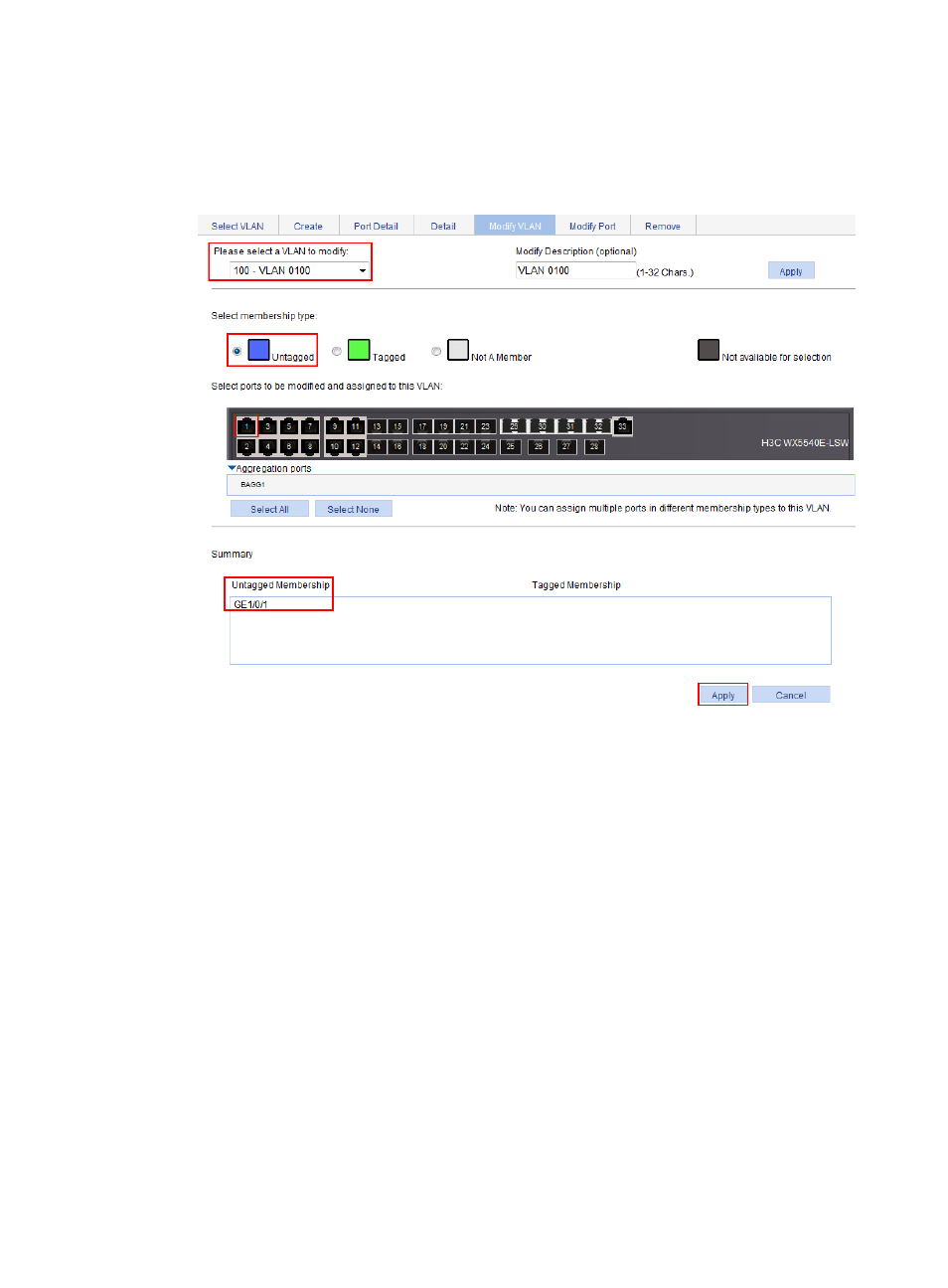

Figure 134 Assigning GigabitEthernet 1/0/1 to VLAN 100 as an untagged member
4.
Assign GigabitEthernet 1/0/1 to VLAN2, and VLAN 6 through VLAN 50 as a tagged member:
a.
Click Modify Port to enter the page for modifying the VLANs to which a port belongs.
b.
Select GigabitEthernet 1/0/1 on the chassis front device panel, select the Tagged option, and
enter VLAN IDs 2, 6-50.
c.
Click Apply.
A configuration progress dialog box appears.
d.
After the configuration process is complete, click Close in the dialog box.
