XL-FW10009UM-en-US Rev B · 2012-06-05 · Amendments and errors reserved. © SAF-HOLLAND, Inc. 3
English

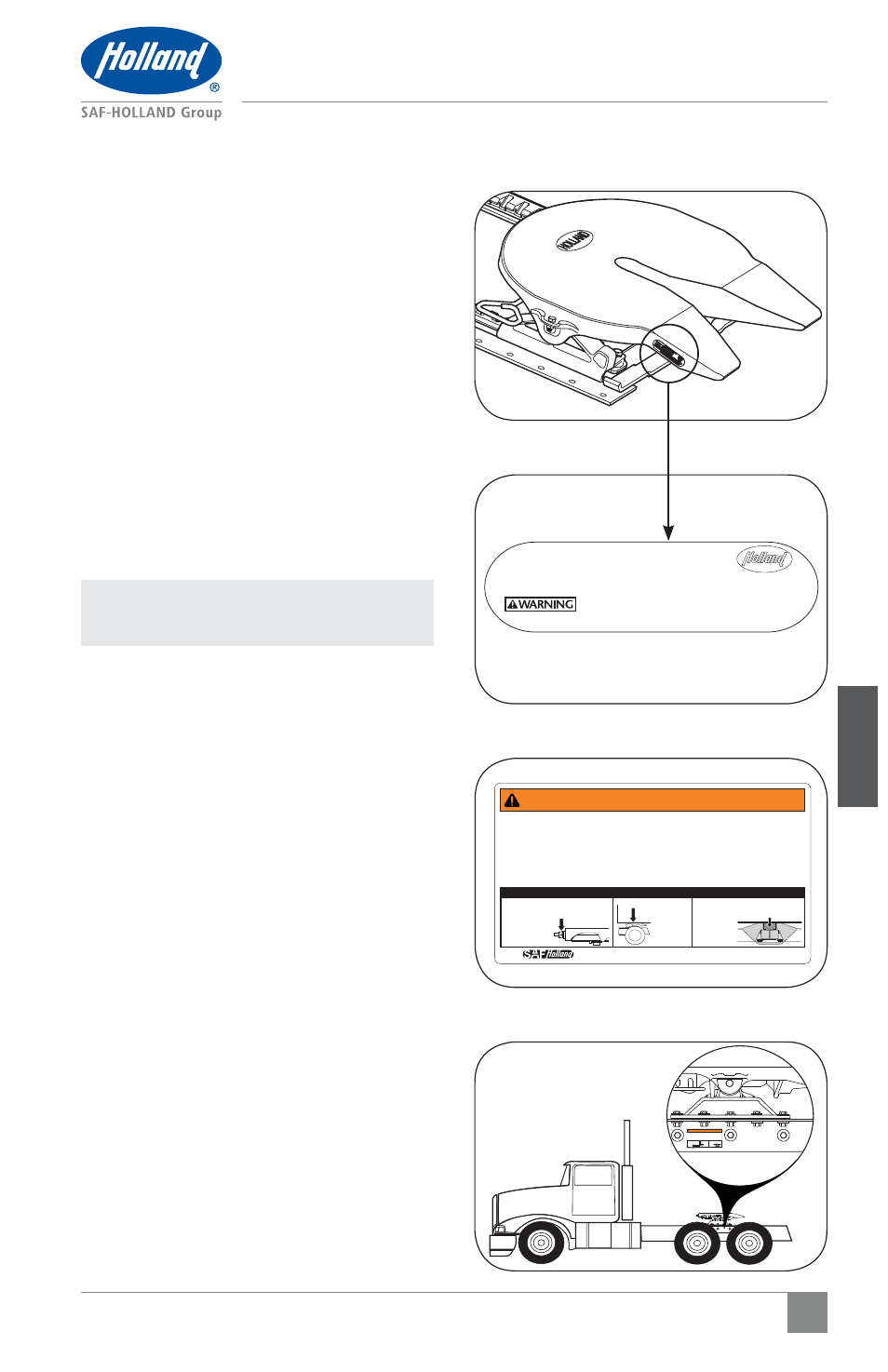

Figure 4
Figure 3
Figure 2
Figure 1
Model Identification
1. Model Identification
Fifth wheel serial tags are located on the left
side of the fifth wheel top plate above the
fifth wheel bracket pin, or on the pickup
ramps (Figure 1).
The part number and serial number are
listed on the tag (Figure 2).
2. Decal Requirements
Decal XL-FW350 (Figure 3) enclosed in
the plastic bag with the Owner’s Manual,
MUST be installed near the fifth wheel and
easily viewed by the operator. Place the
decal on a flat surface such as the frame
rail or on the back of the cab (Figure 4).
NOTE: Make sure surface is free of oil
and grease before applying decal.
It is the responsibility of the end user to
periodically inspect the decal and ensure
that it is clean and completely legible. If
the label is missing, loose, damaged or
difficult to read, contact SAF-HOLLAND
Customer Service at 888-396-6501 to
order replacements immediately.
U.S. AND FOREIGN PATENTS APPLY
Model No. XXXXXXXXXXXXXXXXXX
Serial No. XXXXXXXXXXXXXXXXXX
FAILURE TO PROPERLY INSTALL, MAINTAIN & OPERATE
THIS PRODUCT COULD RESULT IN TRACTOR TRAILER
SEPARATION CAUSING SERIOUS INJURY OR DEATH.
MADE IN
XXXXXX
2. No gap Sin separación Pas d’espacement
WARNING / ADVERTENCIA / AVERTISSEMENT ALWAYS inspect fifth wheel
after coupling tractor to trailer.
Failure to properly couple the
tractor and trailer could result in
tractor-trailer separation while in
use which, if not avoided, could
result in death or serious injury.
CORRECT COUPLING / ACOPLAMIENTO CORRECTO / ACCOUPLEMENT CORRECT 1. Nut and washer snug against fifth wheel. Tuerca y arandela ajustadas contra la quinta rueda. Écrou et rondelle serrés contre
la sellette.
3. Locks completely closed around kingpin. Seguros completamente cerrados alrededor del perno rey. Mâchoires complètement
fermées sur
le pivot.
SIEMPRE inspeccione la quinta
rueda después de acoplar el
tractocamión al remolque.
Si no acopla adecuadamente el
tractocamión y el remolque, podría
ocasionar la separación del
tractocamión y el remolque durante
el uso, lo cual, si no se evita, podría
causar muertes o lesiones graves. TOUJOURS contrôler la sellette
d’attelage après avoir accouplé
le tracteur à la remorque.
Un mauvais accouplement de la
remorque sur le tracteur peut résulter
en une séparation du tracteur et de la
remorque susceptible de provoquer
la mort ou des blessures graves.
 "
$

#



 !!!
2. No gap
Sin separación
Pas d’espacement
WARNING / ADVERTENCIA / AVERTISSEMENT
ALWAYS inspect fifth wheel
after coupling tractor to trailer.
Failure to properly couple the
tractor and trailer could result in
tractor-trailer separation while in
use which, if not avoided, could
result in death or serious injury.
CORRECT COUPLING / ACOPLAMIENTO CORRECTO / ACCOUPLEMENT CORRECT
1. Nut and washer snug against fifth wheel.
Tuerca y arandela ajustadas contra la
quinta rueda.
Écrou et rondelle
serrés contre
la sellette.
3. Locks completely closed around kingpin.
Seguros completamente cerrados alrededor
del perno rey.
Mâchoires
complètement
fermées sur
le pivot.
SIEMPRE inspeccione la quinta
rueda después de acoplar el
tractocamión al remolque.
Si no acopla adecuadamente el
tractocamión y el remolque, podría
ocasionar la separación del
tractocamión y el remolque durante
el uso, lo cual, si no se evita, podría
causar muertes o lesiones graves.
TOUJOURS contrôler la sellette
d’attelage après avoir accouplé
le tracteur à la remorque.
Un mauvais accouplement de la
remorque sur le tracteur peut résulter
en une séparation du tracteur et de la
remorque susceptible de provoquer
la mort ou des blessures graves.
