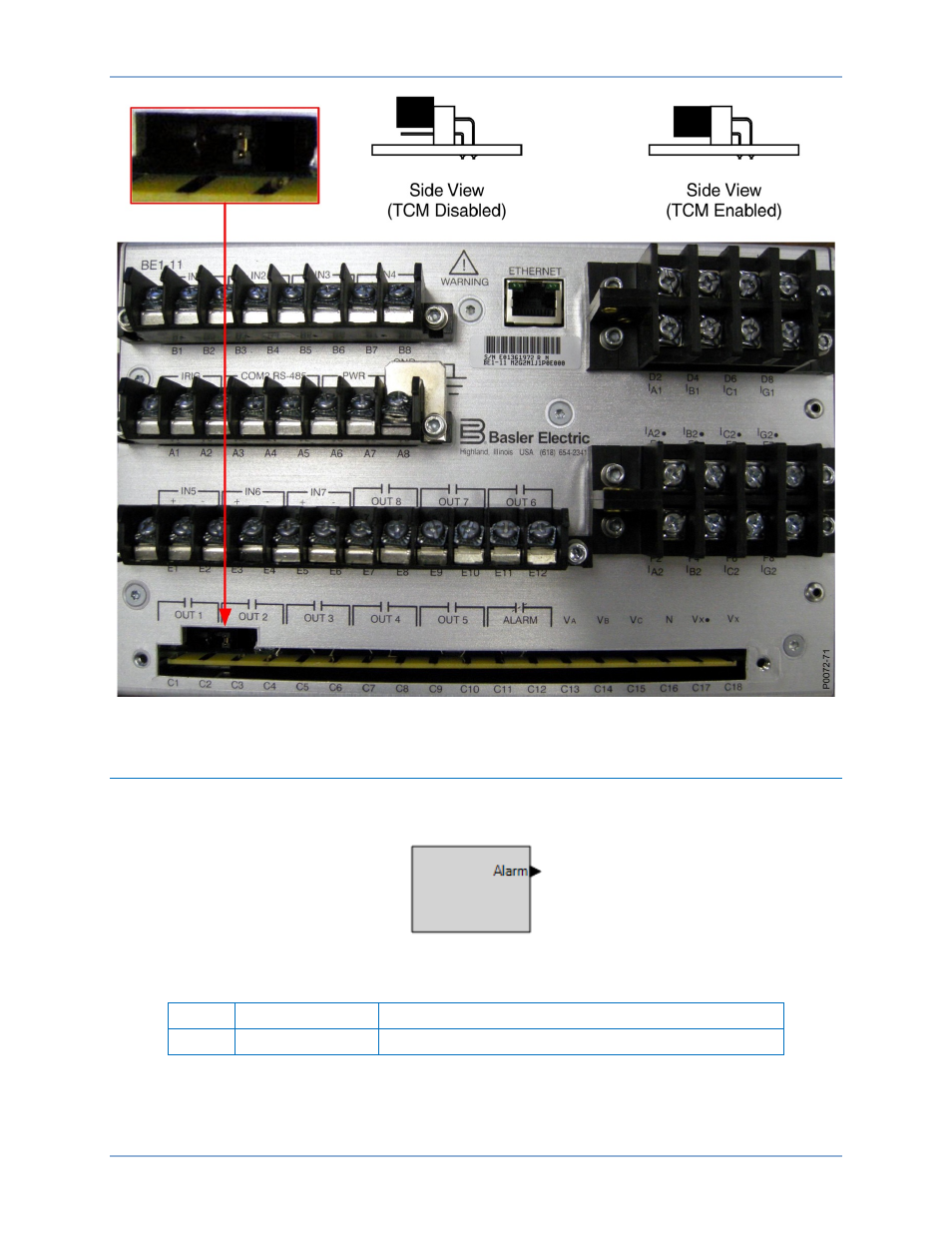

Figure 167. Trip Circuit Monitor Enable/Disable Jumper Location
Logic Connections
Trip circuit monitor logic connections are made on the BESTlogicPlus screen in BESTCOMSPlus. The trip
circuit monitor element logic block is illustrated in Figure 168. The logic output is summarized in Table 90.
Figure 168. Trip Circuit Monitor Element Logic Block
Table 90. Logic Output
Name Logic Function Purpose
Alarm Output True when voltage is not detected in the trip circuit
